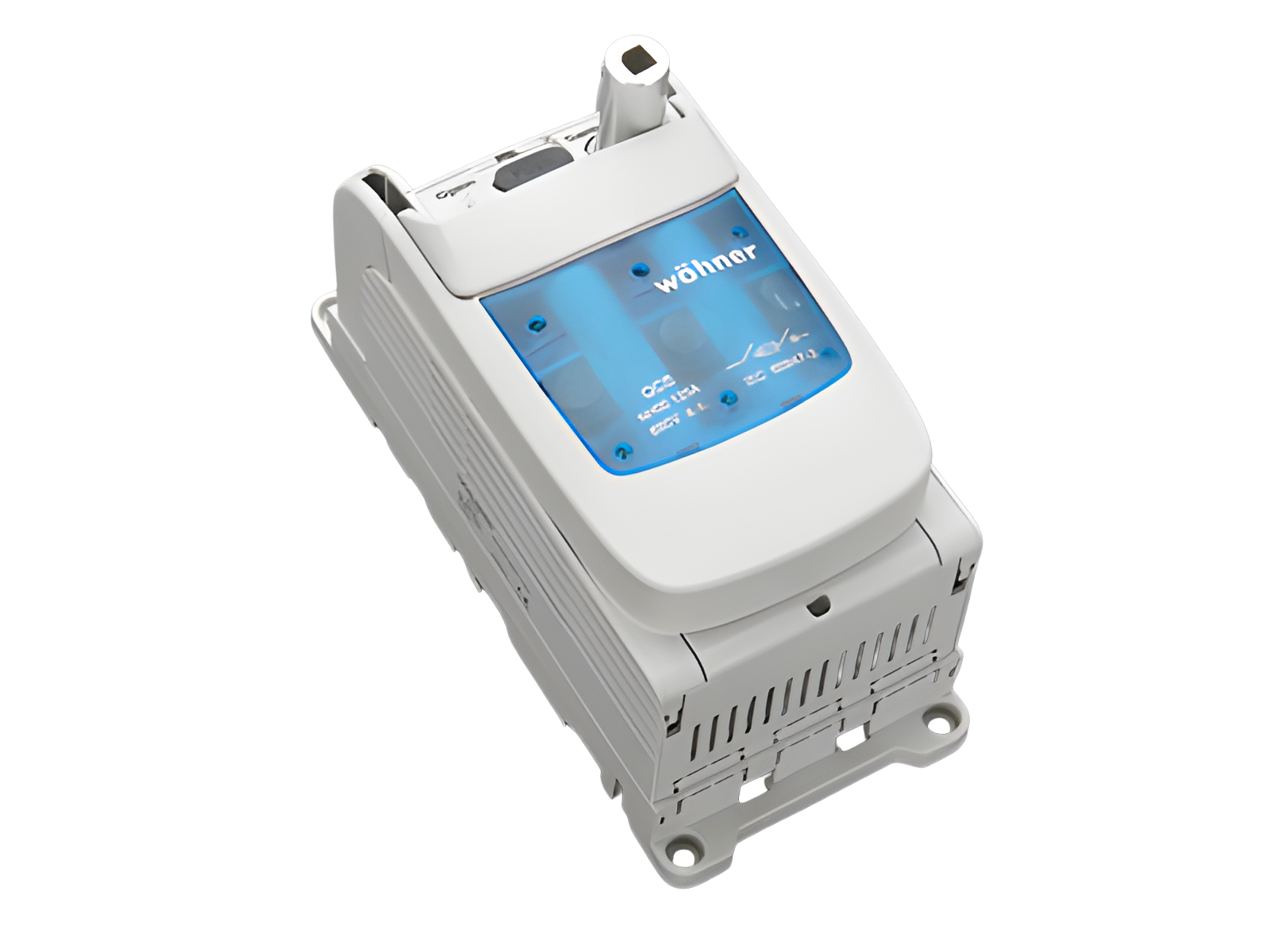

seccionador con fusibles, 3 polos (33505)

La imagen puede mostrar un producto similar.

Descripción

Part No.: 33505 000

QUADRON®Panel Speed

seccionador con fusibles, 3 polos

Size NH 00

borne-brida, para maneta giratoria de acoplamiento a puerta

talla 00

double-breaking

operator independent switching (snap-action mechanism)

for mounting plate

sistema

Panel

ventajas del producto

With spring-controlled switch mechanism for frequent switching as per utilisation category "A"
FLAG indicator shows the switch setting
Fuses can be changed safely and without tools thanks to double-breaking main contacts
Additional visible separating section by removing the cover incl. fuses
Can be used as mains disconnector as per IEC / EN 60204-1 (main switch)
Also as an Emergency Off switch in combination with the red-yellow door coupling twist handle
Main switch and Emergency Off only in combination with AC-23A/B

Switches can be installed 90° left/right horizontal, always with the same switch lug position

grupo de producto 15
subgrupo 03
embalaje 1
EAN 4021267335052
ECLASS 6.1 27371401
ECLASS 7.1 27371401
ETIM 4.0 EC001040
ETIM 5.0 EC001040

Homologaciónes

Normas

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

tipo: QCS-NH00

Datos técnicos

para fusibles de tamaño: NH 000, NH 00
fusibles según norma: IEC / HD 60269-2
potencia disipada del fusible permitida: 10 W
requirements for contact parts: Fuse links with silver-plated contact pieces recommended.
For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed.
datos IEC
Normas
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
datos electricos IEC
intensidad de corriente nominal (IEC): 125 A
tensión nominal (IEC) AC: 690 V
tensión nominal de aislamiento Ui AC: 800 V
tensión de pico Uimp: 8 kV
Utilisation category AC (IEC 60947-3) : AC-23B (690V/125A)
AC-23A (500V/125A)
AC-22A (690V/125A)
Utilisation category DC (IEC 60947-3) : 2 current paths (L1,L3) in series
DC-22B (220V/125A)

3 current paths in series
DC-22B (440V/63A)
corriente de cortocircuito condicional con fusibles (AC): 50 kA / 690 V (125A)
aprobado con fusibles de característica: gG
Special operating conditions corresponding to IEC / EN 61439-1 may yield to foulty activations of pilot switches and fuse monitors. The operating conditions have to be considered for the analysis of status signals.
When several devices are used side-by-side in continuous operation, the rated load factor specified in VDE 0660 Part 500 / EN 60 439-1, Table 1, must be observed.
datos mecánicos
An x A x P: 106 x 233 x 153
peso: 201.6 kg/100
Polaridad: 3 polos
Mounting: for mounting plate
puntos de apriete
cage clamp connection
screw drive: S4
wire stripping: 20 mm
min. cross-section: 1.5 mm²
max. cross-section: 70 mm²
re: 1.5 - 10 mm²
f: 1.5 - 70 mm²
f + AE: 1.5 - 70 mm²
(f + AE may not fit with max. cross-section)
Md min.: 5.0 Nm
Md max.: 6.0 Nm
Not suitable for aluminium cables !
Espacio de apriete: 13x13
lam. Cu width: 9 - 13 mm
lam. Cu thickness: 1 - 10 mm

Application notes

Not suitable for aluminium cables !
potencia disipada del fusible permitida: 10 W
requirements for contact parts: Fuse links with silver-plated contact pieces recommended.
For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed.

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

CAD Daten WSCAD

Downloads

| General technical information

| Mounting instructions

| CAD model 3D PDF

| CAD model 3D STP

| CAD symbol 2D DXF

| Data packet EPlan (*.edz)

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Accesorios

connection accessories

33914 000
borne de conexión de 120 mm²
conexión frontal
para: QCS-NH00, QCS-160
Mas

33915 000
conector para cable auxiliar, para borne-brida
conductor plano EN 61210  6,3 x 0,8
para: QCB-NH00, QCS-NH00, QCS-160
Mas

further accessories

33908 000
interruptor de señalización para controlar el estado de conmutación
conmutador 250 V AC / 5 A, 30 V DC / 4 A
para: QCS-NH00, QCS-NH1, QCS-160, QCS-320
Mas

33910 000
actuador giratorio de acoplamiento a puerta
negra, con maneta
bloqueo de puerta puede ser activado, para candados
para: QCS-NH00, QCS-NH1, QCS-160, QCS-320
Mas

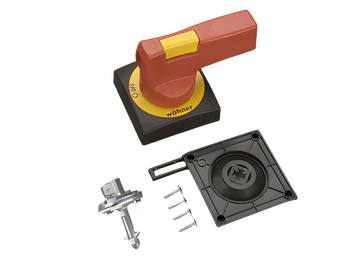

33911 000
actuador giratorio de acoplamiento a puerta
roja-amarillo, con maneta
bloqueo de puerta puede ser activado, para candados
para: QCS-NH00, QCS-NH1, QCS-160, QCS-320
Mas

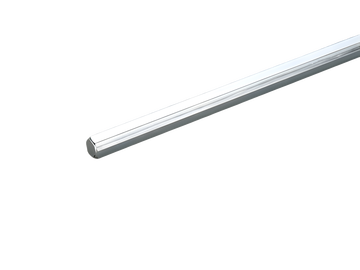

33912 000
eje de prolongación, 290 mm de longitud
para: QCS-NH00, QCS-NH1, QCS-160, QCS-320, CP-PV
Mas

33913 000
eje de prolongación, 490 mm de longitud
para: QCS-NH00, QCS-NH1, QCS-160, QCS-320, CP-PV
Mas
