fuse link 175 A (03221)

The picture may show a similar product.

Description

Part No.: 03221 000

fuse link 175 A

Size Class J 200 A

-Mersen-

600 V AC, fast acting

Class J, 200 A frame

Product group	22
Subgroup	34

pack size	1
EAN	4021267032210

ECLASS 6.1	27142002
ECLASS 7.1	27142002
ETIM 4.0	EC002704
ETIM 5.0	EC002704

Approvals

Standards

UL 248-8

UL 248-1

Approvals

CSA , UL

type number: A4J

UL file: E2137, UL category (for USA): JDDZ_ https://www.ul.com

CSA file: 12636, CSA class: 1422-02_ https://directories.csa-international.org

Technical data

size:

Class J 200 A

Details IEC
Standards

operation class

fast acting

Details UL
Standards
UL 248-8 UL 248-1

Electrical data UL
rated current (UL):	175 A
rated voltage (UL) AC:	600 V
rated frequency (UL):	50 / 60 Hz
rated voltage (UL) DC:	300 V

SCCR:	200 kA
SCCR:	DC 100 kA

Mechanical data
W x H x D:	41 x 146 x 41
weight:	38.5 kg/100

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

CAD Daten WSCAD

Downloads

| General technical information

| Data packet EPlan (*.edz)

| Characteristics

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Usage

33307 000

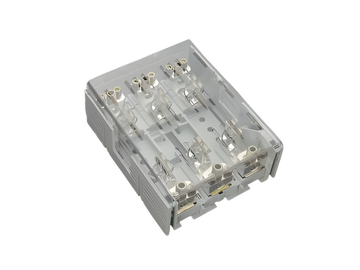

QUADRON^®Panel
holder for cylindrical fuses
Size Class J 200 A
Class J / 3P, terminal 150 mm²
200 A / 600 V (41x146)
for mounting plate
More

https://pim.woehner.de/EN/US/1000050574
