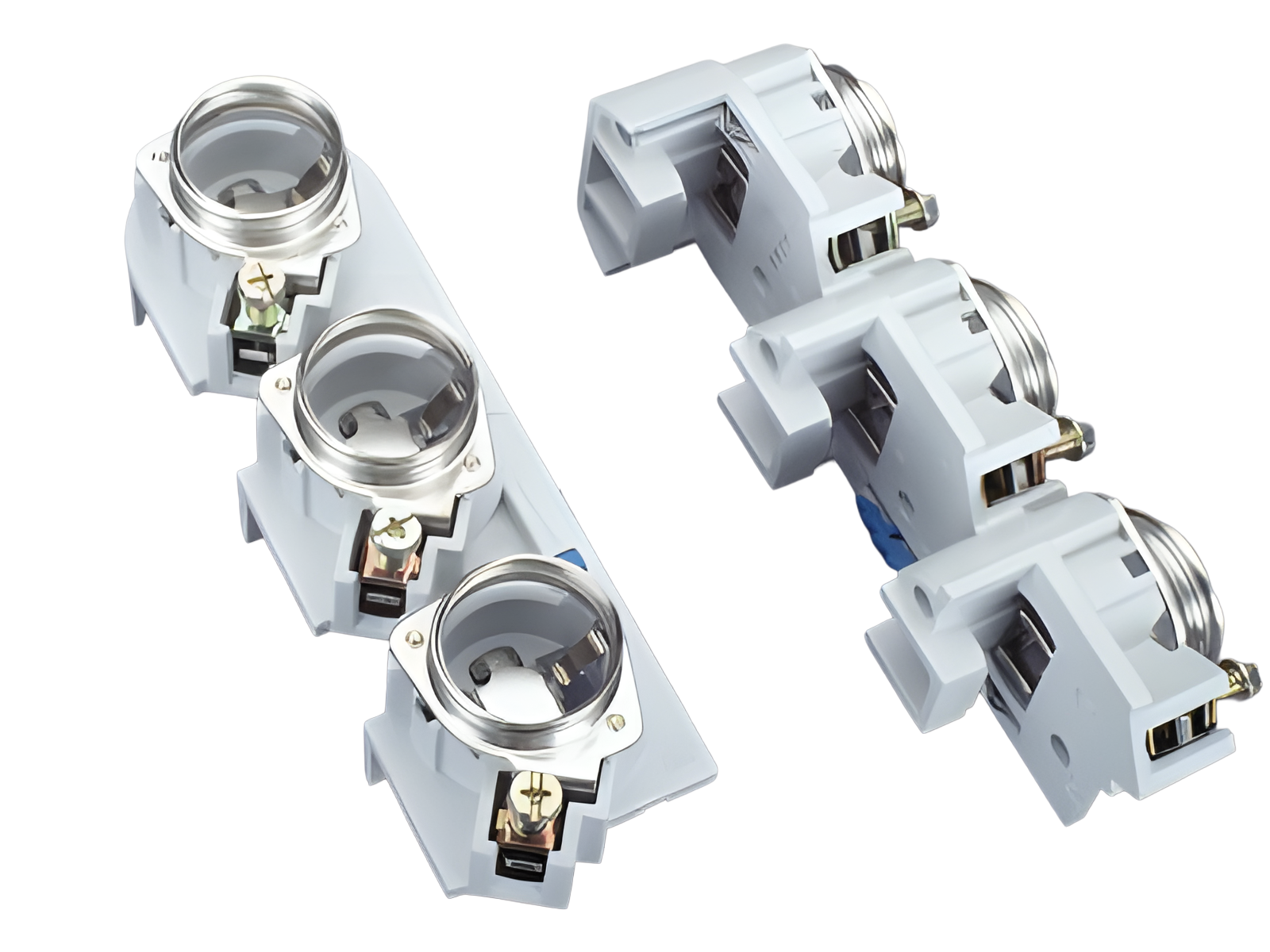

D-fuse base, busbar mounted, 57mm (31409)

The picture may show a similar product.

Description

Part No.: 31409000

CUSTO^®60Classic

D-fuse base, busbar mounted, 57mm

for busbar 10 mm, gauge ring

E 33 / 3P

for busbars 12, 15, 20, 25, 30 x 10 and section busbars

System

60Classic

Product group	01
Subgroup	24

pack size	10
EAN	4021267314095

ECLASS 6.1	27142103
ECLASS 7.1	27142103
ETIM 4.0	EC000094
ETIM 5.0	EC000094

Approvals

Standards

IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-3:2010 + A1:2013 + A2:2019

Approvals

DNV GL

Technical data

fuse links acc. to standard:	IEC / HD 60269-3
permitted power dissipation of the fuse-link:	7 W

Details IEC
Standards
IEC 60269-1:2006 + A1:2009 + A2:2014 IEC 60269-3:2010 + A1:2013 + A2:2019

Electrical data IEC
rated current (IEC):	63 A
rated voltage (IEC) AC:	500 V

rated voltage (IEC) DC:

500 V

rated surge voltage U_imp :

4 kV

approved wth fuse links of operation class:	gG
short-circuit strength when protected by fuses:	50 kA

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 6.4 W.

(The power dissipation at full load would be 10.0 W.)

Supplementary data IEC
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel.

max. permitted voltage (IEC) AC:	725 V
max. permitted voltage (IEC) DC:	630 V

Contacting of the fuse links on the busbar via silvered copper plate
for fuse links and gauge rings as per DIN VDE 0636-3 IEC / HD 60269-3
as per DIN VDE 0636 Part 3011, also 690V

Mechanical data
W x H x D:	57 x 200 x 43
weight:	31.6 kg/100
poles:	3-pole
for busbars:	12, 15, 20, 25, 30 x 10 and section busbars

Type of fastening: Click mechanism protects against movement Contact pressure provided by screw cap Tightening torque of box terminals 3 Nm

Terminal points
Not suitable for aluminium cables !

Application notes

There must be a clearance of at least 10 mm above the article to remove it from the busbar system.
Not suitable for aluminium cables !

permitted power dissipation of the fuse-link:	7 W
