measuring transformers 150 A / 333 mV (33290)

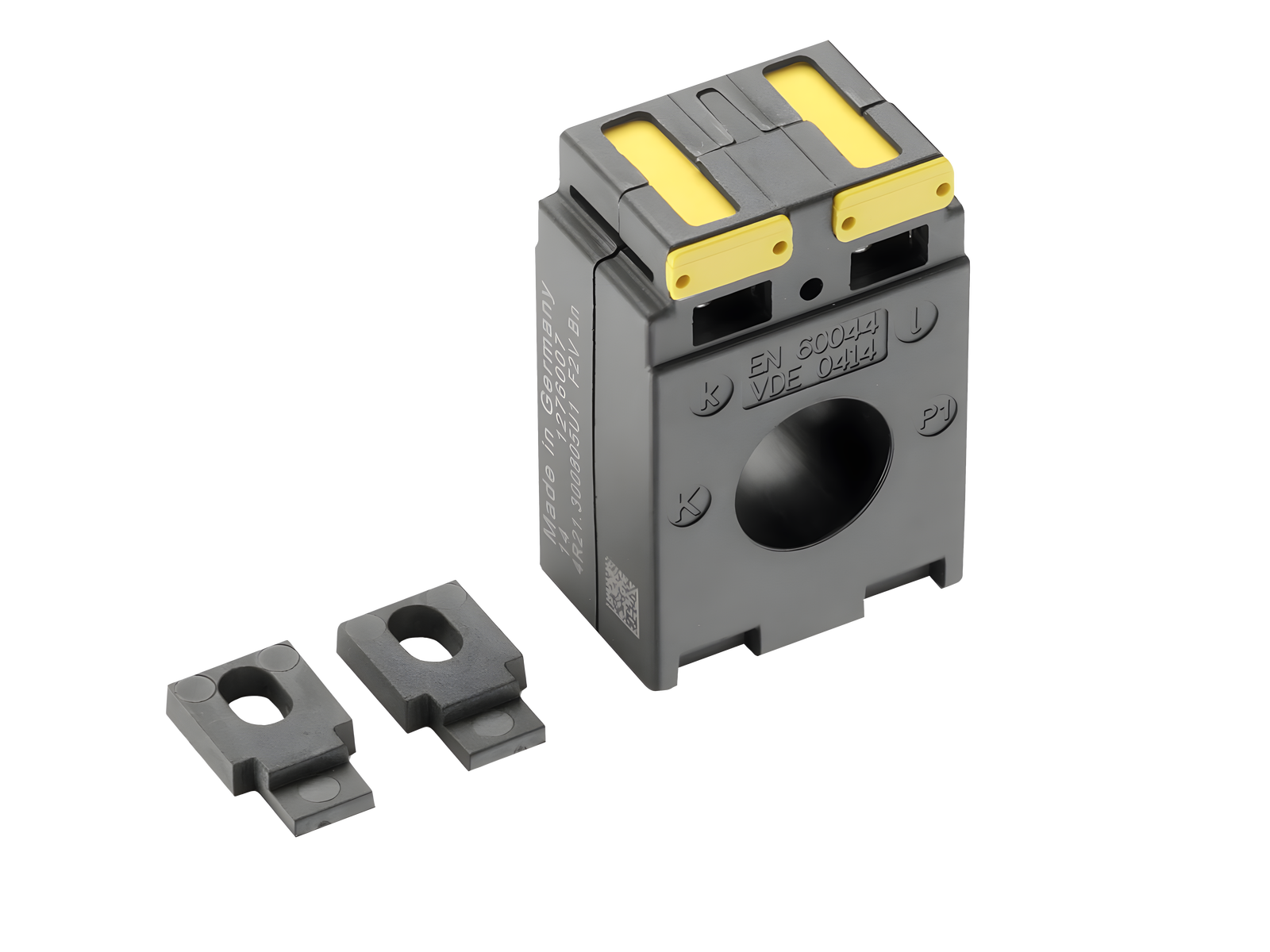

The picture may show a similar product.

Description

Part No.: 33290000A

measuring transformers 150 A / 333 mV

2.5 VA / class 0.5

size 00

coming soon

System

185Power

Product group 23
Subgroup 24
pack size 1
EAN 4021267332907
ECLASS 6.1 27210902
ECLASS 7.1 27210902
ETIM 4.0 EC002048
ETIM 5.0 EC002048

Approvals

Standards

IEC 61869-1:2007
IEC 61869-2:2012

CCC approval: no certification required

Technical data

size: CT3
Details IEC
Standards
IEC 61869-1:2007
IEC 61869-2:2012
Electrical data IEC
prim. rated current Ipr: 150 A
sec. rated voltage: 333 mV
burden: 2 kOhm
accuracy class (current): 0.5
max. operation voltage Um: 720 V
therm. short-time current Ith: 9 kA
class of insulation: E
over-current limitation factor: FS5
Mechanical data
W x H x D: 44 x 30 x 66
weight: 14,0 kg/100
CT can be integrated in the device: ja
CT can be integrated in the CT module: nein
sealable: nein
Terminal points
double terminal
min. cross-section: 2,5 mm²
max. cross-section: 4 mm²
Not suitable for aluminium cables !

Application notes

Not suitable for aluminium cables !

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| CAD model 3D PDF

| CAD model 3D STP

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF) - draft

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf) - draft

| Text for specification - standard version (*.rtf) - draft

| Text for specification - GAEB90 (in German) (*.d81)
