changeover switch 3-pole + N (23124)

The picture may show a similar product.

Description

Part No.: 23124 000AD

CAPUS®Panel

changeover switch 3-pole + N

screw M10

400 A

N on right side

for mounting plate

BB32-400/3+N

System

Panel

Product group 14
Subgroup 36
pack size 1
EAN 4021267231248
ECLASS 6.1 27371403
ECLASS 7.1 27371403
ETIM 4.0 EC000216
ETIM 5.0 EC001040

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

type number: BB32-400/3P+N

Technical data

size: 2
Details IEC
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Electrical data IEC
rated current (IEC): 400 A
rated voltage (IEC) AC: 690 V
rated isolation voltage Ui AC: 1000 V
rated surge voltage Uimp : 8 kV
rated short-time withstand current Icw (0.3 s) max.: 12 kA
rated making capacity: 10 kA

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 243,2 W.

(The power dissipation at full load would be 380,0 W.)

Gebrauchskategorien siehe Datenblatt (unter Downloads)
Mechanical data
W x H x D: 249 x 165 x 246
weight: 470,0 kg/100
poles: 3-pole+N
Mounting: for mounting plate

N is switched leading when switched on, lagging when switched off

Application notes

passes Null when reversing

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

CAD Daten WSCAD

Downloads

| General technical information

| Mounting instructions

| CAD model 3D PDF

| CAD model 3D STP

| CAD symbol 2D DXF

| Dimensioned drawing

| Dimensioned drawing  #2

| Data sheet

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Accessories

accessories for mounting

23945 000AD
CAPUS®Panel
connection bridge
for: BB32 400 A 3P+N
More

connection accessories

23926 000AD
connection terminal
1x 95 - 240 mm²
for: S32 400 A
More

23927 000AD
connection terminal
2x 50 - 95 mm²
for: S32 400 A
More

covers

23936 000AD
CAPUS®Panel
connection space cover
for covering all connections, dark grey
for: BB32 250 A / 400 A
More

further accessories

23933 000AD
CAPUS®Panel
door coupling rotary drive
graphite grey, without handle
with door interlock, for padlocks
for: BB32 250 A / 400 A
More

23921 000AD
pilot switch
1 n/c + 1 n/o, plug connectors 6.3 x 0.8
for: S32 250 A / 400 A / 630 A / 1000 A / 1250 A / 1600 A / 2500 A / 3150 A
More

23923 000AD
extension shaft, 300 mm long
for: S32 250 A / 400 A
More

33380 000
extension shaft, 550 mm long
LTS-250/400/630, LTS-F 160/250/400
for: LTS-250/400/630, LTS-F 160/250/400
More

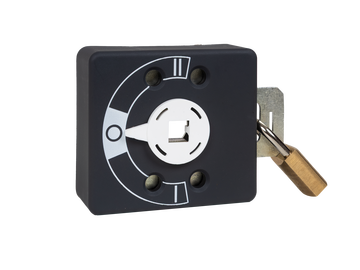

23958 000AD
CAPUS®Panel
locking device for direct drive
for: S32-2
NEW
More
