Part No.: 36101000B

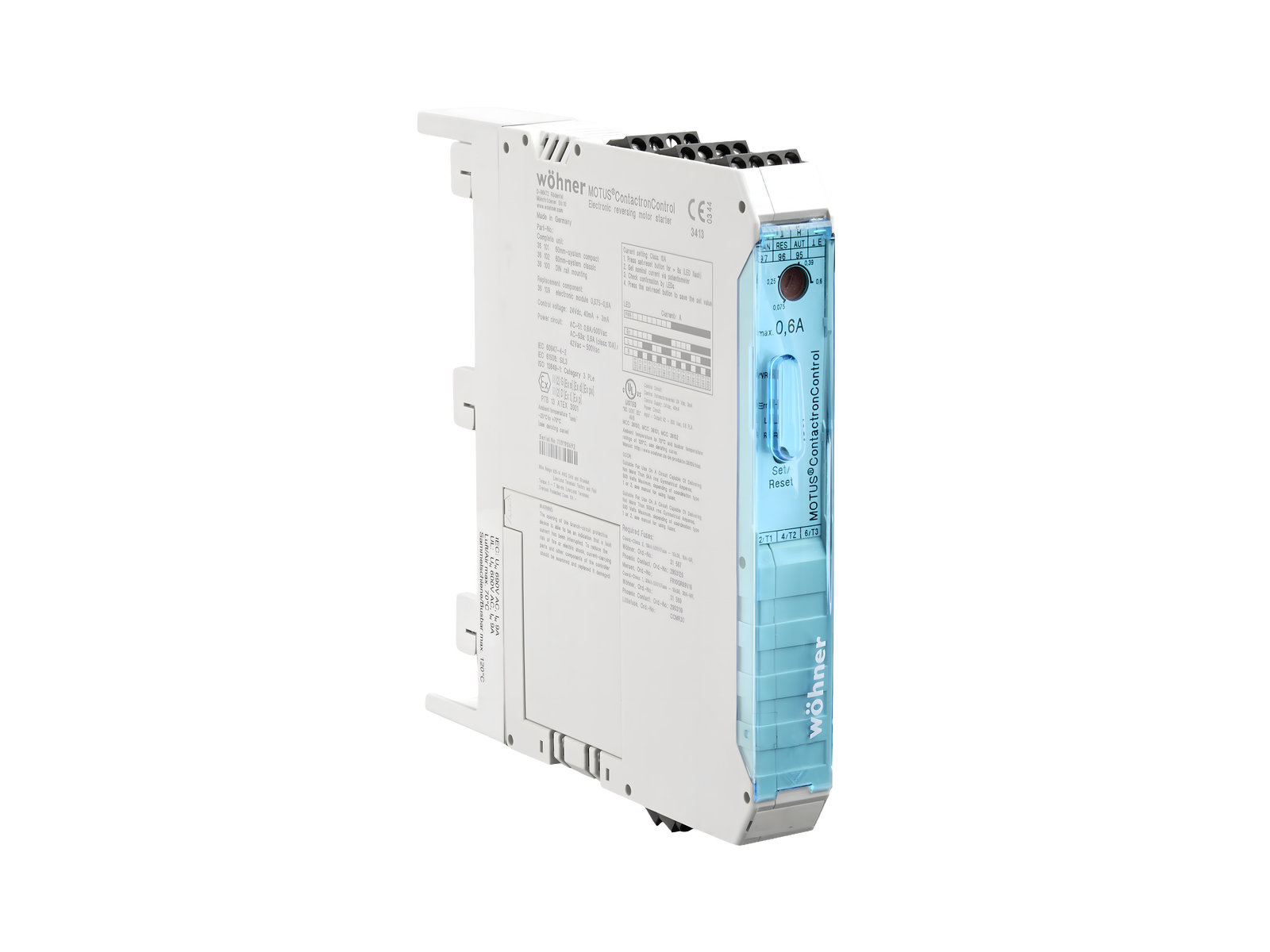

MOTUS®30Compact
hybrid motor starter, 3-pole
direct and reversing starter 0.075 - 0.6 A / switch for resistive loads 0.075 - 0.6 A
for busbars 12 x 5, 10
with CrossLink®Technology
System
30Compact 3P
Advantages of the product
4 functions integrated:
Right contactor
Left contactor
Motor protection relay
EMERGENCY STOP protection up to category 3
Installed width only 22.5mm
30 million electrical switching operations
| Product group | 21 |
| Subgroup | 06 |
| pack size | 1 |
| EAN | 4021267361013 |
| ECLASS 6.1 | 27370804 |
| ECLASS 7.1 | 27370804 |
| ETIM 4.0 | EC001037 |
| ETIM 5.0 | EC001037 |
Standards
EN 60947-1:2015
EN 60947-4-2:2012
EN 61439-1:2012
EN 50581:2012
EN ISO 13849-1:2015
UL 60947-1
Approvals
UL , CCC , Atex
for UL feeder circuits >250V
type number: 36109.1
UL file: E360470, UL category (for USA): NLDX https://www.ul.com
UL file: E360470, UL category (for Canada): NLDX7 https://www.ul.com
CCC certificate: 2019010304252617
Type-Examination Certificate: PTB13AT3001
| Details IEC | |
| Standards | |
|
EN 60947-1:2015 EN 60947-4-2:2012 EN 61439-1:2012 EN 50581:2012 EN ISO 13849-1:2015 |
| Electrical data IEC | |
| Rated current (IEC): | 0.6 A |
| rated voltage (IEC) AC: | 500 V |
| min. operating voltage AC: | 42 V |
| trigger characteristic: | Class 10A |
| set nominal current: | Yes |
| min. load current: | 0.075 A |
| max. switching frequency: | 2 Hz |
| switching cycles: | 30.000.000 |
| safety level: | SIL3 |
| reply contact: | 1 CO |
| rated frequency (IEC): | 50 / 60 Hz |
| rated isolation voltage Ui AC: | 500 V |
| rated surge voltage Uimp : | 6 kV |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 1,8 W.
(The power dissipation at full load would be 2,8 W.)
| Details UL | |
| Standards | |
| UL 60947-1 |
| for UL feeder circuits >250V |
| Electrical data UL | |
| rated current (UL): | 0.6 A |
| rated voltage (UL) AC: | 500 V |
| min. operating voltage AC: | 42 V |
| rated frequency (UL): | 50 / 60 Hz |
| SCCR unprotected max.: | 5 kA |
| 3 cycles (without OPD) @ 600 V AC | |
| SCCR protected max.: | 100 kA |
| SCCR: | 100 kA with JDDZ fuse Class J 175 A / 600 V AC |
| Mechanical data | |
| W x H x D: | 22.5 x 160 x 156 |
| weight: | 55,3 kg/100 |
| poles: | 3-pole |
| for busbars: | 12 x 5, 10 |
| degree of protection: | IP20 |
| vertical installation position: | Yes |
| horizontal installation position: | No |
| Terminal points | |
| screw clamp connection | |
| screw drive: | 0,8x4 |
| wire stripping: | 8 mm |
| min. cross-section: | 0,2 mm² |
| max. cross-section: | 2,5 mm² |
| Md min.: | 0,5 Nm |
| Md max.: | 0,6 Nm |
| min. cross-section UL: | AWG 24 |
| max. cross-section UL: | AWG14 |
| torque (UL): | 4,4 - 5,3 lb-in |
|
Screw terminals (solid round, flexible, flexible with wire-end ferrule) |
|
| permitted degree of polution: | 2 |
| for UL feeder circuits >250V | |
