box terminal (33736)

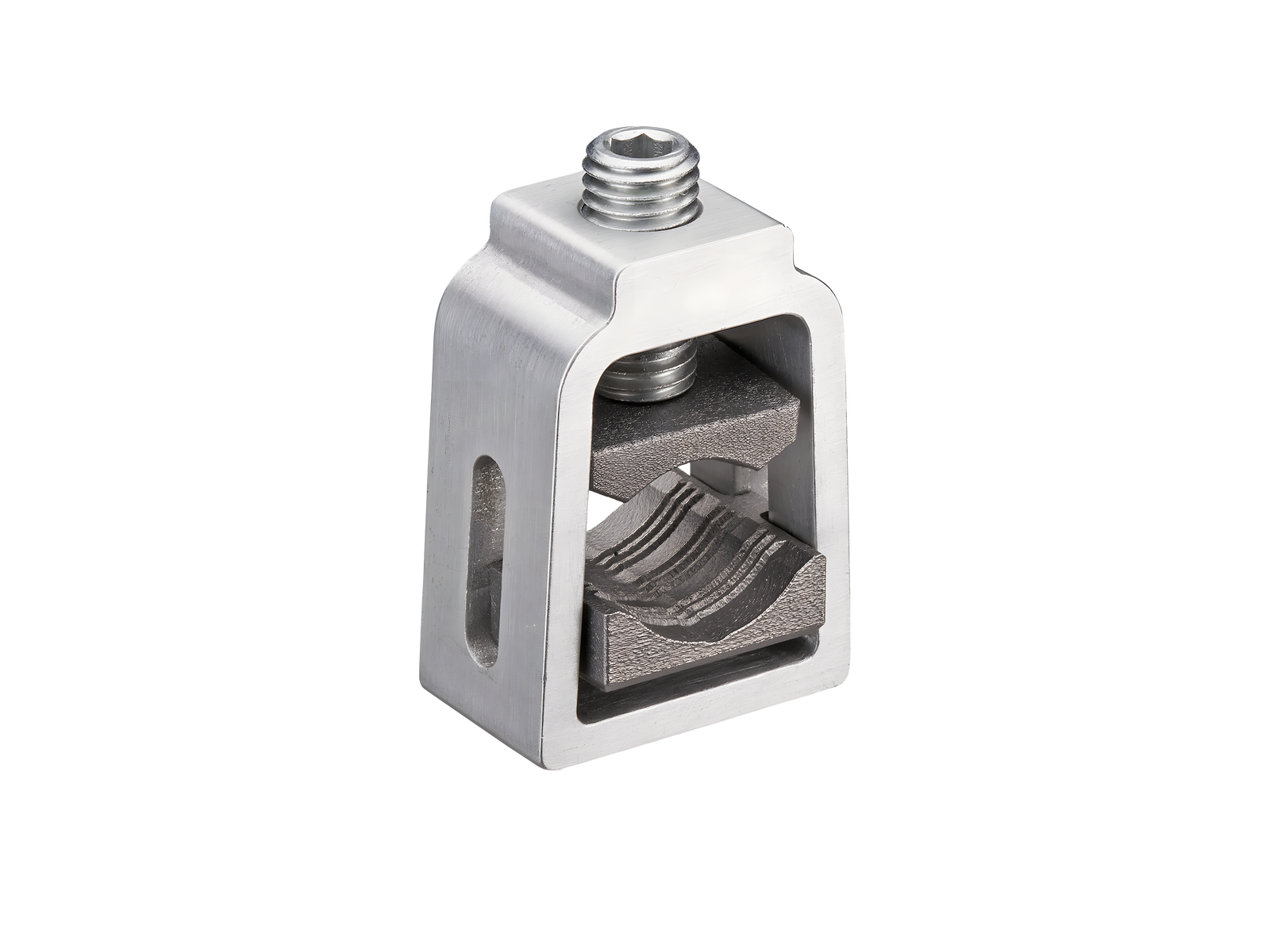

The picture may show a similar product.

Description

Part No.: 33736000A

box terminal

für Cu / Al 120 - 300 mm²

size 1-3

System

185Power

Product group 12
Subgroup 70
pack size 3
EAN 4021267337360
ECLASS 6.1 27142190
ECLASS 7.1 27142190
ETIM 4.0 EC002498
ETIM 5.0 EC002498

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Technical data

Details IEC
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Electrical data

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 0,0 W.

(The power dissipation at full load would be 0,0 W.)

Mechanical data
weight: 25,5 kg/100

Cu/Al
1x150mm²-300mm² sm
1x185mm²-300mm² se
1x120mm²-300mm² rm

Terminal points
min. cross-section: 120 mm²
max. cross-section: 300 mm²

Application notes

short-circuit withstandability: determined by main product
