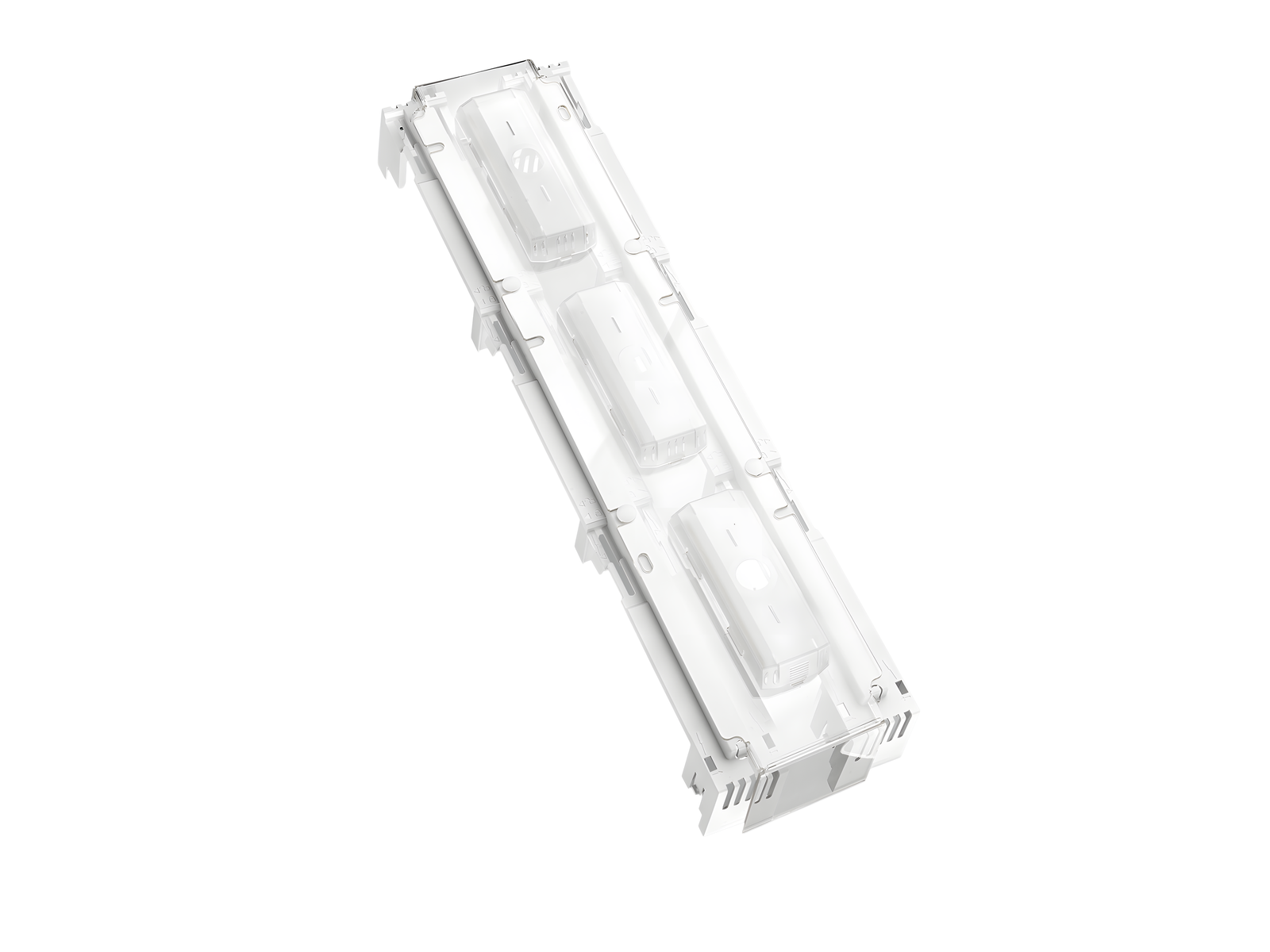

The picture may show a similar product.
Part No.: 01482000A
touch-safe protection shroud for longitudinal connectors
3-pole, front and rear mounting, cover width 115 mm
mounting to 2 busbar supports 01430 with a center distance of 100 mm
for busbars 30, 40, 60, 80, 100, 120 x 10
System
185Power
| Product group | 06 |
| Subgroup | 27 |
| pack size | 1 |
| EAN | 4021267014827 |
| ECLASS 6.1 | 27370390 |
| ECLASS 7.1 | 27370390 |
| ETIM 4.0 | EC002498 |
| ETIM 5.0 | EC002848 |
Standards
IEC 61439-1:2020
IEC 60999-1:1999
IEC 60999-2:2003
UL 508
Approvals
UL
for UL feeder circuits >250V
type number: C185-C
UL file: E123577, UL category (for USA): NMTR https://www.ul.com
UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
CCC approval: no certification required
| Details IEC | |
| Standards | |
|
IEC 61439-1:2020 IEC 60999-1:1999 IEC 60999-2:2003 |
| Details UL | |
| Standards | |
| UL 508 |
| for UL feeder circuits >250V |
| Mechanical data | |
| W x H x D: | 115 x 589 x 85 |
| weight: | 29,5 kg/100 |
| poles: | 3-pole |
| for busbars: | 30, 40, 60, 80, 100, 120 x 10 |
|
Reference |
the 2 covers for the busbar supports are included |
| short-circuit withstandability: | not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit |
| for UL feeder circuits >250V | |
