holder for cylindrical fuses

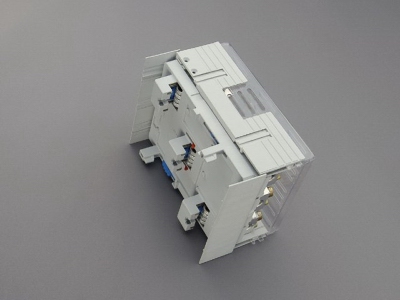

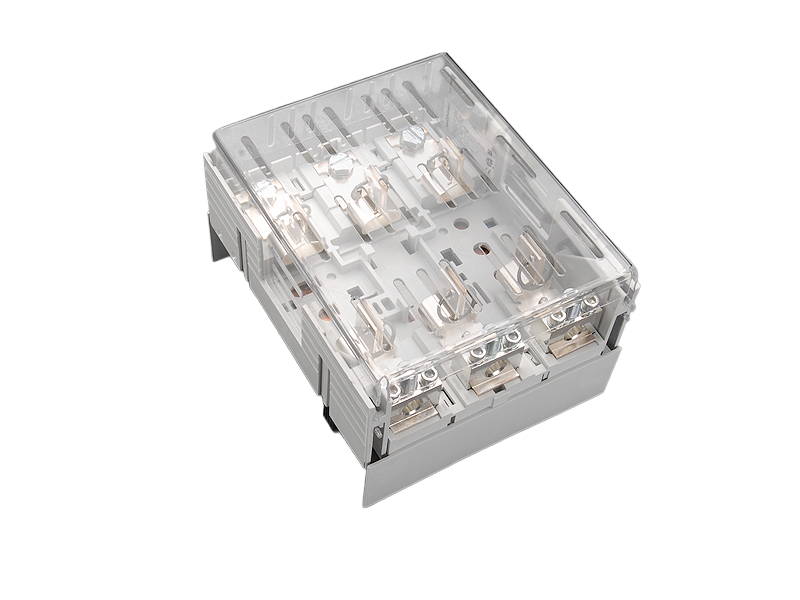

The picture may show a similar product.

Description

Part No.: 33309 000

QUADRON 60Classic

holder for cylindrical fuses

Class J / 3P, Klemme 70 mm², connection bottom or top

100 A / 600 V (29 x 118)

for busbars 12, 15, 20, 25, 30 x 10  and section busbars

no longer available

Follower: 33402000

System

60Classic

Product group 16
Subgroup 27
pack size 1
EAN 4021267333096
ETIM 5.0 EC002705

Approvals

Standards

IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016, Fuse system H

UL 4248-8

UL 4248-1

Approvals

CSA , UL

for UL feeder circuits >250V

type number: JC100B

UL file: E230163, UL category (for USA): IZLT2 https://www.ul.com

UL file 2: E123577, UL category+ (for USA): NMTR https://www.ul.com

UL file: E230163, UL category (for Canada): IZLT8 https://www.ul.com

UL file 2: E123577, UL category+ (for Canada): NMTR7 https://www.ul.com

CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org

Technical data

for fuse links size: Class J 100 A
fuse links acc. to standard: UL 248-8
permitted power dissipation of the fuse-link: 10 W
Details IEC
Standards
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016, Fuse system H

Electrical data

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 4,7 W.

(The power dissipation at full load would be 7,3 W.)

Supplementary data IEC

The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel.
min. permitted operation temperature -40°C
for Class J fuses 70 - 100A as per UL 248-8 (29x118)
Details UL
Standards
UL 4248-8
UL 4248-1
for UL feeder circuits >250V
suitable for field-installed conductors
Electrical data UL
rated current (UL): 100 A
rated voltage (UL) AC: 600 V
rated frequency (UL): 50 / 60 Hz
rated voltage (UL) DC: 600 V
for wires UL: Cu 60°C
SCCR: 65 kA
Mechanical data
W x H x D: 184 x 221 x 103
weight: 328,0 kg/100
poles: 3-pole
for busbars: 12, 15, 20, 25, 30 x 10  and section busbars
Terminal points
Buchsenklemme
Md min.: 14,0 Nm
Md max.: 14,0 Nm
Not suitable for aluminium cables !
for wires UL: Cu 60°C

Application notes

Not suitable for aluminium cables !

Shock protection through push-on covers.
permitted power dissipation of the fuse-link: 10 W
for UL feeder circuits >250V
