Part No.: 35017000

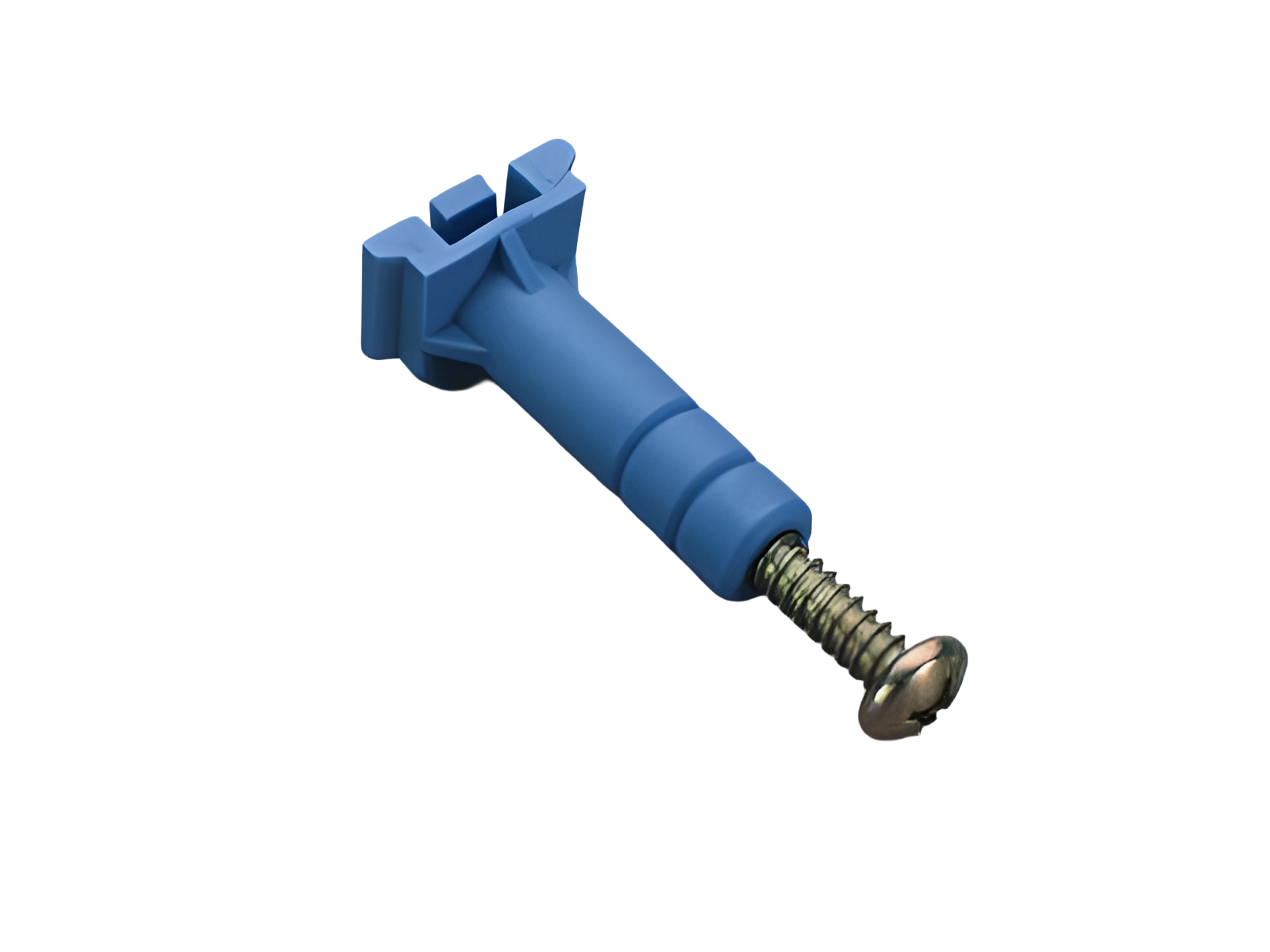

additional cover holder
for centre feed unit
System
centre feed unit
Product group | 11 |
Subgroup | 15 |
pack size | 4 |
EAN | 4021267350178 |
ECLASS 6.1 | 27370390 |
ECLASS 7.1 | 27370390 |
ETIM 4.0 | EC002498 |
ETIM 5.0 | EC002498 |
Standards
IEC 61439-1:2020
Approvals
for UL feeder circuits >250V
CCC approval: no certification required
Details IEC | |
Standards | |
IEC 61439-1:2020 |
for UL feeder circuits >250V |
Mechanical data | |
W x H x D: | 25 x 47 x 20 |
weight: | 1,4 kg/100 |
short-circuit withstandability: | not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit |
for UL feeder circuits >250V |
