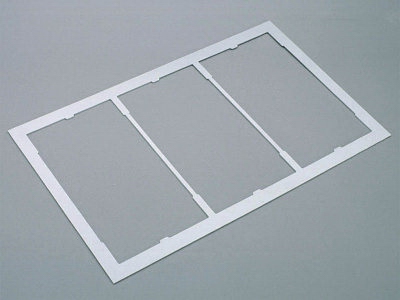

trim frame, triple (78139)

The picture may show a similar product.

Description

Part No.: 78139 000

trim frame, triple

340 x 210, not for 33221, 33222

size 00

no longer available

Product group 09
Subgroup 51
pack size 10
EAN 4021267781392
ETIM 5.0 EC002498

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Technical data

Details IEC
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Mechanical data
W x H x D: 340 x 210 x 2
weight: 3,8 kg/100

Application notes

not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit
