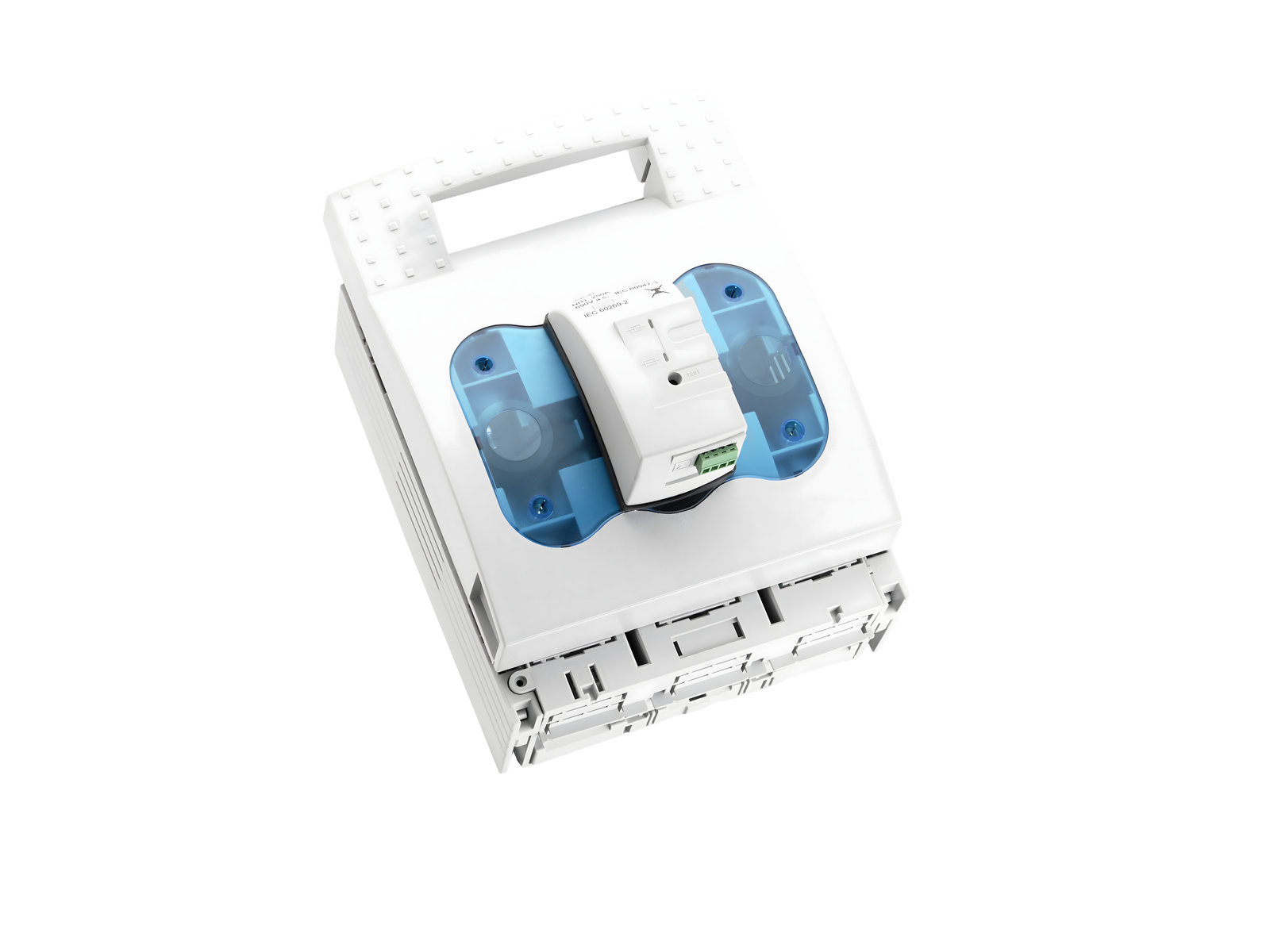

NH fuse switch-discon. size 1, 250 A, panel mounting (33330)

The picture may show a similar product.

Description

Part No.: 33330000

QUADRON^®Panel

NH fuse switch-discon. size 1, 250 A, panel mounting

screw M10

with electronic fuse monitoring

for mounting plate

System

Panel

Advantages of the product

For safe connection of the lines, the shock protection is split into 2.
Self-closing inspection holes are available in the cover.

Product group	09
Subgroup	07

pack size	1
EAN	4021267333300

ECLASS 6.1	27142108
ECLASS 7.1	27142108
ETIM 4.0	EC001040
ETIM 5.0	EC001040

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

UL 4248-1

Approvals

IEC (CB) , UL , VDE , CCC , DNV GL

for UL feeder circuits >250V

type number: QCB-NH1

UL file: E230163, UL category (for USA): IZLT2 https://www.ul.com

CCC certificate: 2012010302563561

Technical data

for fuse links size:	NH 1
fuse links acc. to standard:	IEC / HD 60269-2
live grip lugs required:	Yes
permitted power dissipation of the fuse-link:	23 W
requirements for contact parts:	Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed.

Details IEC
Standards
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only

Electrical data IEC
rated current (IEC):	250 A
rated voltage (IEC) AC:	690 V

rated voltage (IEC) DC:

250 V

rated isolation voltage U_i AC:	690 V
rated isolation voltage U_i DC:	250 V
rated surge voltage U_imp :	6 kV

Utilisation category AC (IEC 60947-3) :

AC-22B (400V)
AC-23B (400V/160A)
AC-21B (690 V)

to obtain a higher utilisation category the product can be retrofitted with arcing chambers (see accessories)

cond. short-circuit current with fuses (AC):	100 kA / 690 V
approved wth fuse links of operation class:	gG
rated peak withstand current I_pk max.:	13.7 kA
rated short-time withstand current I_cw (1.0 s) max.:	8.1 kA
I_cw approved with:	Trennmesser

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 9,0 W.

(The power dissipation at full load would be 14,1 W.)

Supplementary data IEC
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel.

max. permitted voltage (IEC) AC:	725 V
max. permitted voltage (IEC) DC:	262 V

A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such.

for fuse links IEC 60269-2-1 (I) / DIN VDE 0636-201 size 1 up to 23W power dissipation, with grip lugs under voltage
Entsprechend den angegeben AC- und DC- Schalteigenschaften und unter Berücksichtigung der Überlastbedingungen, sind gewisse Abstände zu geerdeten Metallteilen einzuhalten. Nähere Informationen auf Anfrage. Bei Verwendung als Trennschalter ist die Einhaltung der Abstände nicht erforderlich.
Schutzart IP30 frontseitig, im Anschlussbereich vom Einbau abhängig Elektronische Sicherungsüberwachung: - Zur Erkennung von Sicherungsausfällen mit Bemessungsspannung AC 100V bis AC 690V - Keine Hilfsenergie erforderlich; Versorgung über Netzspannung - Hilfskontakte potentialfrei - LED- Blinkmelder (rot/grün) - Testtaster - Weitere Informationen unter Downloads / Datenblatt

Details UL
Standards
UL 4248-1

for UL feeder circuits >250V

Electrical data UL
rated current (UL):	250 A
rated voltage (UL) AC:	600 V
rated frequency (UL):	50 / 60 Hz

SCCR:

100 kA

Mechanical data
W x H x D:	184 x 243 x 154
weight:	229,0 kg/100
poles:	3-pole
Mounting:	for mounting plate

front degree of protection:

IP30

Terminal points
screw connection
M10
screw drive:	SW16
Md min.:	20,0 Nm
Md max.:	30,0 Nm

Application notes

A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such.

live grip lugs required:	Yes
permitted power dissipation of the fuse-link:	23 W
requirements for contact parts:	Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed.

for UL feeder circuits >250V

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| Mounting instructions

| CAD model 3D STP

| Data packet EPlan (*.edz)

| Dimensioned drawing

| Fuse monitoring

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Accessories

33142000
cover for cable lugs, top / bottom attachable
for: QCB-NH1, QCS-NH1, QCS-320
More

33145000
prism terminal, double, for Cu cables
2x 35 - 70 mm²
for: QCB-NH1, QCS-NH1, QCS-320
More

33152000
trim frame, single
215 x 330
size 1
More

33155000
barrier for handle
for NH fuse-switch disconnector size 1-3
for closing of handle area from rear
More

33157000
lid interlock
for sealing wire or 3 padlocks with shackle of 4 - 7 mm
Size 1 - 3
More

33158000
rapid mounting set
for 2 mounting rails, rails centre distance 125 mm or 150 mm
size 1 - 2
More

33163000
clamp connector for Cu cables
70 - 150 mm²
for: QCB-NH1, QCS-NH1, LTS-F 250, LTS 400
More

33166000
prism terminal, single, for Cu cables
35 - 150 mm²
QCB-NH1, QCS-NH1, QCS-320
for: QCB-NH1, QCS-NH1, QCS-320
More

33909000
box terminal for Cu cables
35 - 150 mm²
QCB-NH1, QCS-NH1, QCS-320
for: QCB-NH1, QCS-NH1, QCS-320
More

33917000
pilot switch
changeover 250 V AC / 5 A, 30 V DC / 4 A
QUADRON®60Classic, QUADRON®Panel size 1
More

33918000
arcing chamber
retrofit package for higher utilisation category
for QCB-NH1
More

Similar products

33149000
QUADRON^®Panel
NH fuse switch-discon. size 1, 250 A, panel mounting
screw M10
with electromechanical fuse monitoring
More

33201000
QUADRON^®Panel
NH fuse switch-discon. size 1, 250 A, panel mounting
screw M10
More

https://pim.woehner.de/EN/NL/1000046804

Find your contact

to the contact site

Wöhner GmbH & Co. KG
Elektrotechnische Systeme
Mönchrödener Str. 10
96472 Rödental

Order hotline (Germany)
+49 9563 751 161
order@woehner.de

Technical hotline (Germany)
+49 9563 751 260
support@woehner.com
