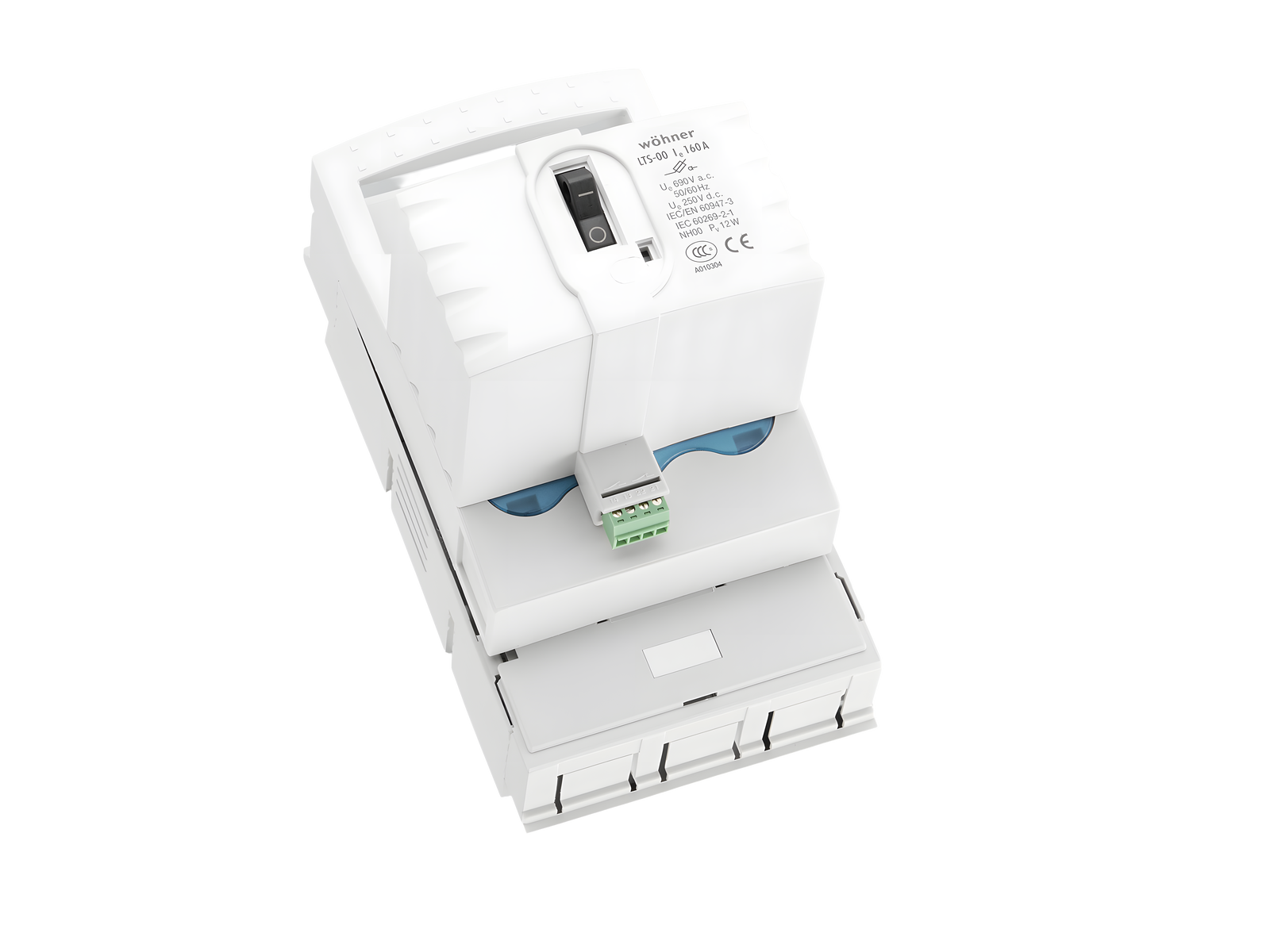

NH fuse switch-disconnector size 00, 160 A, panel mounting (33208)

The picture may show a similar product.

Description

Part No.: 33208000

QUADRON^®Panel

NH fuse switch-disconnector size 00, 160 A, panel mounting

screw M8

with electromechanical fuse monitoring

for mounting plate

System

Panel

Advantages of the product

For safe connection of the leads, the shock protection is split into 2.

Product group	09
Subgroup	04

pack size	1
EAN	4021267332082

ECLASS 6.1	27142108
ECLASS 7.1	27142108
ETIM 4.0	EC001040
ETIM 5.0	EC001040

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

UL 4248-1

Approvals

IEC (CB) , UL , CCC

for UL feeder circuits >250V

type number: LTS-00

UL file: E230163, UL category (for USA): IZLT2 https://www.ul.com

CCC certificate: 2004010302117250

Technical data

for fuse links size:	NH 000, NH 00
fuse links acc. to standard:	IEC / HD 60269-2
live grip lugs required:	Yes
permitted power dissipation of the fuse-link:	12 W
requirements for contact parts:	Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed.

Details IEC
Standards
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only

Electrical data IEC
rated current (IEC):	160 A
rated voltage (IEC) AC:	690 V

rated voltage (IEC) DC:

250 V

rated isolation voltage U_i AC:	800 V
rated isolation voltage U_i DC:	250 V
rated surge voltage U_imp :	6 kV

Utilisation category AC (IEC 60947-3) :	AC-23B (400 V) AC-23B (500 V / 125A) AC-22B (690 V) AC-21B (690 V)
Utilisation category DC (IEC 60947-3) :	DC specifications: 2 current paths (L1,L3) in series DC-22B (250V)

cond. short-circuit current with fuses (AC):	50 kA / 690 V
approved wth fuse links of operation class:	gG

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 4,5 W.

(The power dissipation at full load would be 7,0 W.)

Supplementary data IEC
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel.

max. permitted voltage (IEC) AC:	725 V
max. permitted voltage (IEC) DC:	262 V

A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such.

for fuse links IEC 60269-2-1 (I) / DIN VDE 0636-201 size 00 up to 12W power dissipation, with grip lugs under voltage
Entsprechend den angegeben AC- und DC- Schalteigenschaften und unter Berücksichtigung der Überlastbedingungen, sind gewisse Abstände zu geerdeten Metallteilen einzuhalten. Nähere Informationen auf Anfrage. Bei Verwendung als Trennschalter ist die Einhaltung der Abstände nicht erforderlich
Degree of protection IP30 at front, degree of protection near terminal depends on installation fuse monitoring: rated operating voltage AC 24-690V, DC 24-250V potential-free opener and closer: AC-15 24V/2A, (230V* 0.5A) DC-13 24V/1A, 60V 0.15A *pollution degree 2, surge category II auxiliary energy not required, for further information, see assembly manual

Details UL
Standards
UL 4248-1

for UL feeder circuits >250V

Electrical data UL
rated current (UL):	160 A
rated voltage (UL) AC:	600 V
rated frequency (UL):	50 / 60 Hz

SCCR:

100 kA

Mechanical data
W x H x D:	106 x 176 x 157
weight:	126,0 kg/100
poles:	3-pole
Mounting:	for mounting plate

front degree of protection:

IP30

Terminal points
screw connection
M8
screw drive:	SW13
Md min.:	8,0 Nm
Md max.:	10,0 Nm
Not suitable for aluminium cables !

Accessories: Clamp connection: Cu 1.5-70mm² s(r), f+AE; lam. Cu 12x1-10; 3Nm torque single wedge clamp terminal: Cu, Al* 16-70mm² s(r), s(s), f+AE; 3Nm torque tunnel terminal 3x Cu 1.5-16mm² s(r), f+AE; 3Nm torque *Connections not maintenance-free if aluminium conductors are used.

Application notes

Not suitable for aluminium cables !
A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such.

live grip lugs required:	Yes
permitted power dissipation of the fuse-link:	12 W
requirements for contact parts:	Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed.

for UL feeder circuits >250V
