The picture may show a similar product.
Part No.: 01927 000

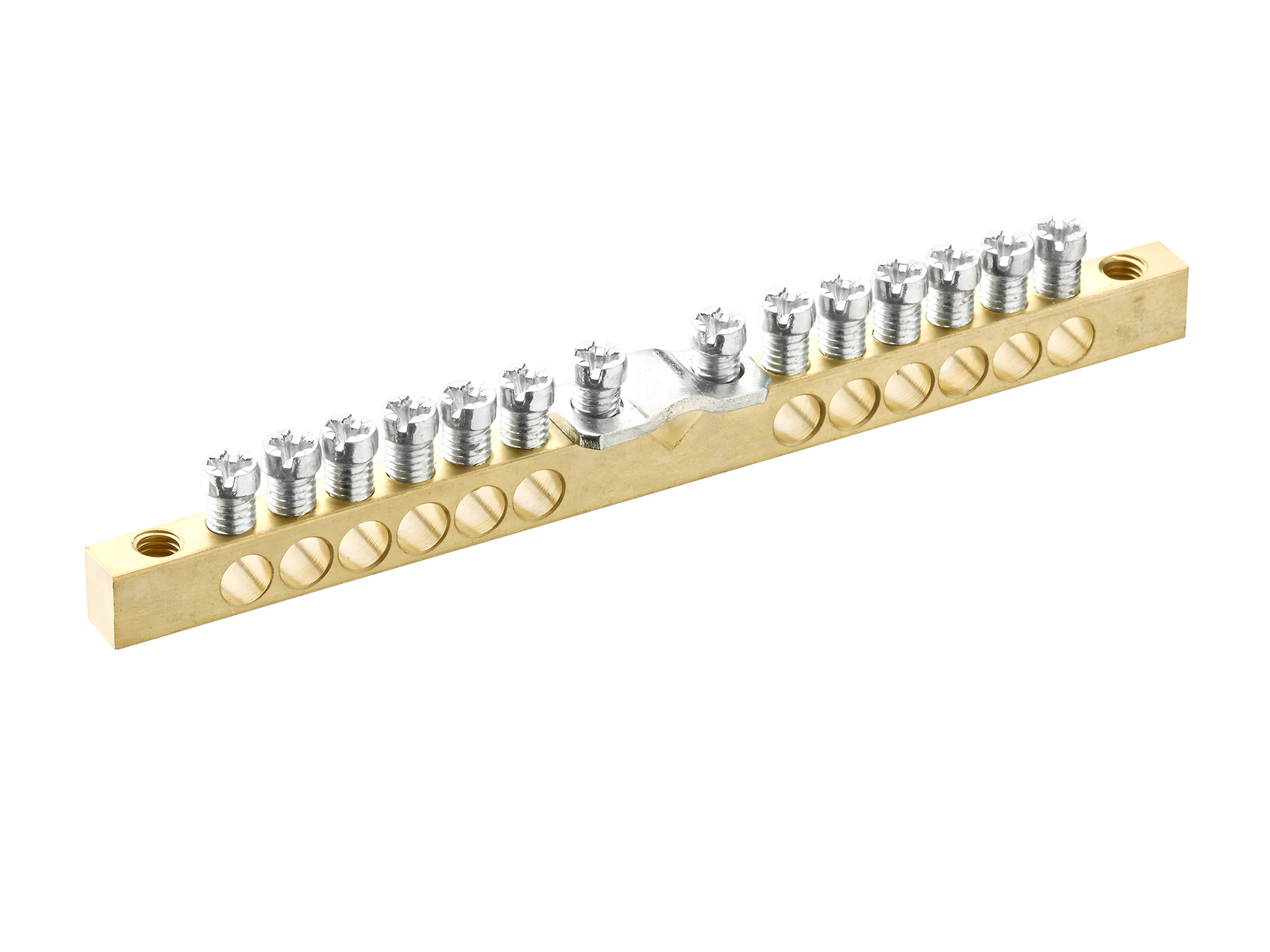

earth/neutral busbar 63A
12 terminal points 10mm², screw-on, 124.0 mm long
1 terminal clamp 25 mm²
| Product group | 06 |
| Subgroup | 33 |
| pack size | 50 |
| EAN | 4021267019273 |
| ECLASS 6.1 | 27141139 |
| ECLASS 7.1 | 27141139 |
| ETIM 4.0 | EC000485 |
| ETIM 5.0 | EC000485 |
Standards
IEC 60664-1:2007
CCC approval: no certification required
| Details IEC | |
| Standards | |
| IEC 60664-1:2007 |
| Electrical data IEC | |
| rated current (IEC): | 63 A |
| Mechanical data | |
| W x H x D: | 124 x 9 x 6.5 |
| weight: | 5,5 kg/100 |
| Terminal points | |
|
Zugang: 10 bis 25 mm² (10 mm² durch Umdrehen der Anschlussschelle) |
|
|
max. Drehmoment = 2Nm |
|
