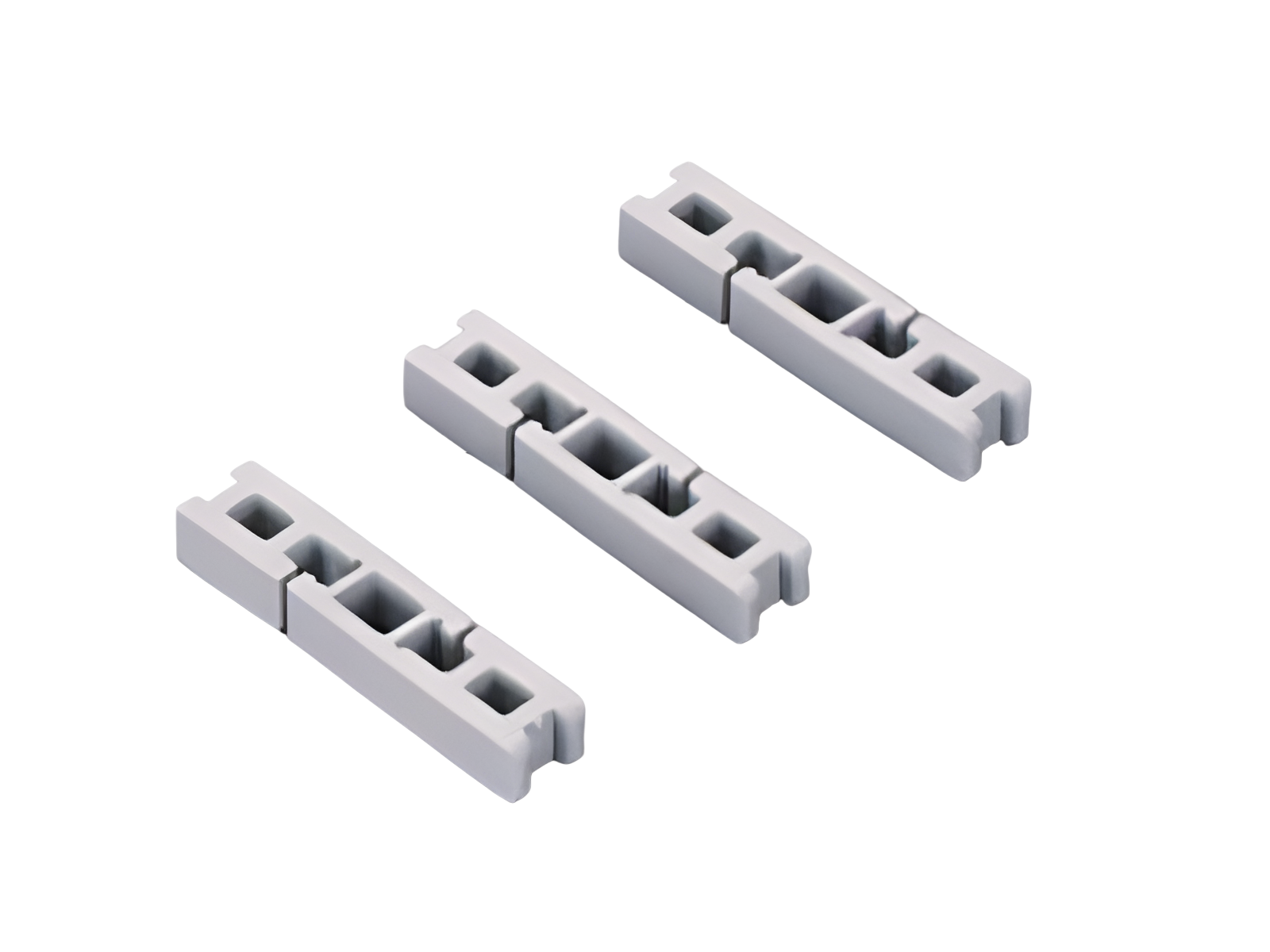

reducer for busbar support 01138 (01170)

The picture may show a similar product.

Description

Part No.: 01170 000

reducer for busbar support 01138

for busbars 5 mm

Product group 06
Subgroup 30
pack size 100
EAN 4021267011703
ECLASS 6.1 27370390
ECLASS 7.1 27370390
ETIM 4.0 EC002498
ETIM 5.0 EC002498

Approvals

Standards

IEC 61439-1:2020

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2020
Mechanical data
W x H x D: 10 x 10 x 5
weight: 0,1 kg/100

Application notes

not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

CAD Daten WSCAD

Downloads

| General technical information

| Data packet EPlan (*.edz)

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Usage

01138 000
busbar support 3 phases + N + E
for boxes AKi (Spelsberg) and VMS (ABB / GE)
for busbars: 3x (12, 20, 30 x 10) and 2x (12, 20, 25 x 5, 10)
