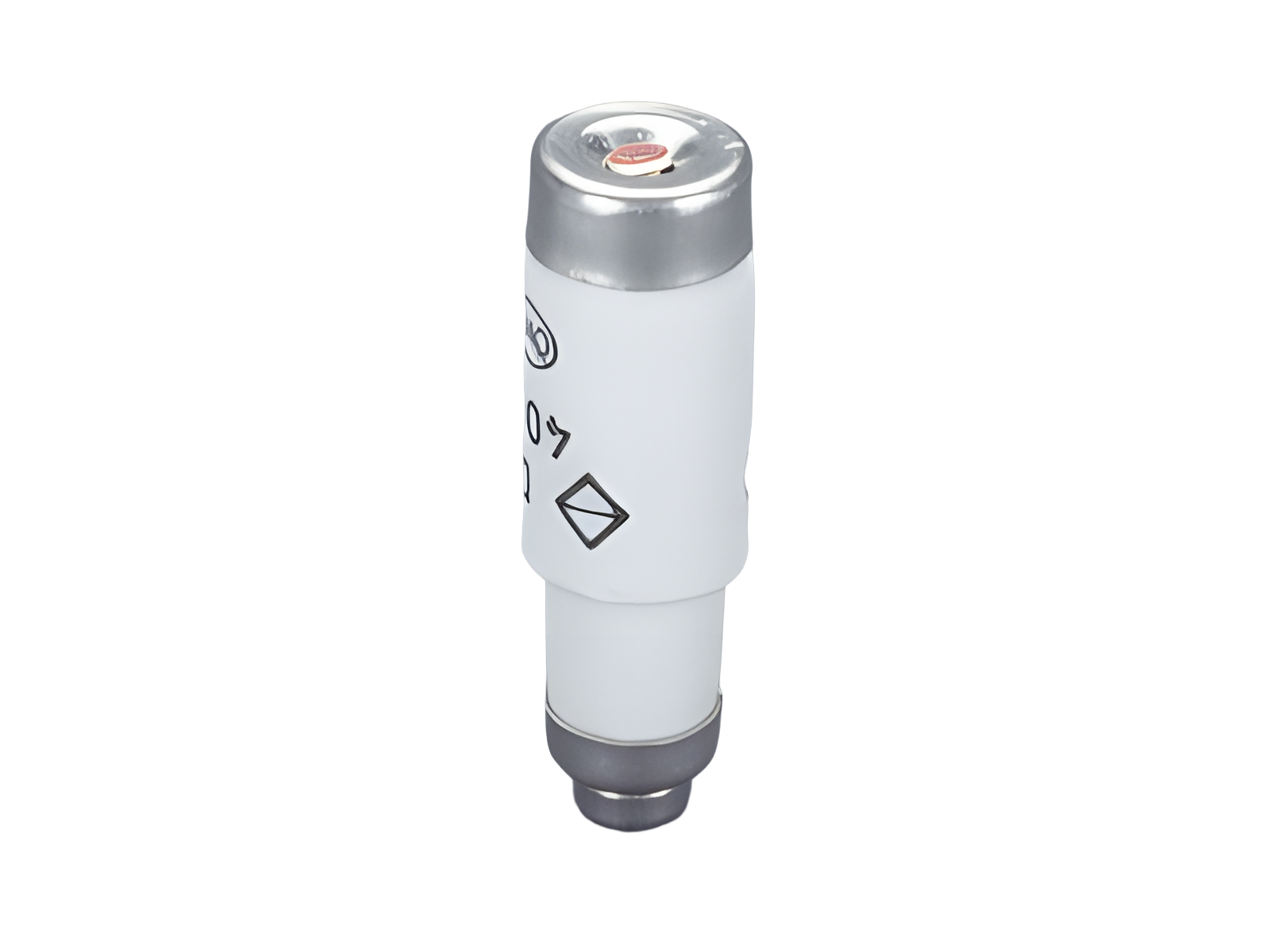

The picture may show a similar product.
Part No.: 01687000
D01 fuse link 6 A
400 V, gG
E 14
| Product group | 22 |
| Subgroup | 01 |
| pack size | 10 |
| EAN | 4021267016876 |
| ECLASS 6.1 | 27142119 |
| ECLASS 7.1 | 27142119 |
| ETIM 4.0 | EC001642 |
| ETIM 5.0 | EC001642 |
Standards
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-3:2010 + A1:2013 + A2:2019
| size: | D01 / E 14 |
| Details IEC | |
| Standards | |
|
IEC 60269-1:2006 + A1:2009 + A2:2014 IEC 60269-3:2010 + A1:2013 + A2:2019 |
| Electrical data IEC | |
| Rated current (IEC): | 6 A |
| rated voltage (IEC) AC: | 400 V |
| rated voltage (IEC) DC: | 250 V |
| operation class | gG |
| rated short-circuit breaking capacity AC | 50 kA |
| rated short-circuit breaking capacity DC | 8 kA |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 1,2 W.
(The power dissipation at full load would be 1,8 W.)
| Mechanical data | |
| weight: | 0,6 kg/100 |
