Part No.: 31288 000

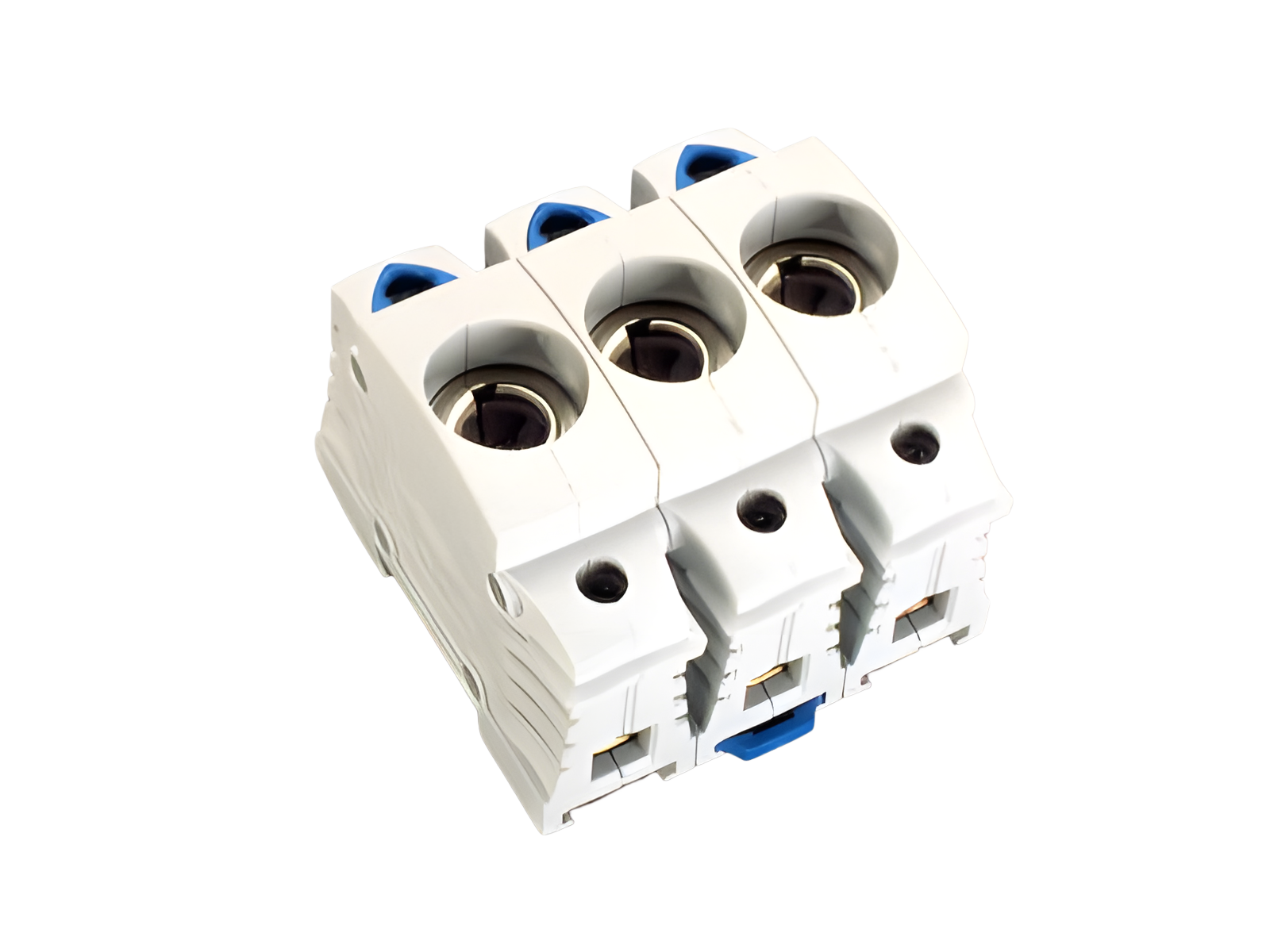

TRITON Panel
D0 fuse base, panel-mounting
E 14 / 16 A / 3P
touch protected acc. to DGUV V3
for mounting rail
System
Panel
Advantages of the product
large clamping range, holder for label
| Product group | 02 |
| Subgroup | 15 |
| pack size | 3 |
| EAN | 4021267312886 |
| ECLASS 14.0 | 27142120 |
| ETIM 5.0 | EC001644 |
| ETIM 8.0 | EC001644 |
| ETIM 10.0 | EC001644 |
Standards
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-3:2010 + A1:2013 + A2:2019
Approvals
CCC , DNV GL
type number: 1413
EAC Type: D0
| for fuse links size: | D0 |
| fuse links acc. to standard: | IEC / HD 60269-3 |
| permitted power dissipation of the fuse-link: | 2,5 W |
| Details IEC | |
| Standards | |
|
IEC 60269-1:2006 + A1:2009 + A2:2014 IEC 60269-3:2010 + A1:2013 + A2:2019 |
| Electrical data IEC | |
| rated current (IEC): | 16 A |
| rated voltage (IEC) AC: | 400 V |
| rated voltage (IEC) DC: | 250 V |
| rated surge voltage Uimp : | 6 kV |
| approved wth fuse links of operation class: | gG |
| short-circuit strength when protected by fuses: | 50 kA |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 0,8 W.
(The power dissipation at full load would be 1,2 W.)
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| max. permitted voltage (IEC) AC: | 440 V |
| max. permitted voltage (IEC) DC: | 262 V |
| max. permitted operation temperature | 55°C |
The feed direction marked on the product must be strictly observed. |
| Mechanical data | |
| W x H x D: | 81 x 80 x 55 |
| weight: | 38,4 kg/100 |
| poles: | 3-pole |
| Mounting: | for mounting rail |
| Terminal points | |
| cage clamp connection | |
| screw drive: | PZ2 |
| min. cross-section: | 1,5 mm² |
| max. cross-section: | 35 mm² |
| re: | 1.5 - 10 mm² |
| f: | 1.5 - 35 mm² |
| f + AE: | 1.5 - 35 mm² |
| (f + AE may not fit with max. cross-section) | |
| Md min.: | 3,2 Nm |
| Md max.: | 4,8 Nm |
| Not suitable for aluminium cables ! | |
| Material properties | |
| Material: | Plastic |
| halogen-free: | Yes |
| Not suitable for aluminium cables ! | |
| permitted power dissipation of the fuse-link: | 2,5 W |
