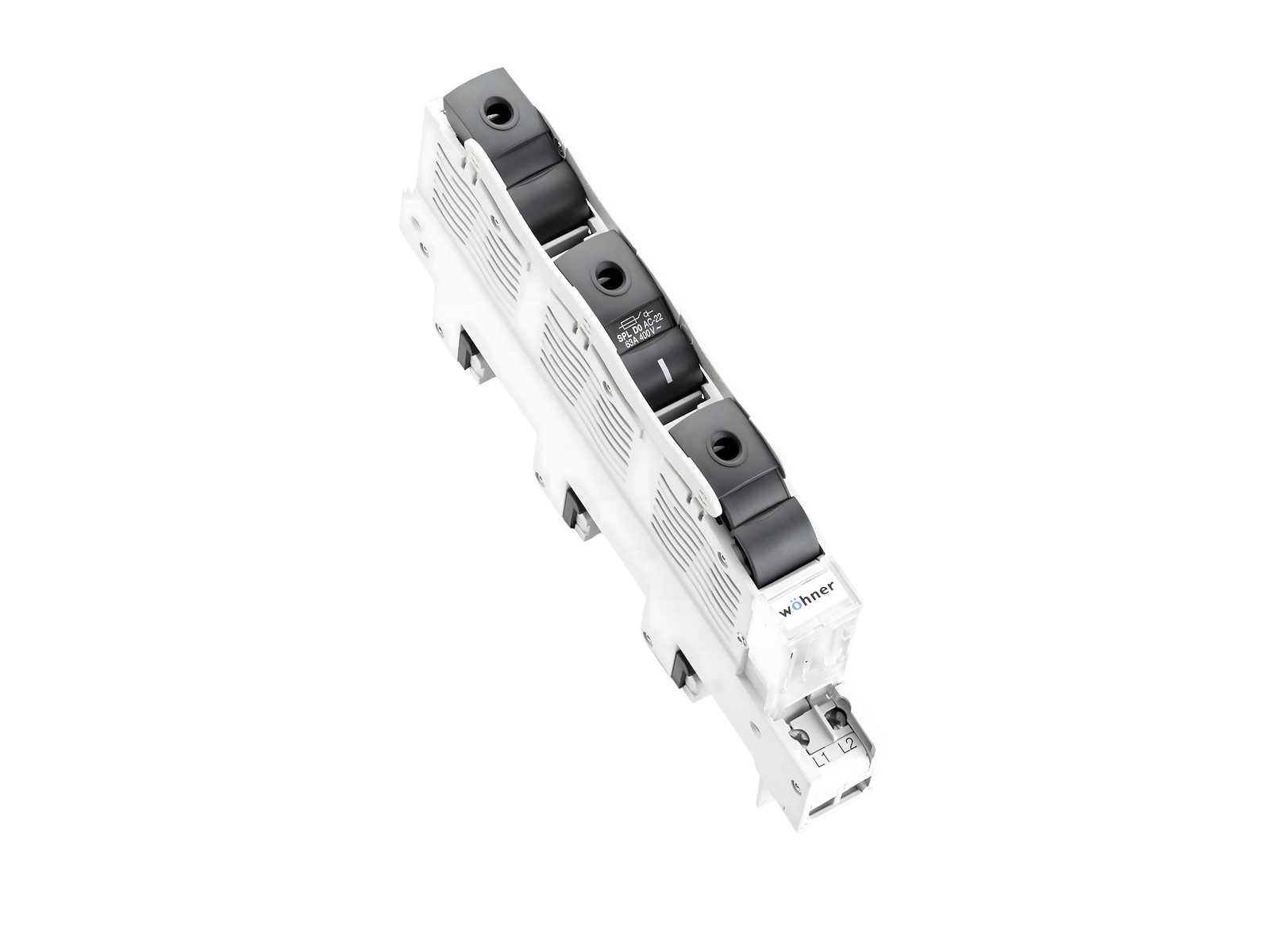

The picture may show a similar product.
Part No.: 31525000
SECUR®60Classic PowerLiner
D0 busbar mounted switch-disconnector-fuse
for D01 and D02 fuses, with LED
E18 / 63 A / 3P
connection bottom
for busbars 12, 15, 20, 25, 30 x 5, 10 and section busbars
3-pole / 1-pole switching
System
60Classic
| Product group | 01 |
| Subgroup | 42 |
| pack size | 1 |
| EAN | 4021267315252 |
| ECLASS 6.1 | 27142110 |
| ECLASS 7.1 | 27142110 |
| ETIM 4.0 | EC000277 |
| ETIM 5.0 | EC000277 |
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Approvals
VDE , CCC , DNV GL
type number: SPL-D0
CCC certificate: 2018010302128773
| for fuse links size: | D0 |
| fuse links acc. to standard: | IEC / HD 60269-3 |
| permitted power dissipation of the fuse-link: | 5,5 W |
| requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
| Details IEC | |
| Standards | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
| Electrical data IEC | |
| rated current (IEC): | 63 A |
| rated voltage (IEC) AC: | 400 V |
| rated voltage (IEC) DC: | 110 V |
| rated isolation voltage Ui AC: | 500 V |
| rated isolation voltage Ui DC: | 250 V |
| rated surge voltage Uimp : | 6 kV |
| Utilisation category AC (IEC 60947-3) : | AC-23A (400 V) |
| Utilisation category DC (IEC 60947-3) : | DC-21B (48V) 1 pole DC-21B (110V) 2 poles |
| cond. short-circuit current with fuses (AC): | 50 kA / 400 V |
| approved wth fuse links of operation class: | gG |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 6,7 W.
(The power dissipation at full load would be 10,5 W.)
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such. |
| LED indicates blown fuse, operating range: 110 - 400 V AC / DC | |
| for fuse links and gauge rings as per DIN VDE 0636-3 IEC / HD 60269-3 utilisation category as per VDE 0638: AC22 |
|
The function of isolation between incoming and outgoing contacts is provided by the opening of the switching mechanism as required in the standard. |
| Mechanical data | |
| W x H x D: | 27 x 220 x 100 |
| weight: | 76,5 kg/100 |
| poles: | 3-pole |
| for busbars: | 12, 15, 20, 25, 30 x 5, 10 and section busbars |
| front degree of protection: | IP20 |
Type of fastening: patented click mechanism
| Terminal points | |
| cage clamp connection | |
| screw drive: | PZ2 |
| wire stripping: | 12 mm |
| min. cross-section: | 1,5 mm² |
| max. cross-section: | 16 mm² |
| Md min.: | 2,5 Nm |
| Md max.: | 3,0 Nm |
| Not suitable for aluminium cables ! | |
| Not suitable for aluminium cables ! | |
| A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such. | |
|
Reference |
SECUR®PowerLiner can be fitted with D0 adapter sleeves. With reducer insert (part no. 31902) and adapter sleeves, also suitable for D01 fuse-links. The use of the side module part no. 31901 is recommended for continuous loads of 35 A or greater. |
| permitted power dissipation of the fuse-link: | 5,5 W |
| requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
