hybrid switch, 3-pole or 1-pole switchable (36154)

The picture may show a similar product.

Description

Part No.: 36154000A

OMUS®CrossBoard

hybrid switch, 3-pole or 1-pole switchable

electronic unit switch for resistive loads 25.0 A, for applications IEC

for resistive loads

with CrossLink® interface

System

CrossBoard® 125A / 250A, CrossBoard® 800 A

Product group 21
Subgroup 11
pack size 1
EAN 4021267361549
ECLASS 6.1 27370804
ECLASS 7.1 27370804
ETIM 4.0 EC001037
ETIM 5.0 EC001037

Approvals

Standards

IEC 60947-1:2007 + A1:2010 + A2:2014
IEC 60947-4-3:2014

Approvals

IEC (CB)

type number: OM25-H

Technical data

Details IEC
Standards
IEC 60947-1:2007 + A1:2010 + A2:2014
IEC 60947-4-3:2014
Electrical data IEC
rated current (IEC): 25 A
rated voltage (IEC) AC: 400 V
min. operating voltage AC: 42 V
min. load current: 2 A
max. switching frequency: 1 Hz
reply contact: 1 NO + 1 CO
rated frequency (IEC): 50 Hz
rated isolation voltage Ui AC: 500 V
rated surge voltage Uimp : 2.5 kV
cond. short-circuit current with fuses (AC): 30 kA / 400 V

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 12,8 W.

(The power dissipation at full load would be 20,0 W.)

Mechanical data
W x H x D: 36 x 160 x 130
weight: 55,2 kg/100
poles: 3-pole
degree of protection: IP20
vertical installation position: Yes
horizontal installation position: No
Terminal points
screw clamp connection
min. cross-section: 1,5 mm²
max. cross-section: 6 mm²
Md min.: 0,5 Nm
Md max.: 0,8 Nm

min. cross-section UL: AWG 16
max. cross-section UL: AWG 8
torque (UL): 7 lb-in

Application notes

permitted degree of polution: 2

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| Operation instructions

| CAD model 3D PDF

| CAD model 3D STP

| CAD symbol 2D DXF

| Data packet EPlan (*.edz)

| Dimensioned drawing

| Data sheet

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Accessories

31252000
cylindr. fuse link 30 A
-Mersen-
600 V AC, time delay
Class CC
for control transformer applications
More

31080000A
cylindr. fuse link 30 A
-Mersen-
600 V AC, time delay
Class CC
for motor load applications
NEW
More

31189000

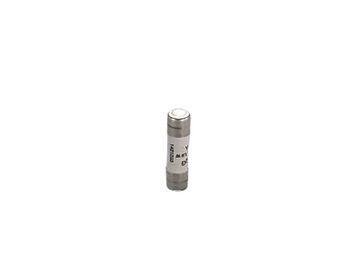

cylindr. fuse link 32 A
