brace terminal (01759000)

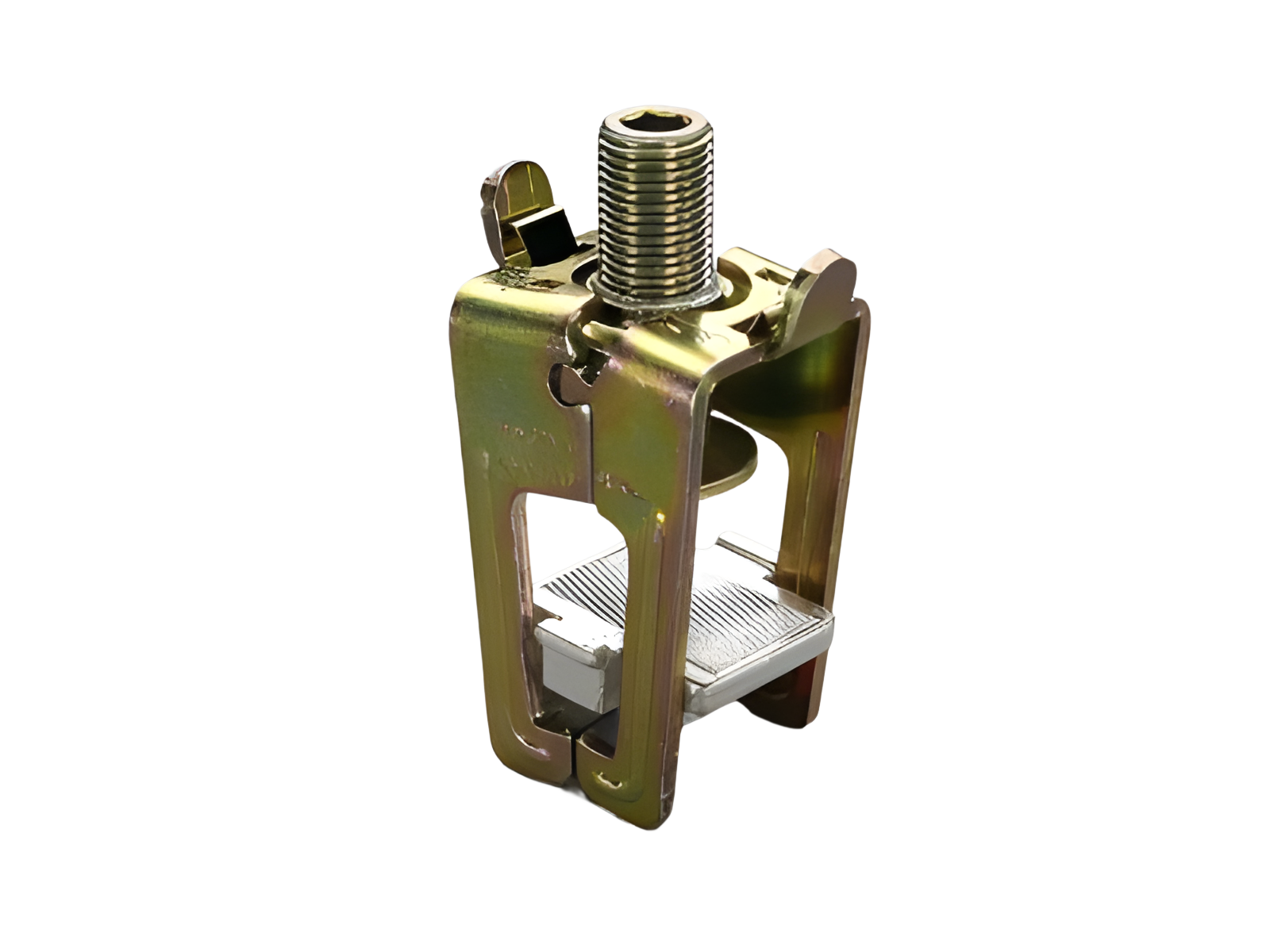

The picture may show a similar product.

Description

Part No.: 01759 000

CRITO

brace terminal

32 x 20

for busbars 20, 25, 30 x 5, 10 and section busbars

System

60Classic, centre feed unit, 100Energy

Advantages of the product

also rigid copper busbars can be connected if they are installed without mechnical tension
Terminals with captive clamping screws

Product group	07
Subgroup	25

pack size	3
EAN	4021267017590

ECLASS 14.0	27250116
ETIM 5.0	EC000001
ETIM 8.0	EC000001
ETIM 10.0	EC000001

Approvals

Standards

IEC 61439-1:2020
IEC 60999-1:1999
IEC 60999-2:2003

UL 508

Approvals

CSA , UL , DNV GL

type number: 530

UL file: E123577, UL category (for USA): NMTR2 https://www.ul.com

UL file: E123577, UL category (for Canada): NMTR8 https://www.ul.com

CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2020 IEC 60999-1:1999 IEC 60999-2:2003

Electrical data IEC
rated current (IEC):	550 A
rated voltage (IEC) AC:	690 V

rated peak withstand current I_pk max.:

80.9 kA

Supplementary data IEC
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel.

max. permitted voltage (IEC) AC:	1000 V
max. permitted voltage (IEC) DC:	1500 V
current carrying capacity for centre feed:	800 A
current capacity (IEC) max. of the terminal:	800 A

min. permitted operation temperature

-40°C

Details UL
Standards
UL 508

Electrical data UL
rated current (UL):	800 A
rated voltage (UL) AC:	600 V
rated frequency (UL):	50 / 60 Hz

SCCR:

25 kA

Mechanical data
W x H x D:	40 x 49 x 88
weight:	34,7 kg/100
for busbars:	20, 25, 30 x 5, 10 and section busbars

Terminal points
screw clamp connection
screw drive:	S8
min. cross-section:	30 mm²
max. cross-section:	320 mm²
Md min.:	24,0 Nm
Md max.:	36,0 Nm
Not suitable for aluminium cables !
Terminal space:	32 x 20
lam. Cu width:	20 - 32 mm
lam. Cu thickness:	3 - 10 mm
number of lam. Cu:	1

Material properties
halogen-free:	Yes

Application notes

Not suitable for aluminium cables !
The insulation performance of the article depends on the installation conditions.
CSA-Zertifizierung auf Anfrage Hinweis für UL feeder circuits > 250V: nur für 1polige oder 2polige (L1+L3) Nutzung oder in Kombination mit 120mm-Sammelschienensysteme
