for UL feeder circuits >250V

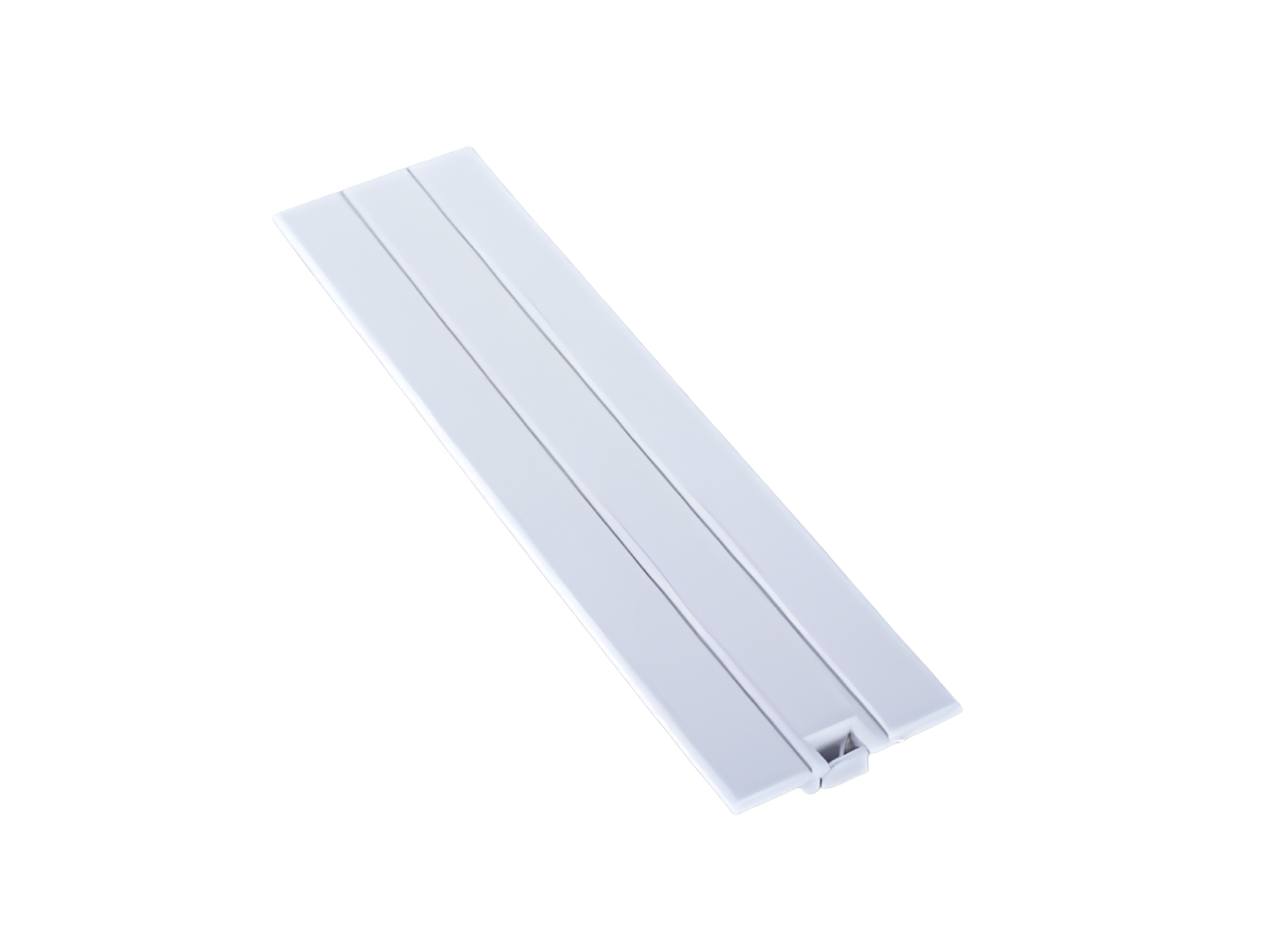

reserve section cover (79738)

The picture may show a similar product.

Description

Part No.: 79738 000

reserve section cover

54 x 195, pitch 3 x 18 mm

Product group 06
Subgroup 27
pack size 10
EAN 4021267797386
ECLASS 6.1 27370390
ECLASS 7.1 27142190
ETIM 4.0 EC002498
ETIM 5.0 EC002498

Approvals

Standards

IEC 61439-1:2020

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2020
Mechanical data
W x H x D: 54 x 195 x 10
weight: 4,5 kg/100

Pitch units 3 x 18mm

Application notes

Can only be used together with cover frame 01 139.

not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

CAD Daten WSCAD

Downloads

| General technical information

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Usage

01139 000
trim frame VMS
for boxes VMS
