Select product

for UL feeder circuits >250V

set of connectors (31390)

The picture may show a similar product.

Description

Part No.: 31390000

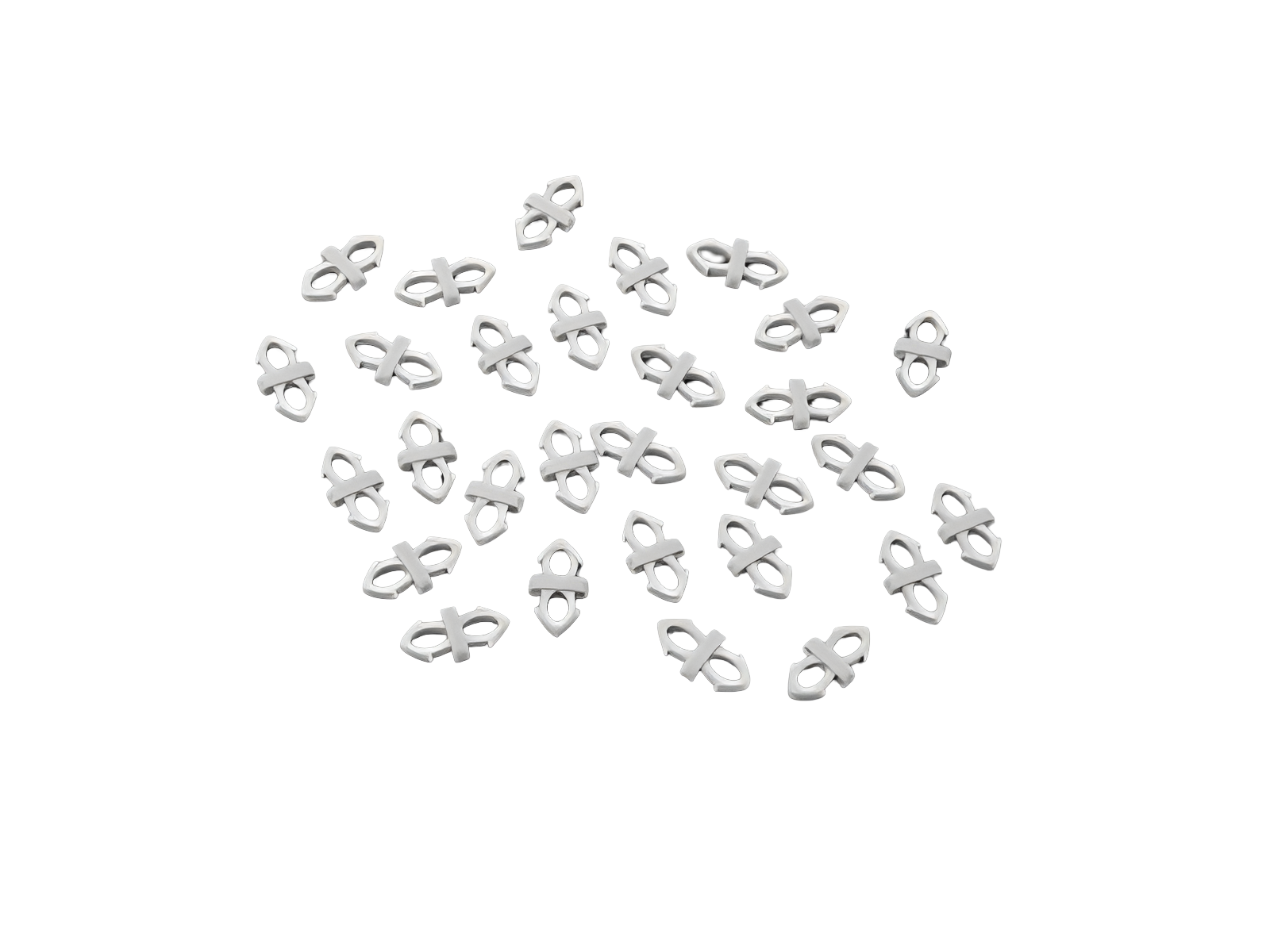

set of connectors

connector to create multipole adapters (100 pieces)

for 50 connections

System

30Compact 5P

Product group 05
Subgroup 57
pack size 1
EAN 4021267313906
ECLASS 6.1 27370390
ECLASS 7.1 27370390
ETIM 4.0 EC002498
ETIM 5.0 EC002498

Approvals

Standards

IEC 61439-1:2020

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2020
Mechanical data
weight: 2,0 kg/100

Application notes

Reference

2 connectors are needed for the connection of 2 modules
the set contains 100 connectors
short-circuit withstandability: not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| CAD model 3D STP

| Data packet EPlan (*.edz)

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Usage

32633000
side-mounted module
for single pole busbar adapters
9 x 160
More

32634000
module PE
terminal 16 mm²
9 x 160
for busbars: 12 x 5
More

32631000
busbar component support 1-pole
1 fixed mounting rail
18 x 160, without electrical connection
for busbars: 12 x 5
More

32628000
EQUES®30Compact
busbar adapter 1-pole, 63 A
1 fixed mounting rail, for Schneider Electric iC60, iC65 and C60
18 x 160
for busbars: 12 x 5
More

32630000
EQUES®30Compact
busbar adapter 1-pole, 63 A
1 fixed mounting rail
18 x 160 / 10 mm²
for busbars: 12 x 5
More

32632000
module N
terminal 16 mm²
9 x 160
for busbars: 12 x 5
More

32629000
EQUES®30Compact
busbar adapter 1-pole, 32 A
1 fixed mounting rail
18 x 160 / 6 mm²
for busbars: 12 x 5
More

32311000A
EQUES®CrossBoard
component support
without electrical connection, 1 fixed mounting rail
18 x 160
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32309000A
EQUES®CrossBoard
adapter 63 A
phase L3, 1 fixed mounting rail, with leads AWG 8 (10 mm²)
18 x 160
More

32308000A
EQUES®CrossBoard
adapter 63 A
phase L2, 1 fixed mounting rail, with leads AWG 8 (10 mm²)
18 x 160
More

32307000A
EQUES®CrossBoard
adapter 63 A
phase L1, 1 fixed mounting rail, with leads AWG 8 (10 mm²)
18 x 160
More

32302000A
EQUES®CrossBoard
adapter 16 A
phase L3, 1 fixed mounting rail, with leads AWG 14 (2.5 mm²)
18 x 160
More

32301000A
EQUES®CrossBoard
adapter 16 A
phase L2, 1 fixed mounting rail, with leads AWG 14 (2.5 mm²)
18 x 160
More

32300000A
EQUES®CrossBoard
adapter 16 A
phase L1, 1 fixed mounting rail, with leads AWG 14 (2.5 mm²)
18 x 160
More
