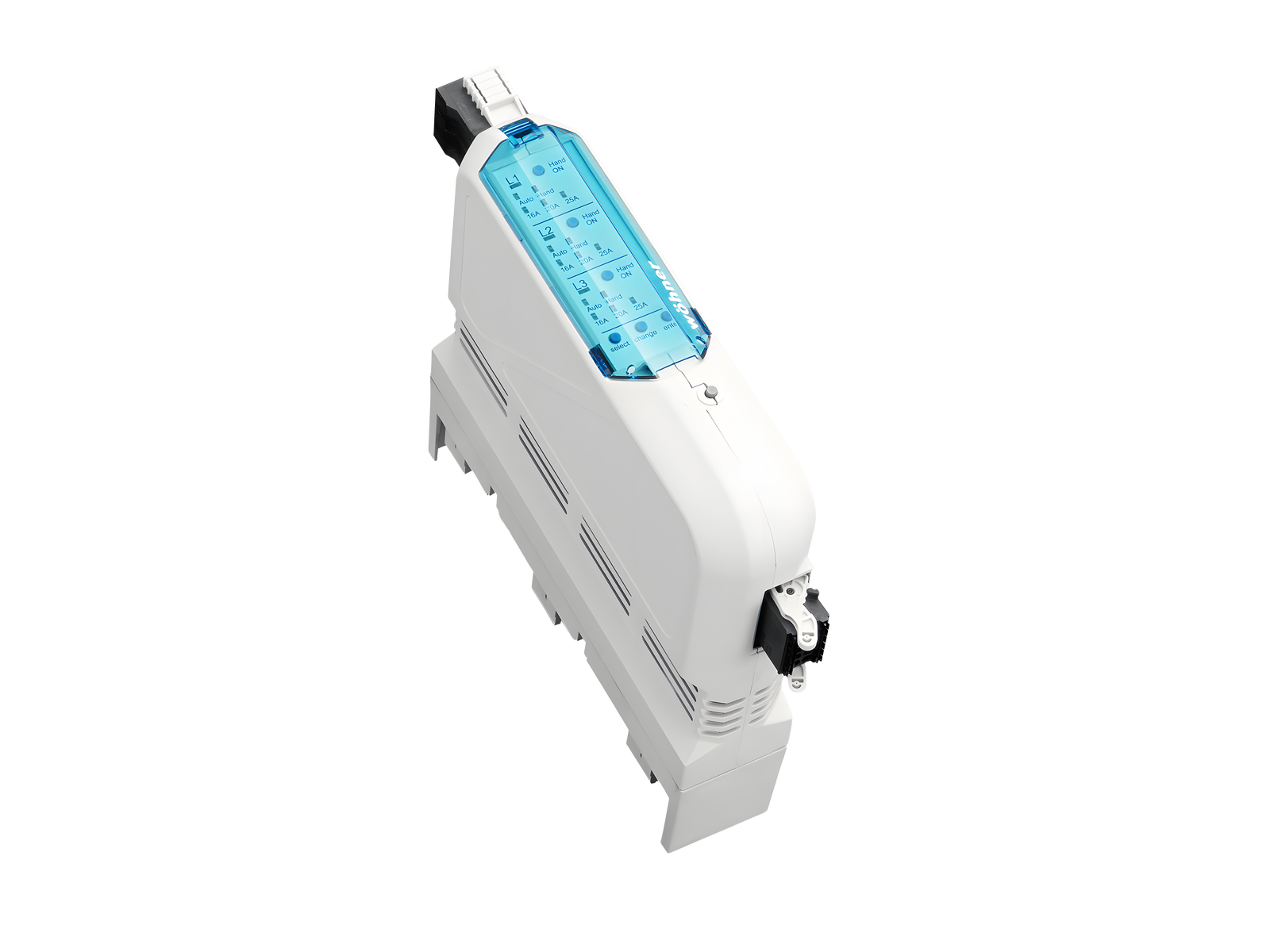

The picture may show a similar product.
Part No.: 36152000A
OMUS®30Compact
hybrid switch, 3-pole or 1-pole switchable
switch for resistive loads 25.0 A, for applications IEC
for busbars 12 x 5, 10
for resistive loads
with CrossLink®Technology
phase-out product
System
30Compact 3P
Advantages of the product
Up to 25A continuous current, including power monitoring
3 phase switching or independent phase switching is possible
Built-in functions for energy supply, fuse protection and switching
More than 30 million operating cycles through hybrid technology
| Product group | 21 |
| Subgroup | 15 |
| pack size | 1 |
| EAN | 4021267361525 |
| ECLASS 6.1 | 27370804 |
| ECLASS 7.1 | 27370804 |
| ETIM 4.0 | EC001037 |
| ETIM 5.0 | EC001037 |
Standards
IEC 60947-1:2007 + A1:2010 + A2:2014
IEC 60947-4-3:2014
Approvals
IEC (CB)
type number: OM25-H-30
| Details IEC | |
| Standards | |
|
IEC 60947-1:2007 + A1:2010 + A2:2014 IEC 60947-4-3:2014 |
| Electrical data IEC | |
| rated current (IEC): | 25 A |
| rated voltage (IEC) AC: | 400 V |
| min. operating voltage AC: | 42 V |
| min. load current: | 2 A |
| max. switching frequency: | 1 Hz |
| reply contact: | 1 NO + 1 CO |
| rated frequency (IEC): | 50 Hz |
| rated isolation voltage Ui AC: | 500 V |
| rated surge voltage Uimp : | 2.5 kV |
| cond. short-circuit current with fuses (AC): | 30 kA / 400 V |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 12,8 W.
(The power dissipation at full load would be 20,0 W.)
| Mechanical data | |
| W x H x D: | 36 x 160 x 144 |
| weight: | 62,8 kg/100 |
| poles: | 3-pole |
| for busbars: | 12 x 5, 10 |
| degree of protection: | IP20 |
| vertical installation position: | Yes |
| horizontal installation position: | No |
| Terminal points | |
| screw clamp connection | |
| min. cross-section: | 1,5 mm² |
| max. cross-section: | 6 mm² |
| Md min.: | 0,5 Nm |
| Md max.: | 0,8 Nm |
| min. cross-section UL: | AWG 16 |
| max. cross-section UL: | AWG 8 |
| torque (UL): | 7 lb-in |
| permitted degree of polution: | 2 |
|
Reference |
komplett mit Sammelschienenadapter, Last- und Steuerstecker |
