for UL feeder circuits >250V

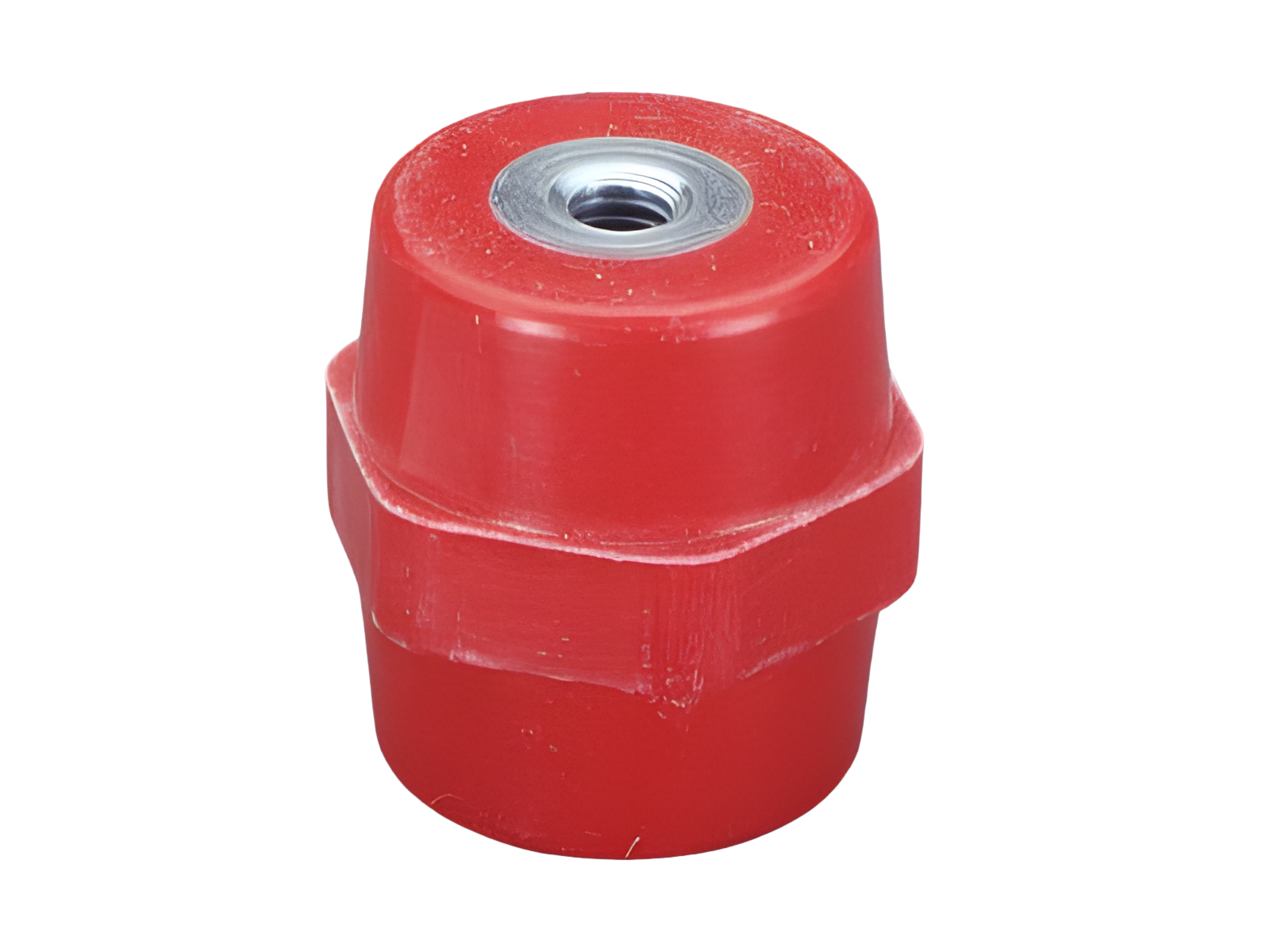

The picture may show a similar product.
Part No.: 05781 000
insulator
with female thread at both sides, length across flats 32
M6 x 35
| Product group | 06 |
| Subgroup | 89 |
| pack size | 20 |
| EAN | 4021267057817 |
| ETIM 5.0 | EC001166 |
| ETIM 8.0 | EC001166 |
Standards
IEC 61439-1:2020
CCC approval: no certification required
| Details IEC | |
| Standards | |
| IEC 61439-1:2020 |
| Electrical data IEC | |
| rated voltage (IEC) AC: | 1500 V |
| rated voltage (IEC) DC: | 1500 V |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 0,0 W.
(The power dissipation at full load would be 0,0 W.)
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| min. permitted operation temperature | -40 |
| max. permitted operation temperature | 130 |
| Mechanical data | |
| W x H x D: | 32 x 32 x 35 |
| weight: | 7,0 kg/100 |
| Terminal points | |
| female thread | |
| M6 | |
| Material properties | |
| halogen-free: | Yes |
|
The installation of the insulator is required on a flat surface on both sides. The fixing screw must be fixed on both surfaces. |
|
|
no data |
|
