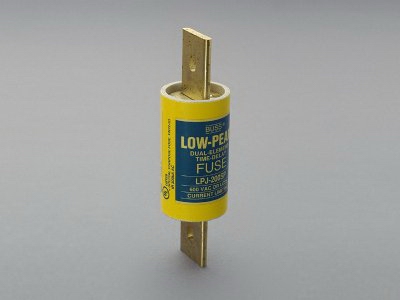

fuse link 110 A (03218)

The picture may show a similar product.

Description

Part No.: 03218 000

fuse link 110 A

-Eaton-

600 V AC, fast acting

Class J, 41x146

no longer available

Product group 22
Subgroup 34
pack size 1
EAN 4021267032180

Approvals

Standards



UL 248-8

UL 248-1

Approvals

CSA , UL

type number: JKS

UL file: E4273, UL category (for USA): JDDZ https://www.ul.com

CSA file: 53787, CSA class: 1422-02 https://directories.csa-international.org

Technical data

size: Class J 200 A
Details IEC
Standards

operation class fast acting
Details UL
Standards
UL 248-8
UL 248-1
Electrical data UL
rated current (UL): 110 A
rated voltage (UL) AC: 600 V
SCCR: 200 kA
Mechanical data
W x H x D: 41 x 146 x 41
weight: 35.5 kg/100

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

CAD Daten WSCAD

Downloads

| General technical information

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

Usage

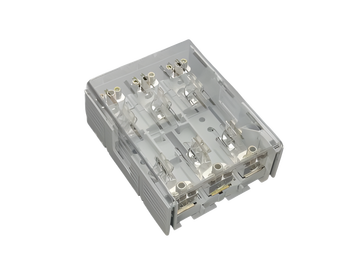

33307 000
QUADRON®Panel
holder for cylindrical fuses
Size Class J 200 A
Class J / 3P, terminal 150 mm²
200 A / 600 V (41x146)
for mounting plate
