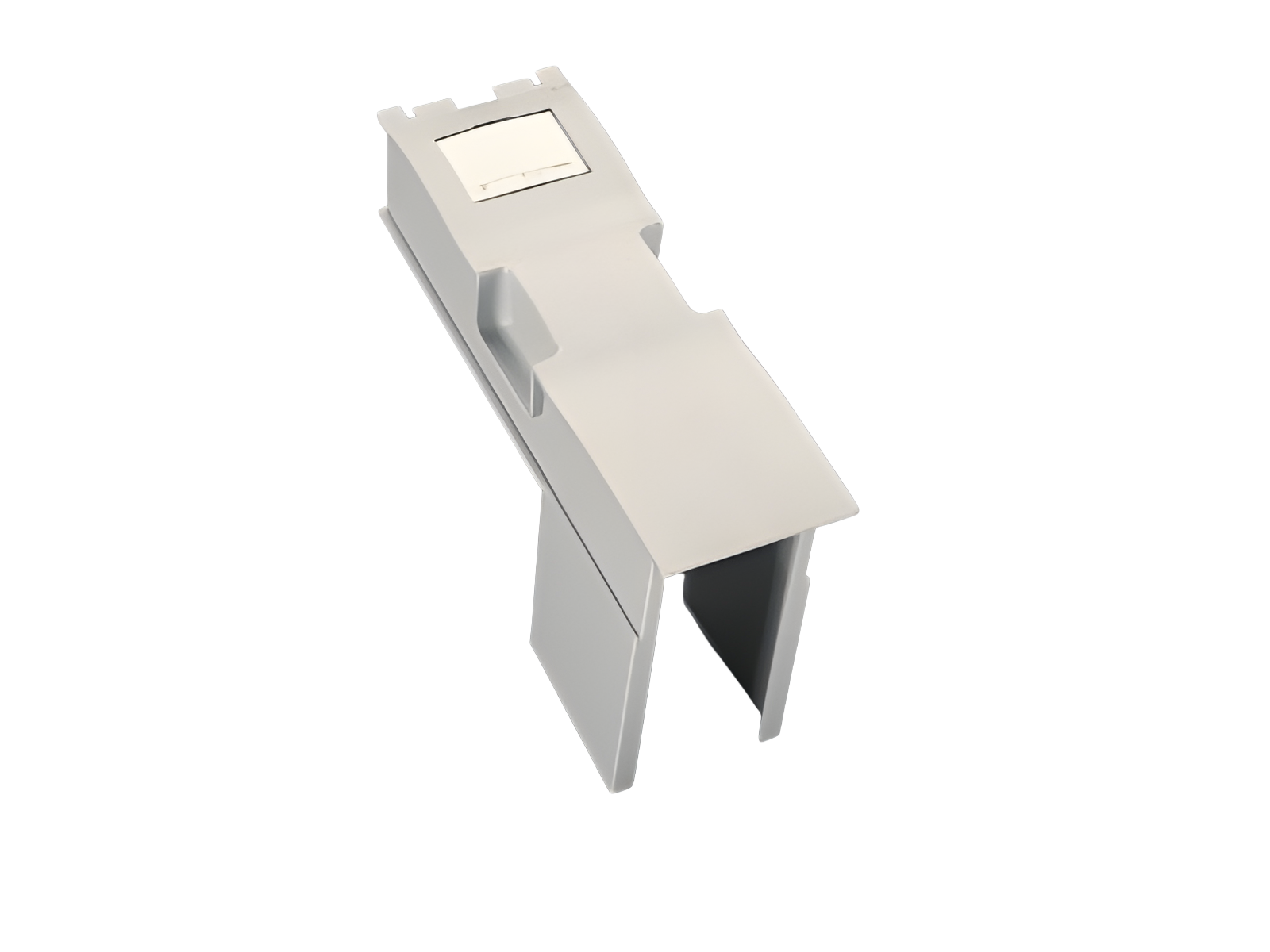

connection cover (33280)

The picture may show a similar product.

Description

Part No.: 33280000

connection cover

size 00

for 33234, 33235

Product group 12
Subgroup 70
pack size 2
EAN 4021267332808
ECLASS 6.1 27142190
ECLASS 7.1 27142190
ETIM 4.0 EC002498
ETIM 5.0 EC002498

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Technical data

Details IEC
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Mechanical data
weight: 9.0 kg/100

Application notes

short-circuit withstandability: not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| CAD model 3D PDF

| CAD model 3D STP

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Usage

33384000
QUADRON®100Energy
NH in-line fuse base, 160 A
wedge terminal 70 mm²
size 00
for busbars: 30, 40, 50, 60 x 10
More

33285000
in-line fuse switch-disconnector 160 A
screw M8 / clamp 70 mm², with electronic fuse monitoring
size 00
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

33234000
in-line fuse switch-disconnector 160 A
screw M8 / clamp 70 mm²
size 00
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

33286000
in-line fuse switch-disconnector 160 A
screw M8 / clamp 70mm², with electron. fuse monitoring
size 00
for busbars: 30, 40, 50, 60 x 10
More

33328000
QUADRON®Panel
NH fuse switch-disconnector size 00, 160 A, panel mounting
clamp 70 mm²
with electronic fuse monitoring
More

33235000
in-line fuse switch-disconnector 160 A
screw M8 / clamp 70mm²
size 00
for busbars: 30, 40, 50, 60 x 10
More
