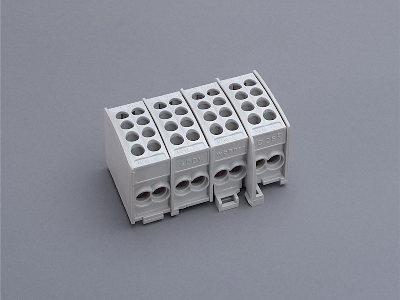

main branch terminal (02604000)

Details IEC

Standards

DIN VDE 0603-2/03.98

Electrical data IEC
rated voltage (IEC) AC:	400 V

rated voltage (IEC) DC:

400 V

rated surge voltage Uimp :

6 kV

Supplementary data IEC

The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel.

max. permitted voltage (IEC) AC:	690 V
max. permitted voltage (IEC) DC:	690 V

Mechanical data
W x H x D:	81 x 56 x 39
weight:	27,1 kg/100
poles:	4-polig
Mounting:	for mounting rail

Terminal points
Buchsenklemme
min. cross-section:	1,5 mm²
max. cross-section:	25 mm²
re:	2.5 - 25 mm²
rm:	2.5 - 25 mm²
f + AE:	1.5 - 16 mm²
(f + AE may not fit with max. cross-section)
Md min.:	2,4 Nm
Md max.:	3,6 Nm
Not suitable for aluminium cables !

Not suitable for aluminium cables !

Two clamp screws for making safe contact are located at each point.
