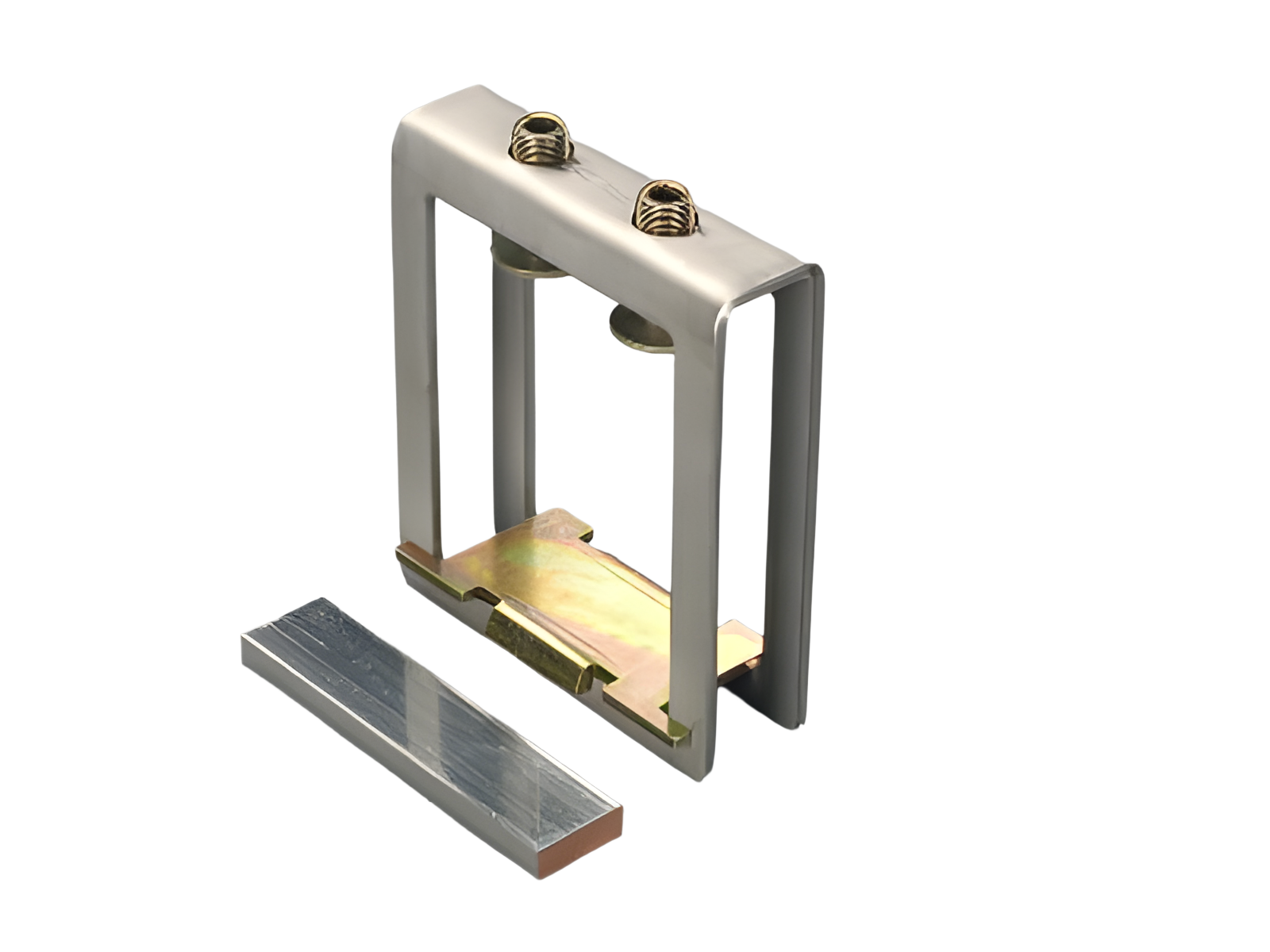

The picture may show a similar product.
Part No.: 01186000
CRITO®
profile terminal
1200 - 3600 mm²
terminal space 101 x 23-45
for busbars triple-T section
System
60Classic, centre feed unit
Advantages of the product
also rigid copper busbars can be connected if they are installed without mechnical tension
| Product group | 07 |
| Subgroup | 30 |
| pack size | 3 |
| EAN | 4021267011864 |
| ECLASS 6.1 | 27141146 |
| ECLASS 7.1 | 27141146 |
| ETIM 4.0 | EC000001 |
| ETIM 5.0 | EC000001 |
Standards
IEC 61439-1:2020
UL 508
Approvals
CSA , UL
type number: HH101.2
UL file: E123577, UL category (for USA): NMTR2 https://www.ul.com
UL file: E123577, UL category (for Canada): NMTR8 https://www.ul.com
CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
CCC approval: no certification required
| Details IEC | |
| Standards | |
| IEC 61439-1:2020 |
| Electrical data IEC | |
| rated current (IEC): | 2500 A |
| rated voltage (IEC) AC: | 800 V |
| rated peak withstand current Ipk max.: | 107 kA |
| rated short-time withstand current Icw (1.0 s) max.: | 51.1 kA |
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| max. permitted voltage (IEC) AC: | 1000 V |
| max. permitted voltage (IEC) DC: | 1500 V |
| current carrying capacity for centre feed: | 3,200 A |
| Details UL | |
| Standards | |
| UL 508 |
| Electrical data UL | |
| rated current (UL): | 1800 A |
| rated voltage (UL) AC: | 600 V |
| rated frequency (UL): | 50 / 60 Hz |
| SCCR: | 25 kA |
| Mechanical data | |
| W x H x D: | 132 x 45 x 154 |
| weight: | 172.7 kg/100 |
| for busbars: | triple-T section |
In order to comply with the required air section as per UL508a, a suitable shrouding must be used.
| Terminal points | |
| min. cross-section: | 1,600 mm² |
| max. cross-section: | 3,600 mm² |
| Terminal space: | 101 x 23 - 45 |
| Not suitable for aluminium cables ! | |
|
terminal space 101 x 23-45 |
|
| Not suitable for aluminium cables ! | |
| The insulation performance of the article depends on the installation conditions. | |
|
Reference |
3 terminals are needed for a 3-pole connection. Insert separators when connecting laminated copper busbars in parallel. |
