special gauge element 20 A (31320)

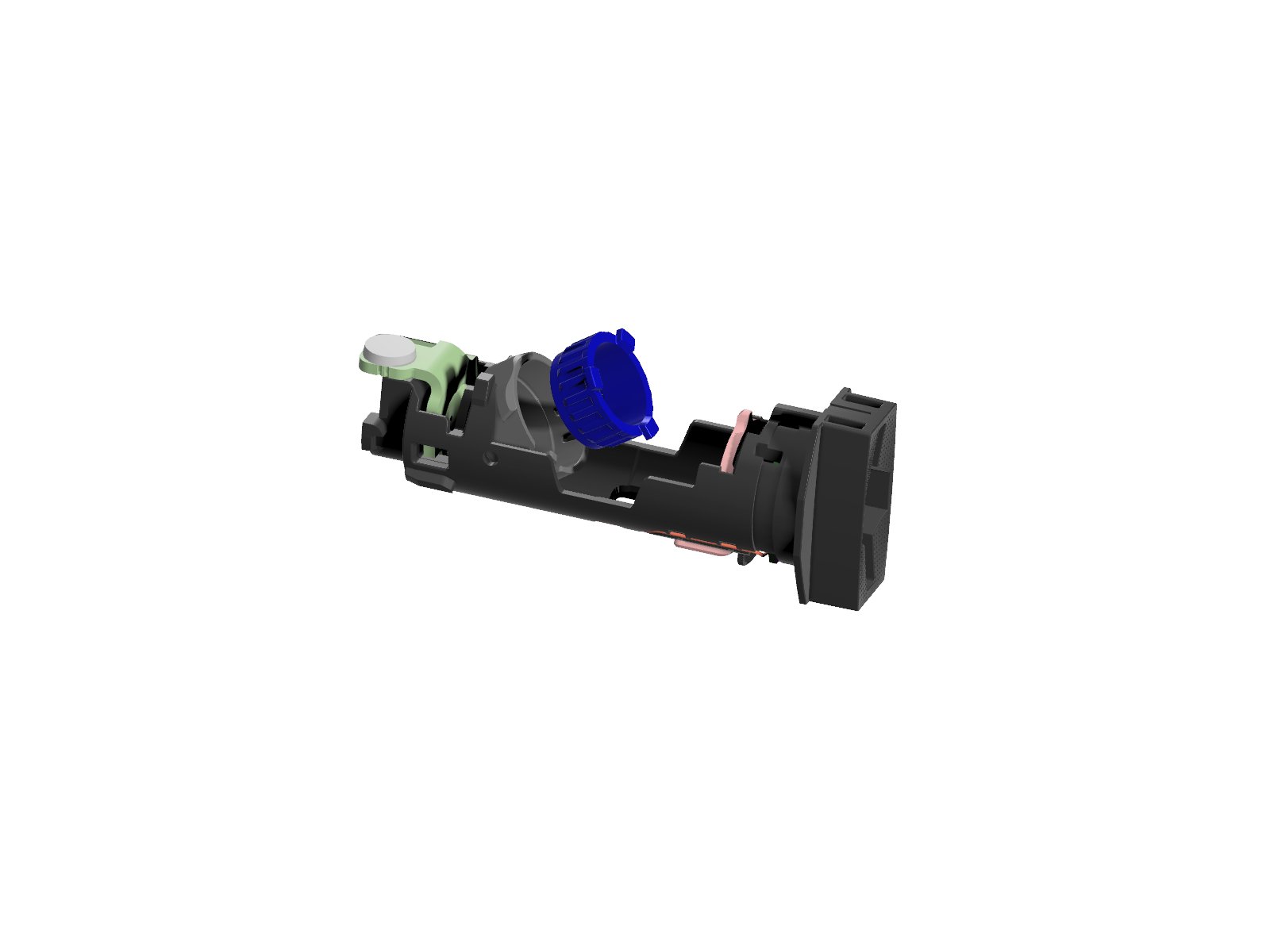

The picture may show a similar product.

Description

Part No.: 31320 000A

special gauge element 20 A

blue

for fuse links D02

NEW

Product group 22
Subgroup 03
pack size 30
EAN 4021267017194
ECLASS 6.1 27142111
ECLASS 7.1 27142111
ETIM 4.0 EC000278
ETIM 5.0 EC000278

Approvals

Standards

IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-3:2010 + A1:2013 + A2:2019

Technical data

Details IEC
Standards
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-3:2010 + A1:2013 + A2:2019
Electrical data IEC
rated current (IEC): 20 A

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 0.0 W.

(The power dissipation at full load would be 0.0 W.)

Mechanical data
weight: 0.1 kg/100

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

CAD Daten WSCAD

Downloads

| General technical information

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Usage

31260 000A
SECUR®Crossboard
switch-disconnector-fuse
for D01 and D02 fuses
35 A / 3P
indication (LED) of a tripped fuse link
operator independent switching (snap-action mechanism)
connection bottom
NEW
