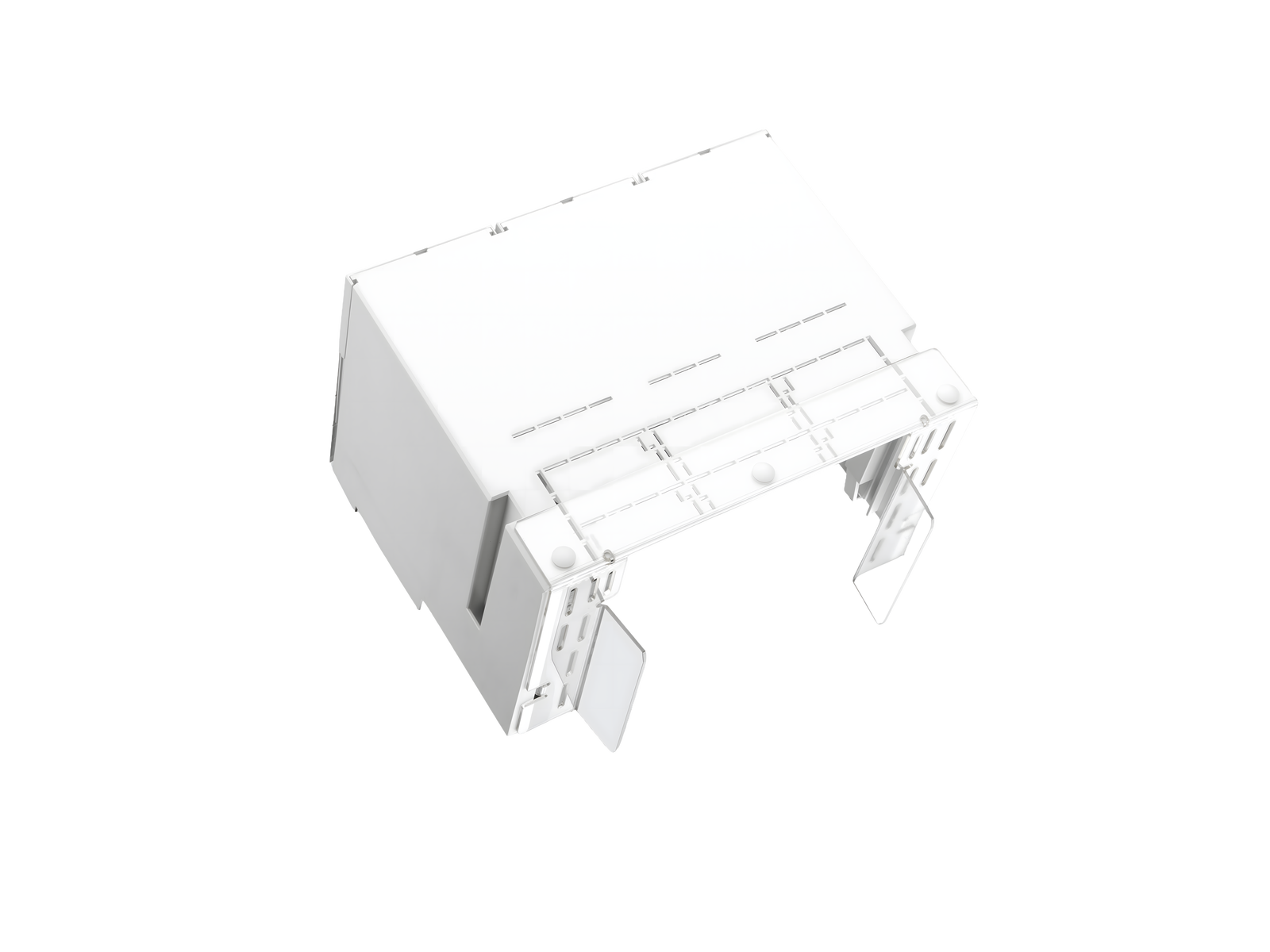

IP20 protection cover (front) (32702)

The picture may show a similar product.

Description

Part No.: 32702 000A

IP20 protection cover (front)

incl. 3 top covers

300 mm wide

for Schneider Electric NS630B, NS800, NS1000, NS1250, NS1600

System

185Power

Product group 05
Subgroup 57
pack size 1
EAN 4021267327026
ECLASS 6.1 27370390
ECLASS 7.1 27370390
ETIM 4.0 EC002498
ETIM 5.0 EC002498

Approvals

Standards

IEC 61439-1:2020

type number: C185-E

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2020
Mechanical data
W x H x D: 297 x 232 x 194
weight: 122.8 kg/100
poles: 3-pole

Application notes

not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit
