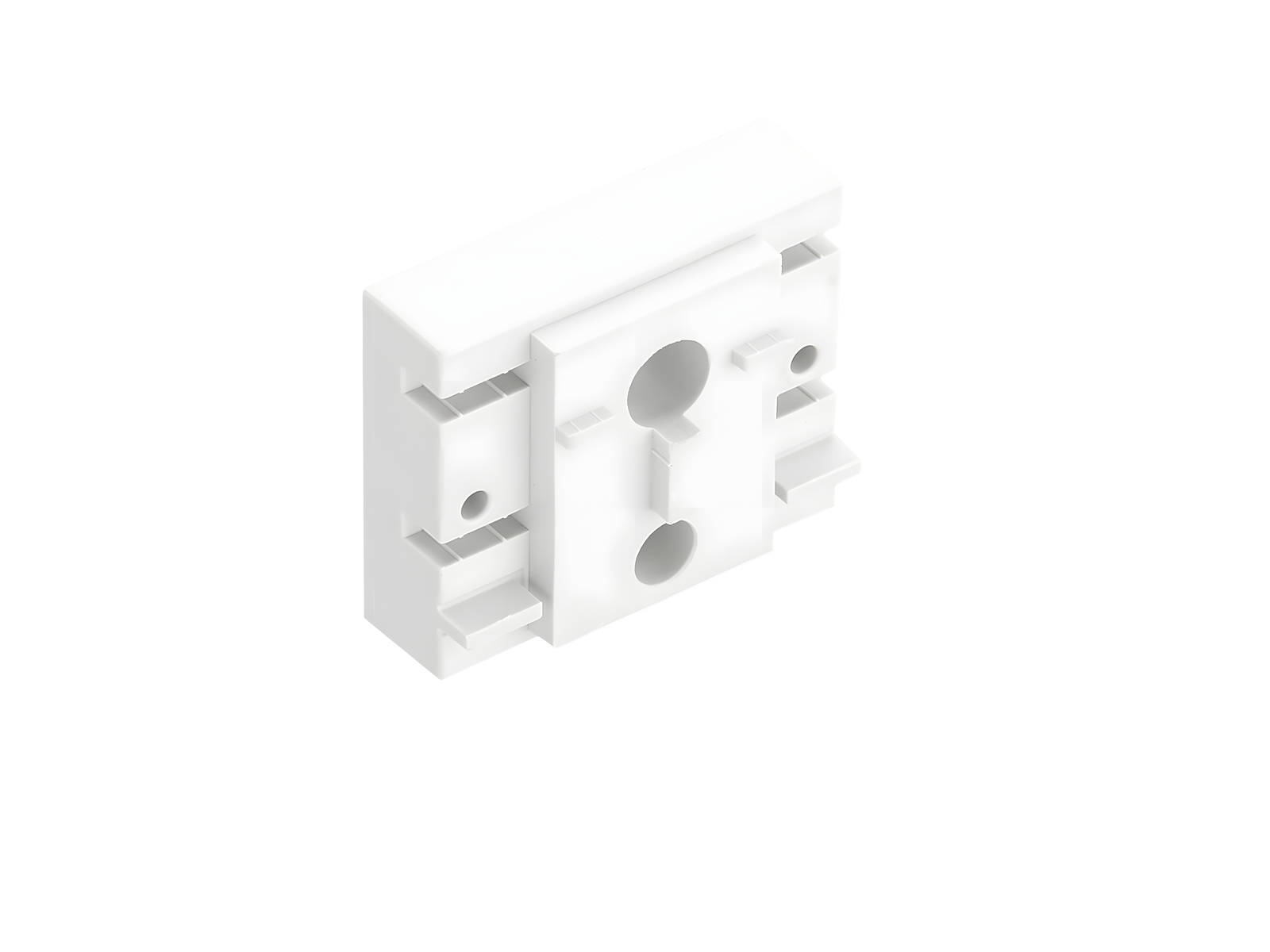

spacer (01421)

The picture may show a similar product.

Description

Part No.: 01421000A

spacer

set, suitable for 01430

System

185Power

Product group 06
Subgroup 27
pack size 1
EAN 4021267014216
ECLASS 6.1 27370390
ECLASS 7.1 27370390
ETIM 4.0 EC002498
ETIM 5.0 EC002498

Approvals

Standards

IEC 61439-1:2020

UL 508

Approvals

UL

for UL feeder circuits >250V

type number: D185

UL file: E123577, UL category (for USA): NMTR https://www.ul.com

UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2020
Details UL
Standards
UL 508
for UL feeder circuits >250V
Electrical data UL
rated voltage (UL) AC: 1000 V
rated frequency (UL): 50 / 60 Hz
Mechanical data
W x H x D: 47 x 40 x 19
weight: 13.1 kg/100

Application notes

Reference

set consisting of 4 pieces, required per one busbar support

for UL feeder circuits >250V

Links

Downloads

Usage

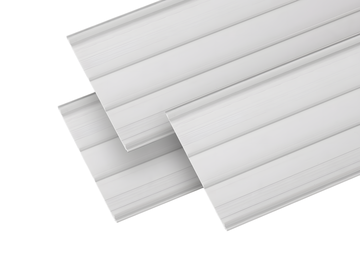

01436000A
system shrouding, rear
set for busbar support distance 700 mm (centre to centre)
More

01420000A
system shrouding, rear
set for busbar support distance 550 mm (centre to centre)
More

01430000A
universal busbar support

for busbars: 30, 40, 60, 80, 100, 120 x 10
More
