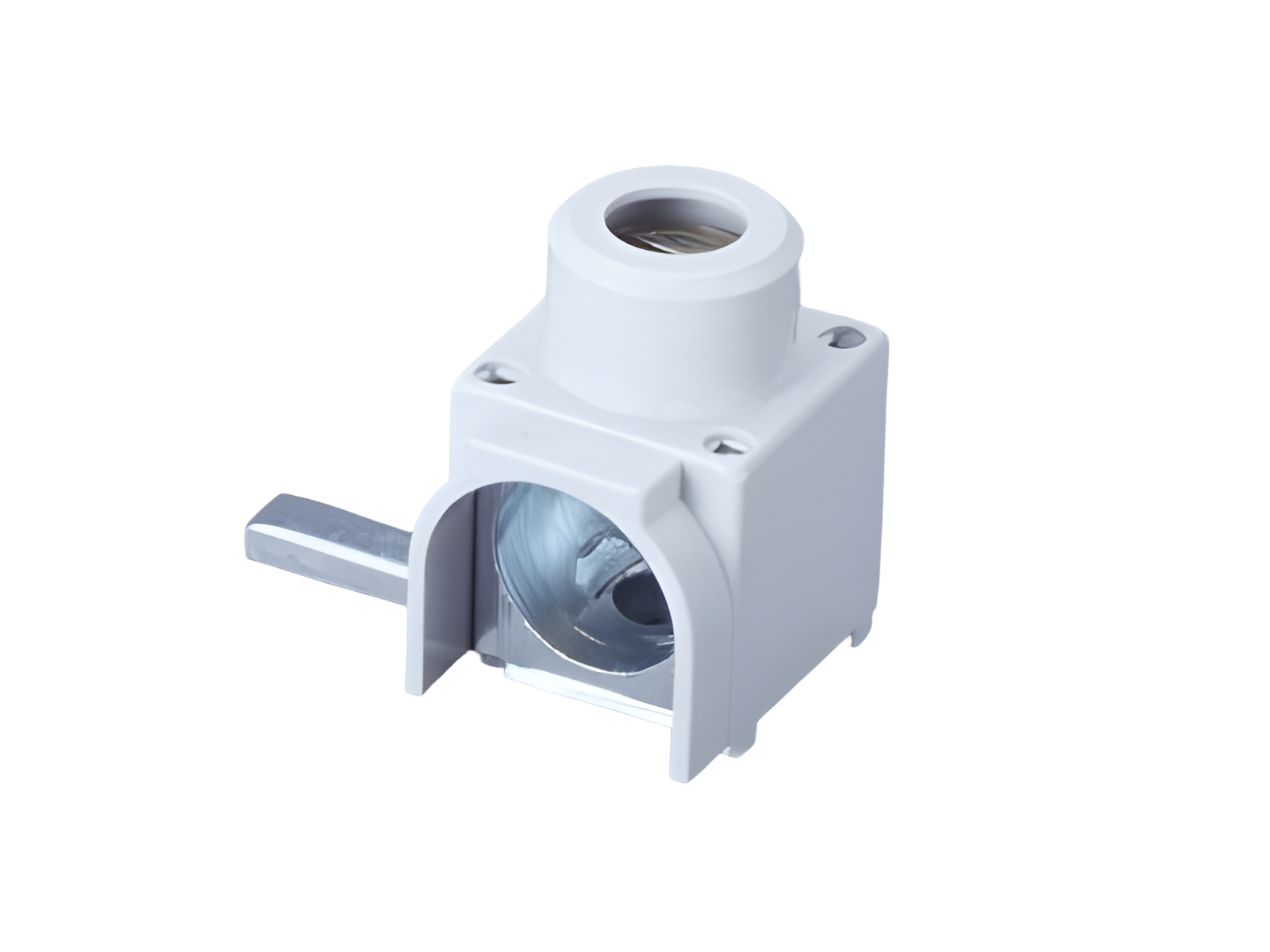

connection terminal, side connection (31028)

The picture may show a similar product.

Description

Part No.: 31028000A

connection terminal, side connection

6 - 50 mm²

for 31014, 31024, 31309, 31311

Product group 07
Subgroup 26
pack size 25
EAN 4021267310288
ECLASS 6.1 27371390
ECLASS 7.1 27141146
ETIM 4.0 EC000001
ETIM 5.0 EC000001

Approvals

Standards

IEC 61439-1:2020

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2020
Electrical data IEC
rated current (IEC): 125 A
rated voltage (IEC) AC: 690 V
rated surge voltage Uimp : 4 kV

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 0.0 W.

(The power dissipation at full load would be 0.0 W.)

Supplementary data IEC

The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel.
max. permitted voltage (IEC) AC: 690 V
max. permitted voltage (IEC) DC: 1000 V
Mechanical data
W x H x D: 20 x 17 x 26
weight: 2.5 kg/100
Terminal points
min. cross-section: 6 mm²
max. cross-section: 50 mm²
Not suitable for aluminium cables !


6 - 50mm² round, solid and stranded
4 - 35mm² flexible with wire-end ferrule
Md 3.5Nm
max. connection diameter 10mm

Application notes

Not suitable for aluminium cables !
The insulation performance of the article depends on the installation conditions.

Reference

Recommended stripping of the insulation on the connection lead approx. 14mm

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Usage

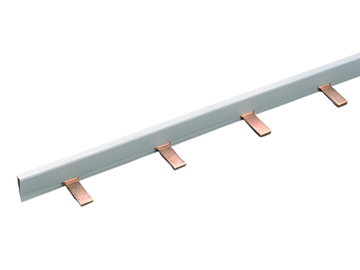

31311000A
1-pole comb type busbar, for E33, pitch 50 mm
80 A, 1 m long
16 mm²
More

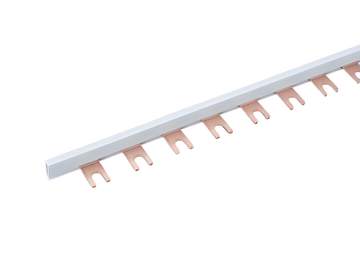

31024000A
comb type busbar, 1-pole, fork type, pitch 27 mm
80 A, 1 m long
16 mm²
More

31309000A
1-pole comb-type busbar, for E27, pitch 40 mm
80 A, 1 m long
16 mm²
More

31014000A
comb-type busbar, 1-pole, bridge type, pitch 27 mm
80 A, 1 m long
16 mm²
More

31173000A
TRITON®Panel
D fuse base, panel-mounting
E 27 / 25 A / 1P, for screw-in gauge rings
touch protected acc. to DGUV V3
More

31291000
TRITON®Panel
D0 fuse base, panel-mounting
E 18 / 63 A / 1P
touch protected acc. to DGUV V3
More

31175000A
TRITON®Panel
D fuse base, panel-mounting
E 33 / 63 A / 1P, for screw-in gauge rings
touch protected acc. to DGUV V3
More

31278000
AMBUS®Panel
holder for cylindrical fuses, for semiconductor fuses
14 x 51 / 1P
50 A / 690 V
More

31115000
AMBUS®Panel
holder for cylindrical fuses
14x51 / 1P
50 A / 690 V
More

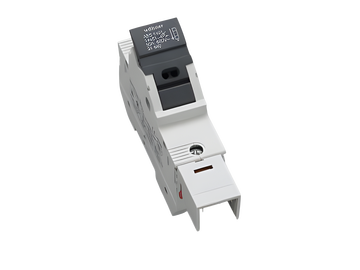

31940000
AMBUS®Panel
holder for cylindrical fuses, with pilot switch
14 x 51 / 1P
50 A / 690 V
for fuse links with striker pin
More

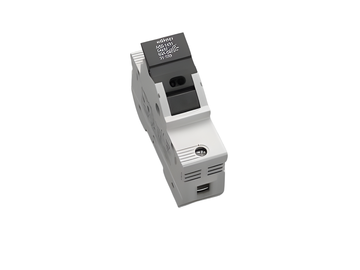

31135000
