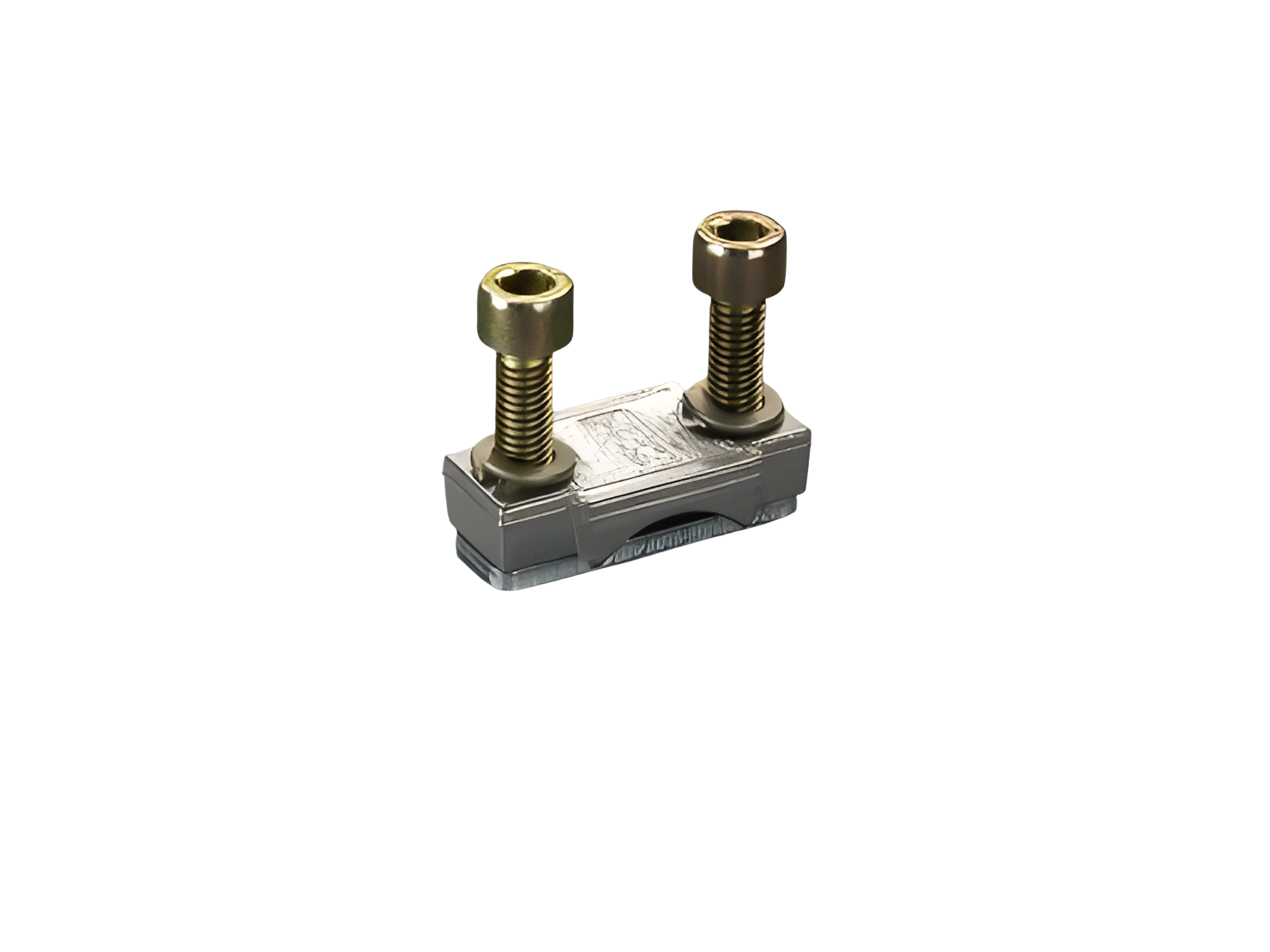

The picture may show a similar product.
Part No.: 33165 000
clamp connector for Cu cables
150 - 300 mm²
for QCB-NH2, LTS-F 400, LTS 630
| Product group | 09 |
| Subgroup | 51 |
| pack size | 1 |
| EAN | 4021267331658 |
| ECLASS 6.1 | 27142190 |
| ECLASS 7.1 | 27142190 |
| ETIM 4.0 | EC002498 |
| ETIM 5.0 | EC002498 |
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
| Details IEC | |
| Standards | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
Electrical data
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 0.0 W.
(The power dissipation at full load would be 0.0 W.)
| Mechanical data | |
| weight: | 12.5 kg/100 |
| Terminal points | |
| min. cross-section: | 150 mm² |
| max. cross-section: | 300 mm² |
| rm: | 150 - 300 mm² |
| f + AE: | 150 - 300 mm² |
| (f + AE may not fit with max. cross-section) | |
| Not suitable for aluminium cables ! | |
| lam. Cu width: | 20 - 25 mm |
| lam. Cu thickness: | 1 - 10 mm |
| Not suitable for aluminium cables ! | |
|
determined by main product |
|
