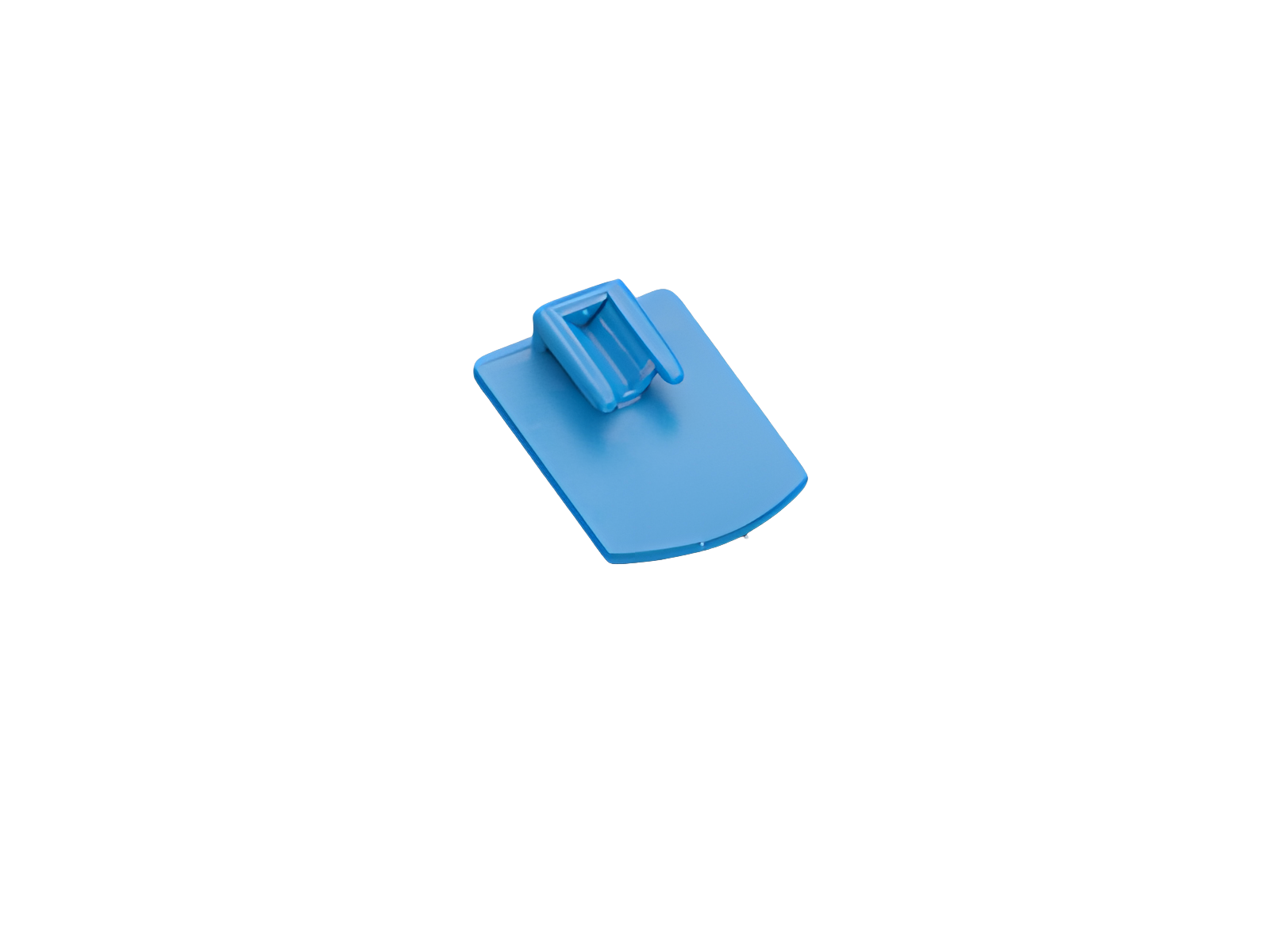

mounting rail end stop (32969)

The picture may show a similar product.

Description

Part No.: 32969 000

mounting rail end stop

System

60Classic

Product group 05
Subgroup 57
pack size 50
EAN 4021267329693
ECLASS 6.1 27370390
ECLASS 7.1 27370390
ETIM 4.0 EC002498
ETIM 5.0 EC002498

Approvals

Standards

IEC 61439-1:2020

Approvals

for UL feeder circuits >250V

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2020
for UL feeder circuits >250V
Mechanical data
W x H x D: 1 x 10 x 15
weight: 0.1 kg/100

Application notes

not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit

for UL feeder circuits >250V

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

CAD Daten WSCAD

Downloads

| General technical information

| CAD model 3D PDF

| CAD model 3D STP

| CAD symbol 2D DXF

| Data packet EPlan (*.edz)

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Usage

32420 000
EQUES®60Classic
busbar component support
2 adjustable mounting rails
45 x 200, with removable upper section, without electrical connection
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32478 000
EQUES®60Classic
busbar component support
2 adjustable mounting rails
54 x 200, without electrical connection
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32426 000
EQUES®60Classic
busbar component support
2 adjustable mounting rails
54 x 260, with removable upper section, without electrical connection
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32425 000
EQUES®60Classic
busbar component support
2 adjustable mounting rails
45 x 260, with removable upper section, without electrical connection
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32421 000
EQUES®60Classic
busbar component support
2 adjustable mounting rails
54 x 200, with removable upper section, without electrical connection
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32484 000
EQUES®60Classic
busbar component support
2 adjustable mounting rails
45 x 260, without electrical connection
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32477 000
EQUES®60Classic
busbar component support
2 adjustable mounting rails
45 x 200, without electrical connection
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32485 000
EQUES®60Classic
busbar component support
2 adjustable mounting rails
54 x 260, without electrical connection
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32412 000
EQUES®60Classic
busbar adapter 45 A
2 adjustable mounting rails
54 x 200, with removable upper section and leads AWG 8 (10 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32457 000
EQUES®60Classic
busbar adapter 63 A
1 adjustable mounting rail
72 x 200, with leads AWG 8 (10 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32455 000
EQUES®60Classic
busbar adapter 63 A
2 adjustable mounting rails
54 x 200, with leads AWG 8 (10 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32408 000
EQUES®60Classic
busbar adapter 32 A
3-pole
2 adjustable mounting rails
54 x 260, with removable upper section and leads AWG 10 (6 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32402 000
EQUES®60Classic
busbar adapter 25 A
3-pole
2 adjustable mounting rails
45 x 260, with removable upper section and leads AWG 12 (4 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32400 000
EQUES®60Classic
busbar adapter 25 A
2 adjustable mounting rails
45 x 200, with removable upper section and leads AWG 12 (4 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32467 000
EQUES®60Classic
busbar adapter 80 A
2 adjustable mounting rails
54 x 200, without leads, with terminals 16 mm², operated from behind
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32436 000
EQUES®60Classic
busbar adapter 25 A
2 adjustable mounting rails
45 x 200, with screw terminals 6mm² from rear
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32464 000
EQUES®60Classic
busbar adapter 80 A
1 adjustable mounting rail
54 x 200, without leads, with terminals 1.5 - 16 mm², front operated
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32486 000
EQUES®60Classic
busbar adapter 32 A
1 adjustable mounting rail
45 x 200, without leads, with spring terminals 1.5 - 6 mm² from front
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32459 000
EQUES®60Classic
busbar adapter 63 A
2 adjustable mounting rails

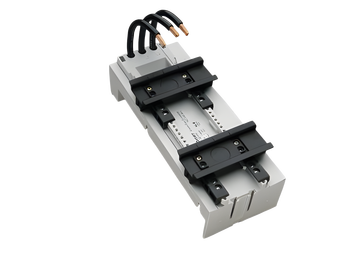

81 x 200, with leads AWG 8 (10 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32466 000
EQUES®60Classic
busbar adapter 80 A
1 adjustable mounting rail
54 x 200, without leads, with terminals 16 mm², operated from behind
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32469 000
EQUES®60Classic
busbar adapter 80 A
1 adjustable mounting rail

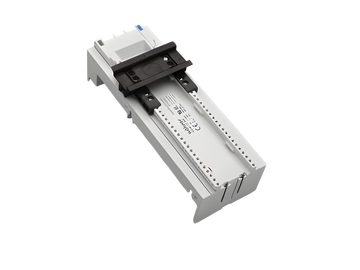

72 x 200, without leads, with terminals 16 mm², operated from behind
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32487 000
EQUES®60Classic
busbar adapter 32 A
3-pole
2 adjustable mounting rails
45 x 260, without leads, with spring terminals 1.5 - 6 mm² from front
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32454 000
EQUES®60Classic
busbar adapter 63 A
1 adjustable mounting rail
54 x 200, with leads AWG 8 (10 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32635 000
EQUES®60Classic
busbar component support
1 adjustable mounting rail and 1 positioner for Siemens S00
45 x 200, without electrical connection
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32598 000
EQUES®60Classic
busbar adapter 80 A
2 adjustable mounting rails

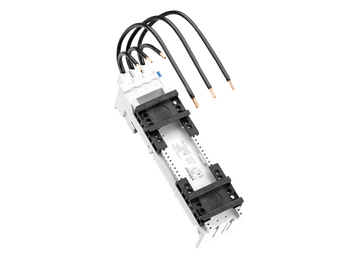

54 x 200, with twin cables AWG10 (6 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32439 000
EQUES®60Classic
busbar adapter 25 A
3-pole
2 adjustable mounting rails
45 x 260, with screw terminals 6mm² from rear
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32442 000
EQUES®60Classic
busbar adapter 32 A
2 adjustable mounting rails
54 x 200, with leads AWG 10 (6 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32416 000
EQUES®60Classic
busbar adapter 45 A
3-pole
2 adjustable mounting rails
54 x 260, with removable upper section and leads AWG 8 (10 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32461 000
EQUES®60Classic
busbar adapter 63 A
3-pole
2 adjustable mounting rails
54 x 260, with leads AWG 8 (10 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32431 000
EQUES®60Classic
busbar adapter 25 A
2 adjustable mounting rails

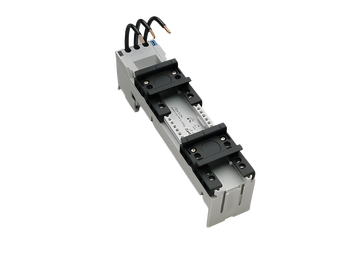

45 x 200, with leads AWG 12 (4 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32443 000
EQUES®60Classic
busbar adapter 32 A
1 adjustable mounting rail

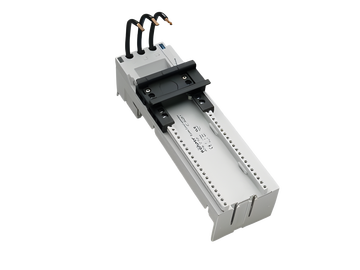

63 x 200, with leads AWG 10 (6 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32444 000
EQUES®60Classic
busbar adapter 32 A
1 adjustable mounting rail

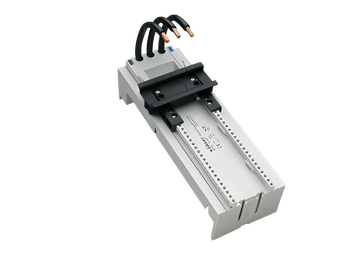

72 x 200, with leads AWG 10 (6 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32465 000
EQUES®60Classic
busbar adapter 80 A
3-pole
2 adjustable mounting rails
54 x 260, without leads, with terminals 1.5 - 16 mm², front operated
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32401 000
EQUES®60Classic
busbar adapter 16 A
for direct starter Allen-Bradley 140M-RC2E, Eaton PKZM0, Siemens S00, Schneider Electric GV2 with spring terminals
45 x 200, with removable upper section and leads AWG 12 (4 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32449 000
EQUES®60Classic
busbar adapter 32 A
3-pole
2 adjustable mounting rails
54 x 260, with leads AWG 10 (6 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32432 000
EQUES®60Classic
busbar adapter 25 A
2 adjustable mounting rails

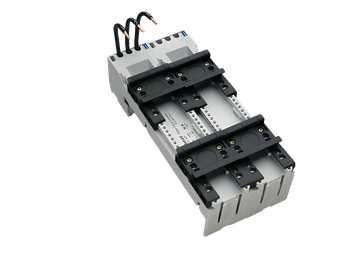

90 x 200, with leads AWG 12 (4 mm²)
