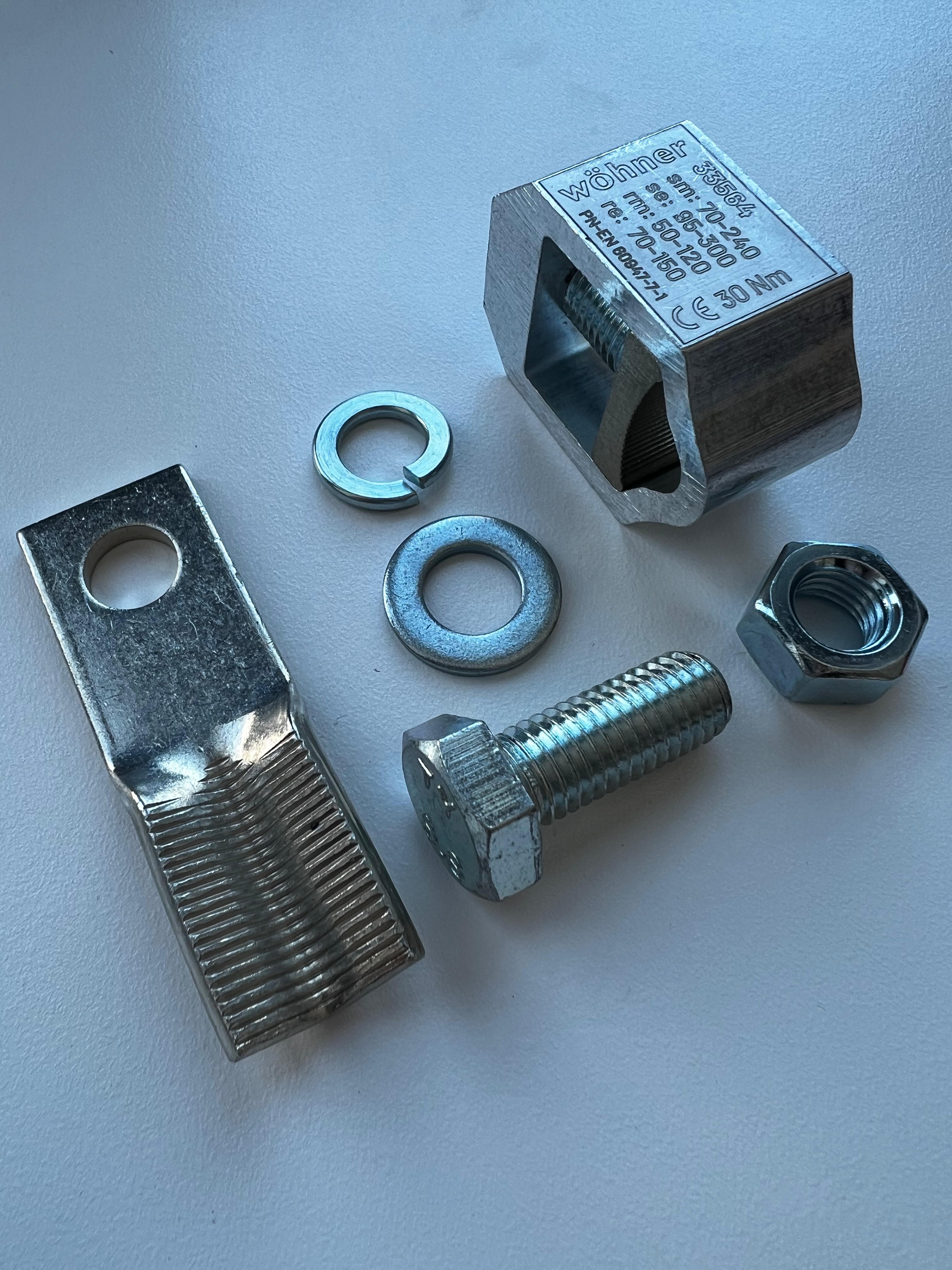

connection kit (33564)

The picture may show a similar product.

Description

Part No.: 33564 000B

connection kit

with 1 V-clamp, without cover

terminal body alu, pressure piece brass

for Cu / Al 120 - 300 mm²

e.g. for drilled PE or N bars

coming soon

System

185Power

Product group 12
Subgroup 70
pack size 1
EAN 4021267335649
ECLASS 6.1 27142190
ECLASS 7.1 27142190
ETIM 4.0 EC002498
ETIM 5.0 EC002498

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Electrical data IEC
rated current (IEC): 100 A

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 0.0 W.

(The power dissipation at full load would be 0.0 W.)

Mechanical data
weight: 22.0 kg/100
Terminal points
v-clamp
min. cross-section: 50 mm²
max. cross-section: 300 mm²
re: 70 - 150 mm²
rm: 50 - 120 mm²
se: 70 - 300 mm²
sm: 70 - 240 mm²
Suitable for aluminium cables.
When using aluminium cables, observe the maintenance instructions.

Application notes

Suitable for aluminium cables.
When using aluminium cables, observe the maintenance instructions.

determined by main product

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

CAD Daten WSCAD

Downloads

| General technical information

| EU declaration of conformity

| Product description (PDF) - draft

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf) - draft

| Text for specification - standard version (*.rtf) - draft
