busbar terminal for longitudinal connection (01200)

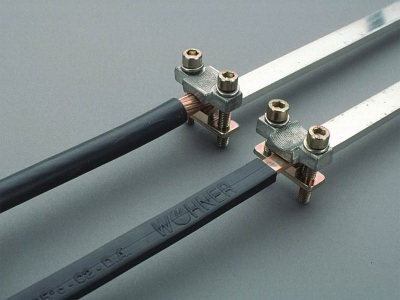

The picture may show a similar product.

Description

Part No.: 01200 000

busbar terminal for longitudinal connection

70 - 150 mm²

no longer available

System

60Classic

Product group 07
Subgroup 19
pack size 3
EAN 4021267012007

Approvals

Standards

IEC 61439-1:2020
IEC 60999-1:1999
IEC 60999-2:2003

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2020
IEC 60999-1:1999
IEC 60999-2:2003
Electrical data IEC
rated voltage (IEC) AC: 690 V
Supplementary data IEC

The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel.
max. permitted voltage (IEC) AC: 1000 V
max. permitted voltage (IEC) DC: 1500 V
Mechanical data
weight: 5.9 kg/100
Terminal points
Not suitable for aluminium cables !
Terminal space: 18 x 4 - 18

Application notes

Not suitable for aluminium cables !
The insulation performance of the article depends on the installation conditions.
