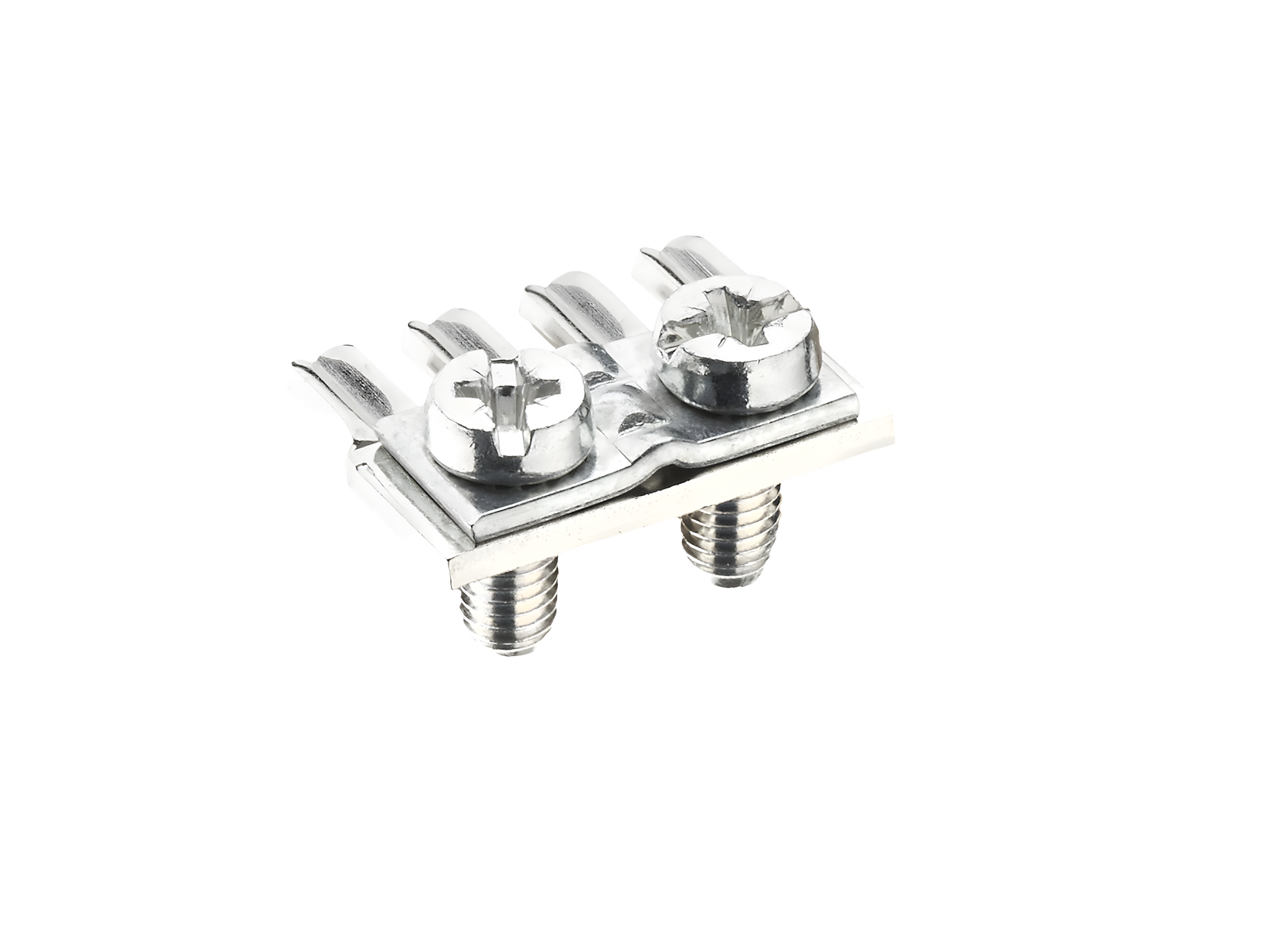

The picture may show a similar product.
Part No.: 01114000
CRITO®
connection terminal for PE/N bar
35 mm²
suitable for PE and N busbars 01126 - 01130
| Product group | 07 |
| Subgroup | 06 |
| pack size | 100 |
| EAN | 4021267011147 |
| ECLASS 6.1 | 27141146 |
| ECLASS 7.1 | 27141146 |
| ETIM 4.0 | EC000001 |
| ETIM 5.0 | EC000001 |
Standards
IEC 61439-1:2020
IEC 60999-1:1999
IEC 60999-2:2003
CCC approval: no certification required
| Details IEC | |
| Standards | |
|
IEC 61439-1:2020 IEC 60999-1:1999 IEC 60999-2:2003 |
| Electrical data IEC | |
| rated voltage (IEC) AC: | 400 V |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 0.0 W.
(The power dissipation at full load would be 0.0 W.)
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| max. permitted voltage (IEC) AC: | 500 V |
| Mechanical data | |
| W x H x D: | 15 x 15 x 15 |
| weight: | 1.4 kg/100 |
| Terminal points | |
| max. cross-section: | 35 mm² |
| Terminal space: | 7 x 7 |
| Not suitable for aluminium cables ! | |
|
1.5 - 25mm² flexible with wire-end ferrule |
|
| Not suitable for aluminium cables ! | |
