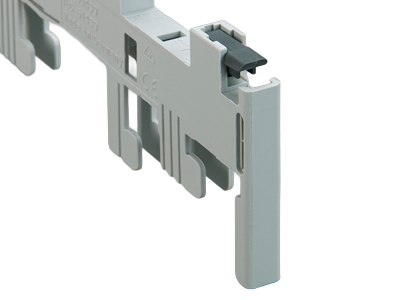

The picture may show a similar product.
Part No.: 32632000
module N
terminal 16 mm²
9 x 160
for busbars 12 x 5
System
30Compact 5P
Advantages of the product
The device can be locked onto the busbar system in a separating position. In this way, complete units 1P+N or 3P+N can be prepared for an isolation test without the leads having to be disconnected. (see assembly manual)
| Product group | 05 |
| Subgroup | 44 |
| pack size | 12 |
| EAN | 4021267326326 |
| ECLASS 6.1 | 27370304 |
| ECLASS 7.1 | 27370304 |
| ETIM 4.0 | EC001531 |
| ETIM 5.0 | EC001531 |
Standards
IEC 61439-1:2020
CCC approval: no certification required
| Details IEC | |
| Standards | |
| IEC 61439-1:2020 |
| Electrical data IEC | |
| rated voltage (IEC) AC: | 690 V |
| rated isolation voltage Ui AC: | 690 V |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 0.5 W.
(The power dissipation at full load would be 0.8 W.)
| Connecting terminal 1.5 - 16mm² |
| Mechanical data | |
| W x H x D: | 9 x 160 x 114 |
| weight: | 4.4 kg/100 |
| for busbars: | 12 x 5 |
|
Reference |
The device cannot be locked onto the busbar system (operating condition) and must always be plugged into module adapters. |
