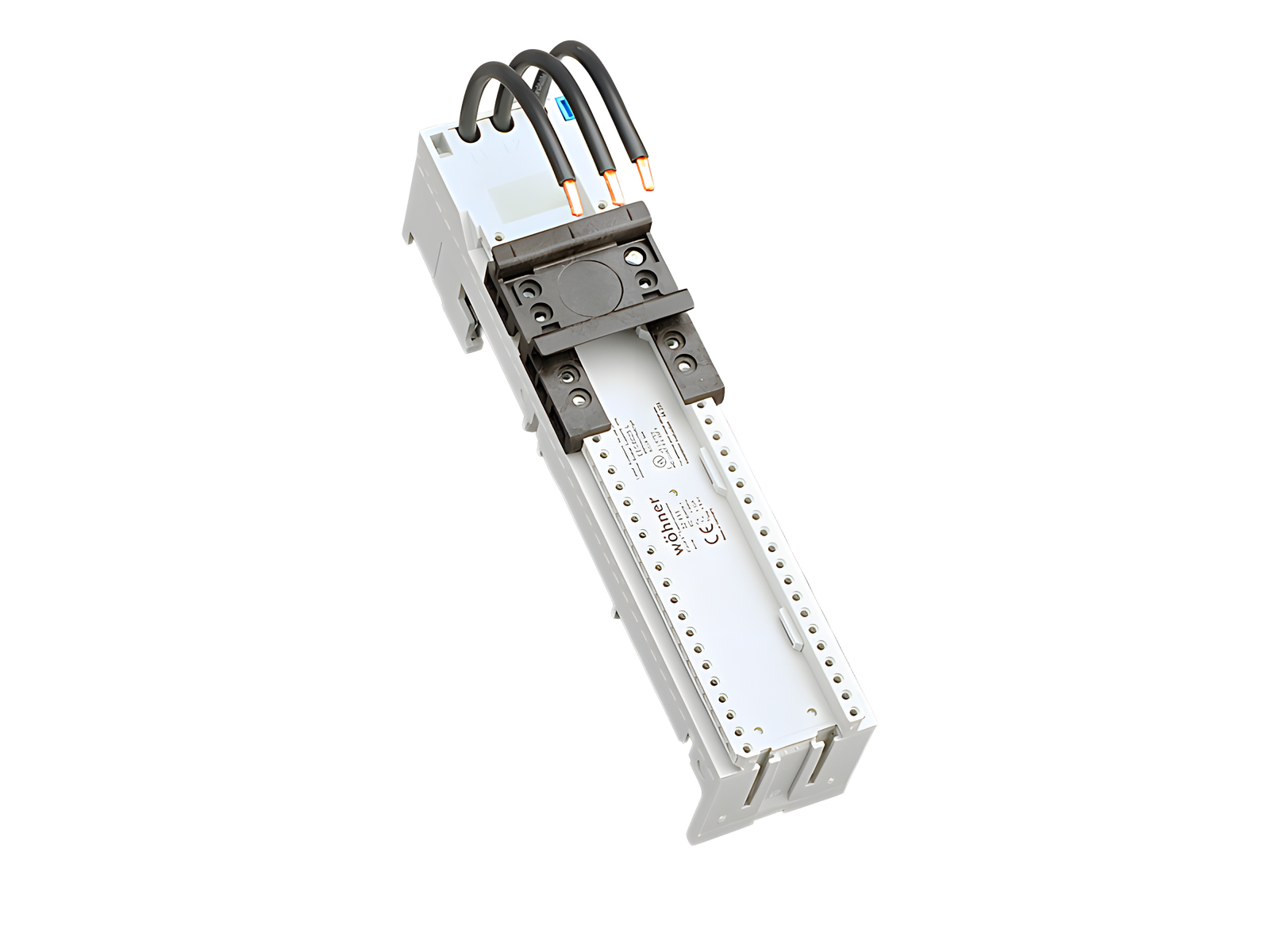

busbar adapter 32 A (32655)

The picture may show a similar product.

Description

Part No.: 32655 000

EQUES®60Classic

busbar adapter 32 A

1 adjustable mounting rail

45 x 200, with leads AWG 10 (6 mm²)

for busbars 12, 15, 20, 25, 30 x 5, 10 and section busbars

System

60Classic

Advantages of the product

Conductor ends ultrasonically sealed.
Click mechanism when pushing onto the busbar.

Product group 05
Subgroup 21
pack size 4
EAN 4021267326555
ECLASS 6.1 27370304
ECLASS 7.1 27370304
ETIM 4.0 EC001531
ETIM 5.0 EC001531

Approvals

Standards

IEC 61439-1:2020

UL 508

Approvals

CSA , UL

for UL feeder circuits >250V

type number: EEC6025-L

UL file: E123577, UL category (for USA): NMTR https://www.ul.com

UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com

CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2020
Electrical data IEC
rated current (IEC): 32 A
rated voltage (IEC) AC: 690 V
rated isolation voltage Ui AC: 800 V
rated surge voltage Uimp : 6 kV

Motorschutzschalter bis 25 A:
    50 kA @ 600 V / Durchlassstrom 7 kA
Motorschutzschalter bis 32 A:
    25 kA @ 480 V / Durchlassstrom 9 kA

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 1.6 W.

(The power dissipation at full load would be 2.5 W.)

Details UL
Standards
UL 508
for UL feeder circuits >250V
Electrical data UL
rated current (UL): 25 A
rated voltage (UL) AC: 600 V
rated frequency (UL): 50 / 60 Hz
SCCR unprotected max.: 5 kA
3 cycles (without OPD) @ 600 V AC
SCCR protected max.: 65 kA
SCCR: 65 kA with any NKJH Comb. Motor Controller 25 A / 480 V AC
65 kA with any NKJH Comb. Motor Controller 16 A / 480 V AC
50 kA with any NKJH Comb. Motor Controller 32 A / 480 V AC
30 kA with any NKJH Comb. Motor Controller 12,5 A / 600 V AC
Mechanical data
W x H x D: 45 x 200 x 63
weight: 33.3 kg/100
poles: 3-pole
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
Terminal points
with leads
AWG10 (6 mm²)
wire stripping: 9 mm

Application notes

There must be a clearance of at least 12 mm above the article to remove it from the busbar system.

Reference

For compact mounting of complete motor circuits with commercially available switchgear and safe mechanical and electrical connection to the busbar system.
short-circuit withstandability: the short-circuit capacity of the combination of adapter and motor starter depends on the motor starter
for UL feeder circuits >250V

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

CAD Daten WSCAD

Downloads

| General technical information

| Mounting instructions

| CAD model 3D PDF

| CAD model 3D STP

| CAD symbol 2D DXF

| Data packet EPlan (*.edz)

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Accessories

accessories for mounting

32969 000
mounting rail end stop
More

further accessories

32947 000
mounting rail 45 mm
for busbar adapters
More

32963 000
side-mounted module for busbar adapters
attachable to both sides
9 x 200
for: EEC60..
More

32979 000A
positioning piece for Eaton PKZ
More

32952 000A
positioning piece for Siemens S00 and S0
More

32940 000A
mounting rail 54 mm
for busbar adapters
More
