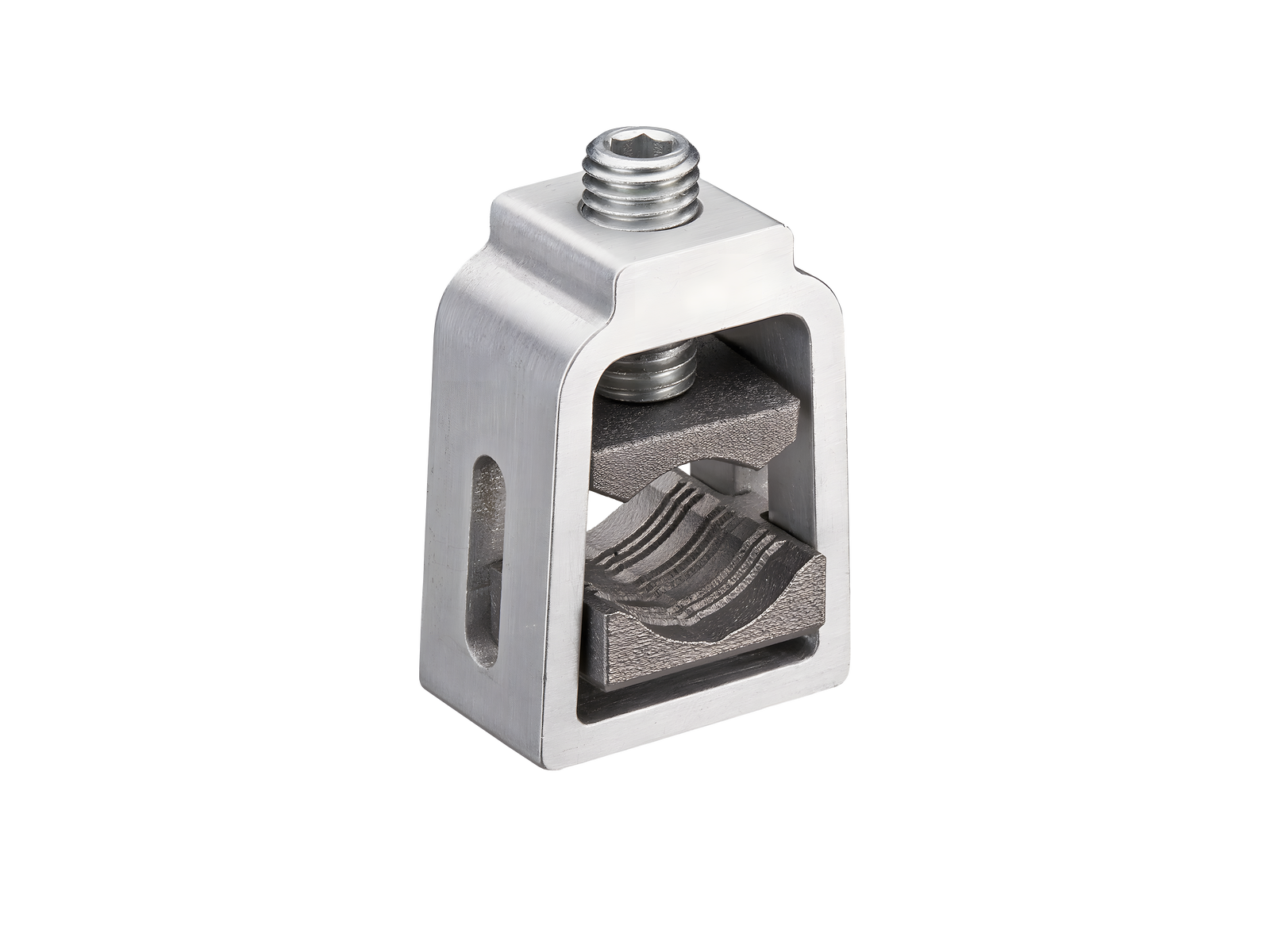

box terminal (33735)

The picture may show a similar product.

Description

Part No.: 33735000A

box terminal

für Cu / Al 70 - 240 mm²

size 1 - 3

System

185Power

Product group 12
Subgroup 70
pack size 3
EAN 4021267337353
ECLASS 6.1 27142190
ECLASS 7.1 27142190
ETIM 4.0 EC002498
ETIM 5.0 EC002498

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Technical data

Details IEC
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Electrical data

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 0.0 W.

(The power dissipation at full load would be 0.0 W.)

Mechanical data
weight: 14.5 kg/100

Cu/Al
1x 70-240mm² sm
1x 95-240mm² se
1x 70-185mm² rm

Terminal points
min. cross-section: 70 mm²
max. cross-section: 240 mm²

Application notes

short-circuit withstandability: determined by main product

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| CAD model 3D PDF

| CAD model 3D STP

| Data packet EPlan (*.edz)

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

| Text for specification - GAEB90 (in German) (*.d81)
