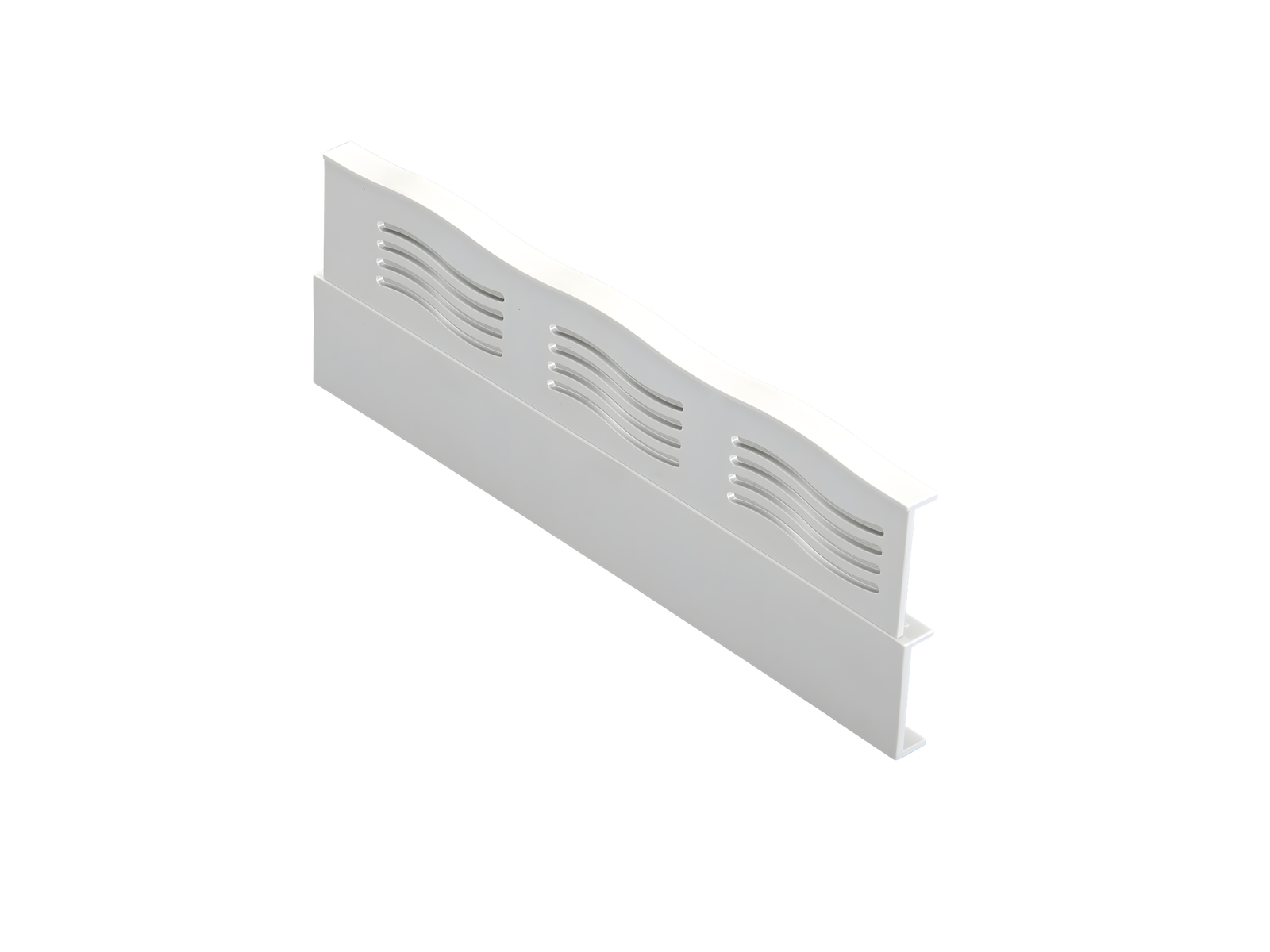

9 mm side module for 31578 and 31579 (31915)

The picture may show a similar product.

Description

Part No.: 31915 000A

9 mm side module for 31578 and 31579

for 5-pole system

System

60Classic

Product group 01
Subgroup 36
pack size 5
EAN 4021267319151
ECLASS 6.1 27142190
ECLASS 7.1 27142190
ETIM 4.0 EC002936
ETIM 5.0 EC002936
ETIM 8.0 EC002936

Approvals

Standards

IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-3:2010 + A1:2013 + A2:2019

Technical data

Details IEC
Standards
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-3:2010 + A1:2013 + A2:2019

Electrical data

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 0.0 W.

(The power dissipation at full load would be 0.0 W.)

Supplementary data IEC

The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel.
max. permitted operation temperature 55
Mechanical data
W x H x D: 9 x 195 x 46
weight: 6.1 kg/100
Material properties
halogen-free: Yes

Application notes

not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

CAD Daten WSCAD

Downloads

| General technical information

| CAD model 3D PDF

| CAD model 3D STP

| CAD symbol 2D DXF

| Data packet EPlan (*.edz)

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Usage

31578 000B
SECUR®60Classic EasyLiner
D0 switch-disconnector-fuse, for 5-pole busbar system
Size D02 / E 18
for D01 and D02 fuses
63 A / 3P
operator independent switching (snap-action mechanism)
connection bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

31579 000B
SECUR®60Classic EasyLiner
D0 busbar mounted switch-disconnector-fuse, for 5-pole busbar system
Size D02 / E 18
for D01 and D02 fuses, with LED
63 A / 3P
indication (LED) of a tripped fuse link
operator independent switching (snap-action mechanism)
connection bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

31588 000A
SECUR®60Classic EasyLiner
D0 switch-disconnector-fuse, for 5-pole busbar system
Size D02 / E 18
for D01 and D02 fuses, for busbar systems 250 A, 400 A and 630 A of company Hensel
63 A / 3P
operator independent switching (snap-action mechanism)
connection bottom
for busbars: 12, 20, 30 x 5, 10
More
