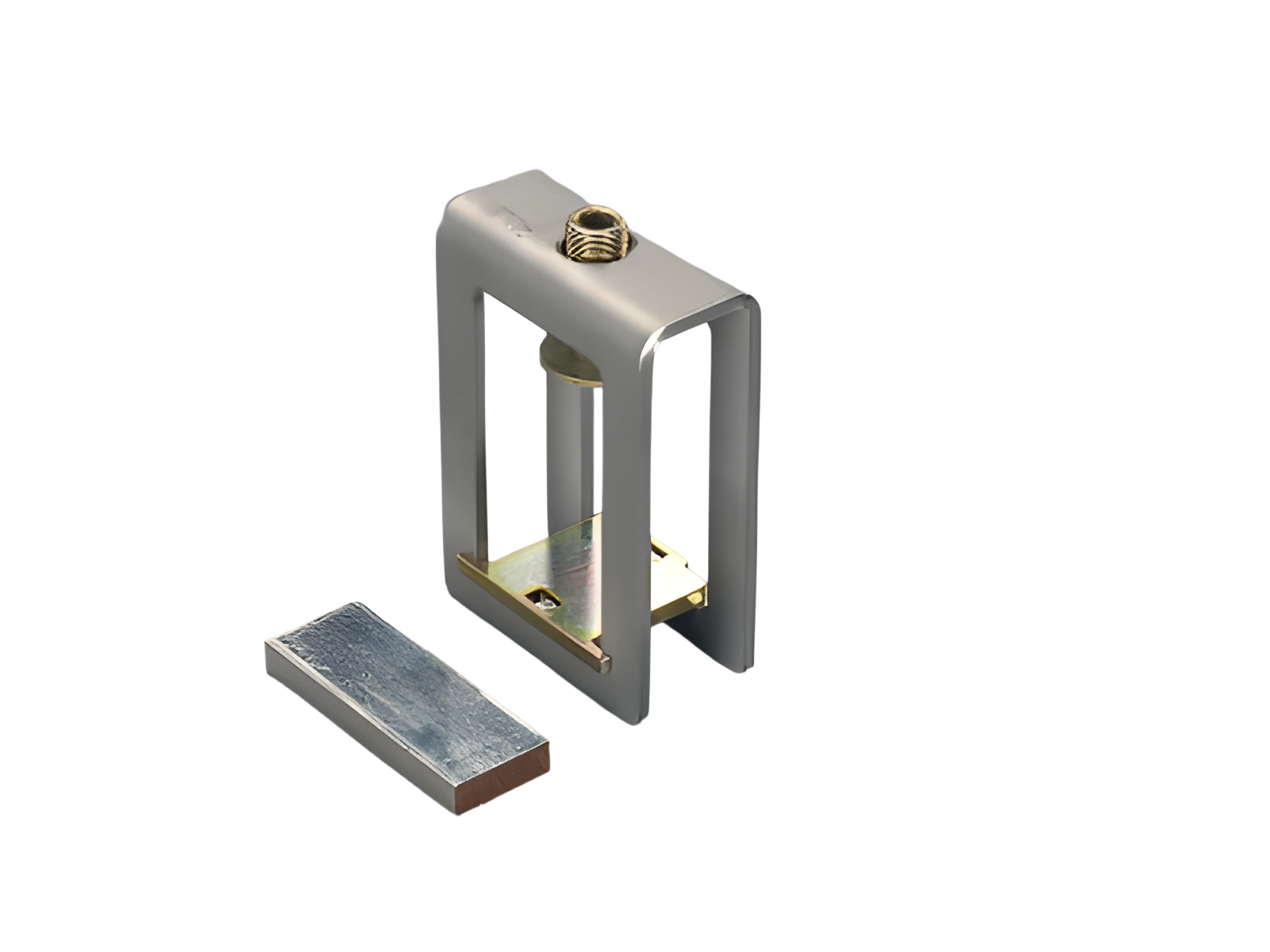

profile terminal (01936)

The picture may show a similar product.

Description

Part No.: 01936000

CRITO®

profile terminal

500 - 1000 mm²

terminal space 51 x 20-42

for busbars double-T section

System

60Classic, centre feed unit

Advantages of the product

also rigid copper busbars can be connected if they are installed without mechnical tension

Product group 07
Subgroup 30
pack size 3
EAN 4021267019365
ECLASS 6.1 27141146
ECLASS 7.1 27141146
ETIM 4.0 EC000001
ETIM 5.0 EC000001

Approvals

Standards

IEC 61439-1:2020

UL 508

Approvals

CSA , UL , DNV GL

type number: H51.2

UL file: E123577, UL category (for USA): NMTR2 https://www.ul.com

UL file: E123577, UL category (for Canada): NMTR8 https://www.ul.com

CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2020
Electrical data IEC
Rated current (IEC): 1600 A
rated voltage (IEC) AC: 690 V
rated peak withstand current  Ipk max.: 81.9 kA
Supplementary data IEC

The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel.
max. permitted voltage (IEC) AC: 1000 V
max. permitted voltage (IEC) DC: 1500 V
current carrying capacity for centre feed: 2’000 A
Details UL
Standards
UL 508
Electrical data UL
rated current (UL): 1200 A
rated voltage (UL) AC: 600 V
rated frequency (UL): 50 / 60 Hz
SCCR: 25 kA
Mechanical data
W x H x D: 82 x 45 x 118
weight: 73.5 kg/100
for busbars: double-T section

In order to comply with the required air section as per UL508a, a suitable shrouding must be used.

Terminal points
min. cross-section: 400 mm²
max. cross-section: 1’000 mm²
Terminal space: 51 x 20 - 42
Not suitable for aluminium cables !


terminal space 51 x 20-42
1 terminal screw M12

Application notes

Not suitable for aluminium cables !
The insulation performance of the article depends on the installation conditions.

Reference

3 terminals are needed for a 3-pole connection. Insert separators when connecting laminated copper busbars in parallel.

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| Mounting instructions

| CAD model 3D PDF

| CAD model 3D STP

| CAD symbol 2D DXF

| Data packet EPlan (*.edz)

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Accessories

01539000
cover cap, 3-pole
180 mm wide
180 x 200 x 90
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

01540000
cover cap, 3-pole
250 mm wide
250 x 200 x 90
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

01554000
compartment section, for 3-pole systems
front mounted, 1.10 m long, for holder 01136
3 x 190 x 1100
More

01555000
cover section
top / bottom, 1.10 m long, for holders 01136 or 01137
3 x 109 x 1100
More

01136000
set of holders for cover sections
for 3-pole busbar systems
set consisting of left and right holder, for covers 01554, 01555 and 01417
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

01417000
cover section
top / bottom, slotted, 1.10 m long, for holders 01136 or 01137
3 x 118 x 1100
More

Usage

01509000
flexible copper busbar, plain, insulated
10x 50 x 1
1244 A, length 2 m
More
