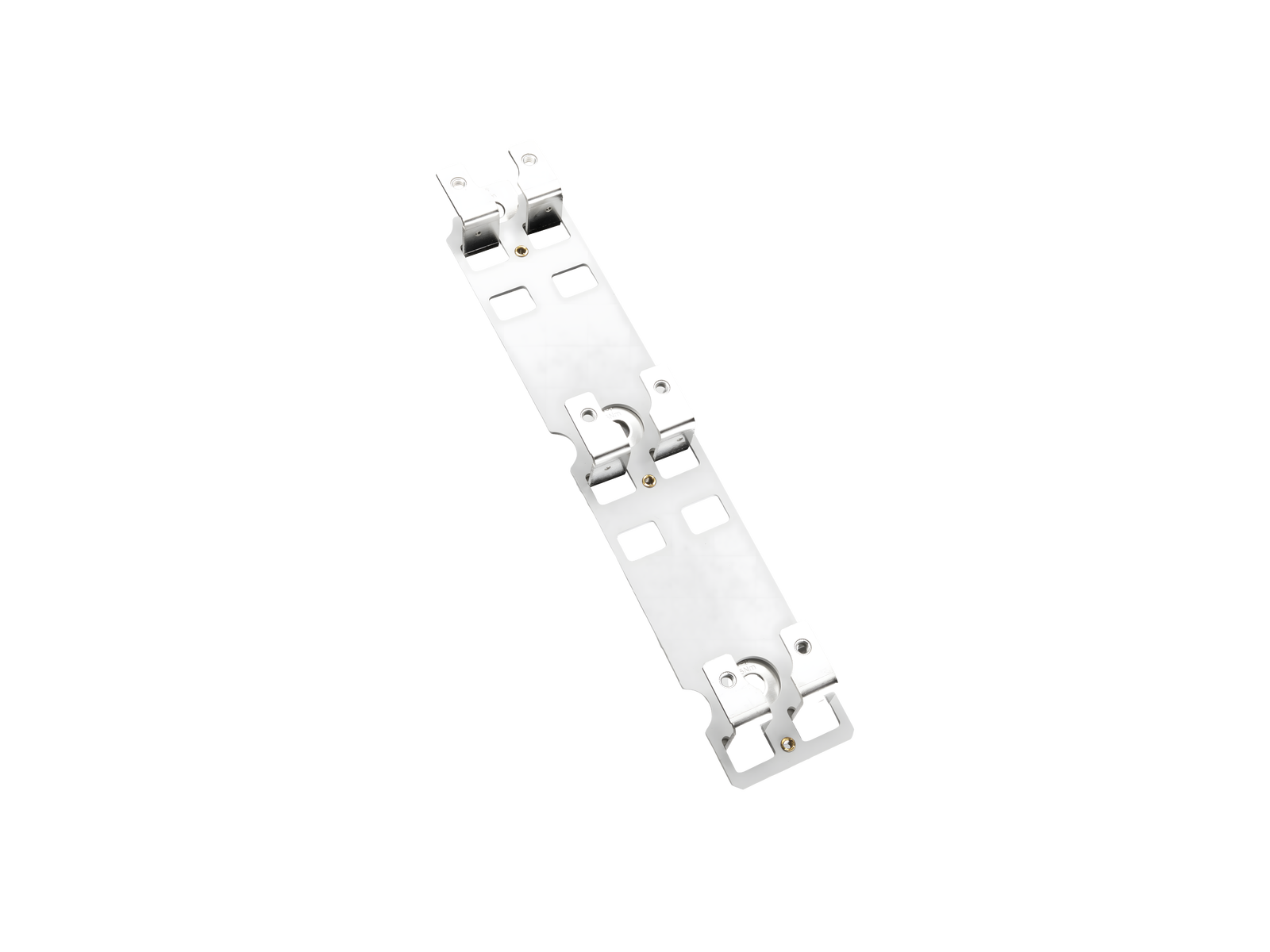

double adapter (33728)

The picture may show a similar product.

Description

Part No.: 33728000A

double adapter

for 2 devices size NH 00

for busbars 30, 40, 60, 80, 100, 120 x 10

System

185Power

Product group 12
Subgroup 70
pack size 1
EAN 4021267337285
ECLASS 6.1 27142190
ECLASS 7.1 27142190
ETIM 4.0 EC002498
ETIM 5.0 EC002498

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Technical data

Details IEC
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Mechanical data
W x H x D: 83 x 450 x 50
weight: 55,0 kg/100
for busbars: 30, 40, 60, 80, 100, 120 x 10
