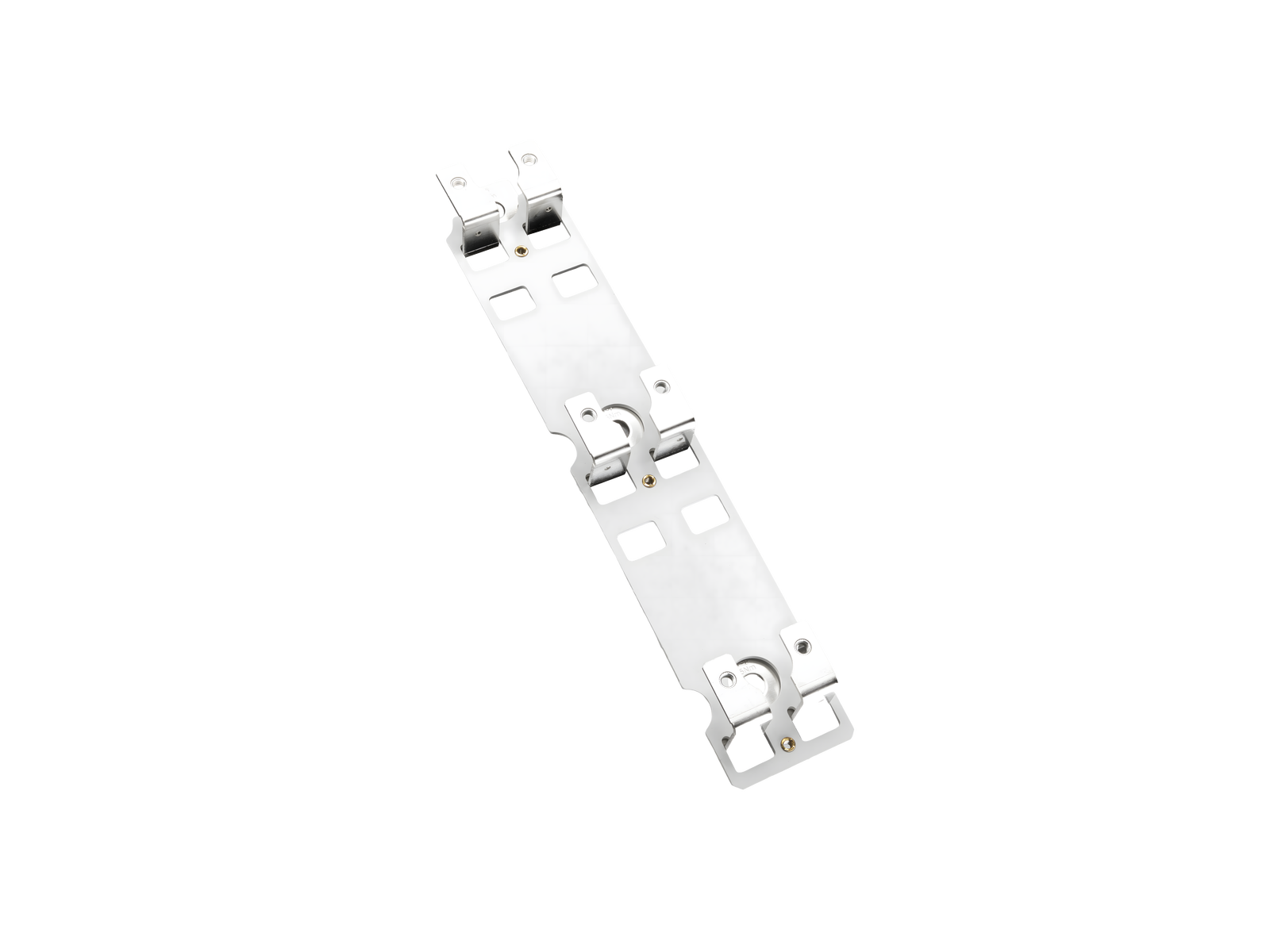

double adapter (33728)

The picture may show a similar product.

Description

Part No.: 33728000A

double adapter

for 2 devices size NH 00

for busbars 30, 40, 60, 80, 100, 120 x 10

System

185Power

Product group 12
Subgroup 70
pack size 1
EAN 4021267337285
ECLASS 6.1 27142190
ECLASS 7.1 27142190
ETIM 4.0 EC002498
ETIM 5.0 EC002498

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Technical data

Details IEC
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Mechanical data
W x H x D: 83 x 450 x 50
weight: 55.0 kg/100
for busbars: 30, 40, 60, 80, 100, 120 x 10

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| CAD model 3D PDF

| CAD model 3D STP

| CAD symbol 2D DXF

| Data packet EPlan (*.edz)

| Dimensioned drawing

| Dimensioned drawing  #2

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

| Text for specification - GAEB90 (in German) (*.d81)

Accessories

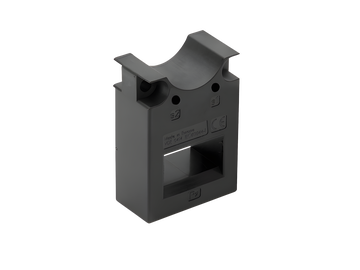

33744000
current transformer 150 A / 5 A
1.5 VA / class 1
size 1 - 3
More

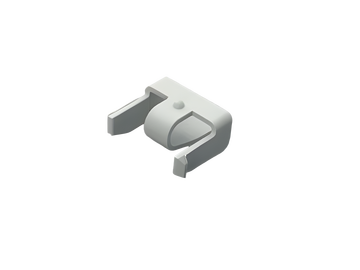

33300000
mounting clip for current transformator
for adapter SECUR®LeanStreamer
size 00
More

Usage

33724000A
QUADRON®185Power
in-line fuse switch-disconnector 160 A
Size 00, 3-pole switchable, with fuse monitoring
flat version with screw M8
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

33774000A
QUADRON®185Power
in-line fuse switch-disconnector 160 A
Size 00, 3-pole switchable, with fuse monitoring
flat version with box terminal 70 mm²
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

33704000A
QUADRON®185Power
in-line fuse switch-disconnector 160 A
Size 00, 3-pole switchable
flat version with screw M8
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

33773000A
QUADRON®185Power
in-line fuse switch-disconnector 160 A
Size 00, 3-pole switchable
flat version with box terminal 70 mm²
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

33719000A
QUADRON®185Power
in-line fuse switch-disconnector 160 A
Size 00, 1-pole switchable
flat version with screw M8
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

33775000A
QUADRON®185Power
in-line fuse switch-disconnector 160 A
Size 00, 1-pole switchable
flat version with box terminal 70 mm²
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

33705000A
QUADRON®185Power
NH in-line fuse base 160 A
Size 00, open design
screw M8, flat version
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

33615000A
QUADRON®185Power Speed
NH in-line switch-disconnector-fuse size 00
high version, connection bottom M8
screw connection
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
More

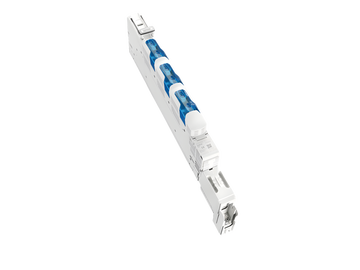

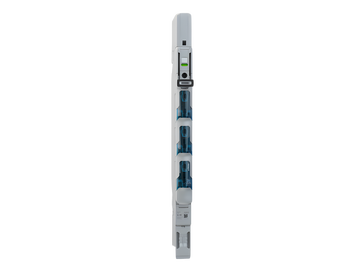

33611000A
QUADRON®185Power Speed
NH in-line switch-disconnector-fuse size 00
flat version, connection bottom M8
screw connection
double-breaking
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
More

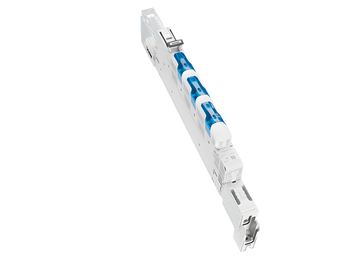

33621000A
QUADRON®185Power Speed
NH in-line switch-disconnector-fuse size 00
flat version, connection bottom M8
screw connection, with fuse monitoring
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
More

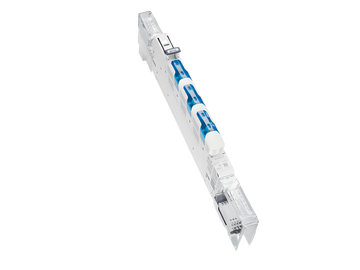

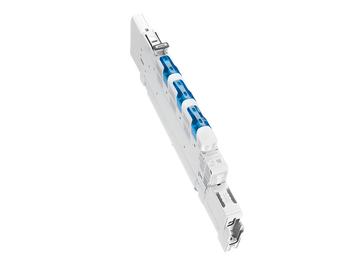

33623000A
QUADRON®185Power Speed
NH in-line switch-disconnector-fuse size 00
flat version, connection top M8
screw connection, with fuse monitoring
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
More

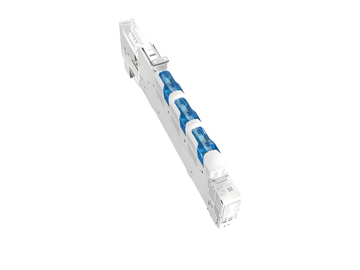

33617000A
QUADRON®185Power Speed
NH in-line switch-disconnector-fuse size 00
high version, connection top M8
screw connection
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
More

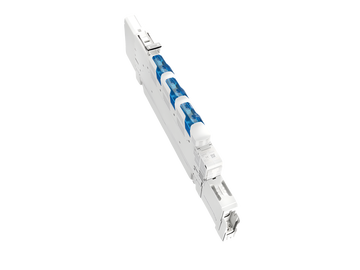

33613000A
QUADRON®185Power Speed
NH in-line switch-disconnector-fuse size 00
flat version, connection top M8
screw connection
double-breaking
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
More

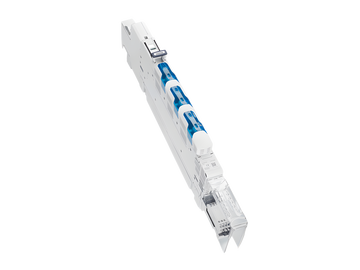

33627000A
QUADRON®185Power Speed
NH in-line switch-disconnector-fuse size 00
high version, connection top M8
tall version, outgoing terminals at the top, screw connection
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
More

33625000A
QUADRON®185Power Speed
NH in-line switch-disconnector-fuse size 00
high version, connection bottom M8
screw connection, with fuse monitoring
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
More
