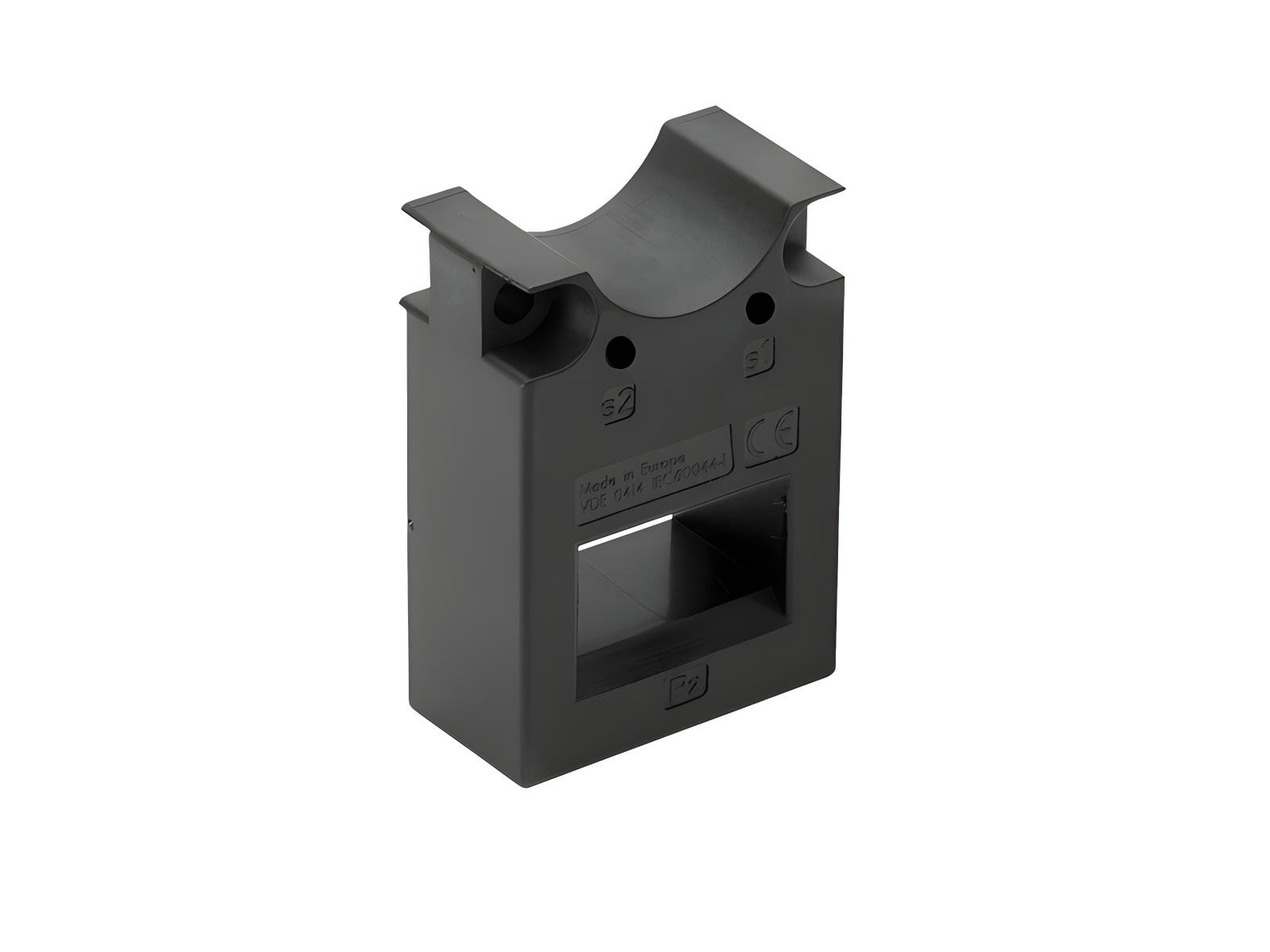

The picture may show a similar product.
Part No.: 33744000
current transformer 150 A / 5 A
1.5 VA / class 1
size 1 - 3
System
185Power
| Product group | 23 |
| Subgroup | 05 |
| pack size | 1 |
| EAN | 4021267337445 |
| ECLASS 6.1 | 27210902 |
| ECLASS 7.1 | 27210902 |
| ETIM 4.0 | EC002048 |
| ETIM 5.0 | EC002048 |
Standards
IEC 61869-1:2007
IEC 61869-2:2012
CCC approval: no certification required
| size: | CT3 |
| Details IEC | |
| Standards | |
|
IEC 61869-1:2007 IEC 61869-2:2012 |
| Electrical data IEC | |
| prim. rated current Ipr: | 150 A |
| sec. rated current: | 5 A |
| sec. rated apparent power: | 1.5 VA |
| accuracy class (current): | 1 |
| max. operation voltage Um: | 720 V |
| therm. short-time current Ith: | 9 kA |
| class of insulation: | B |
| over-current limitation factor: | FS5 |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 1,0 W.
(The power dissipation at full load would be 1,5 W.)
| Mechanical data | |
| W x H x D: | 49 x 27 x 70 |
| weight: | 14,0 kg/100 |
| sealable: | nein |
| Terminal points | |
| with leads | |
| 2,5 mm² / 1,50 m | |
