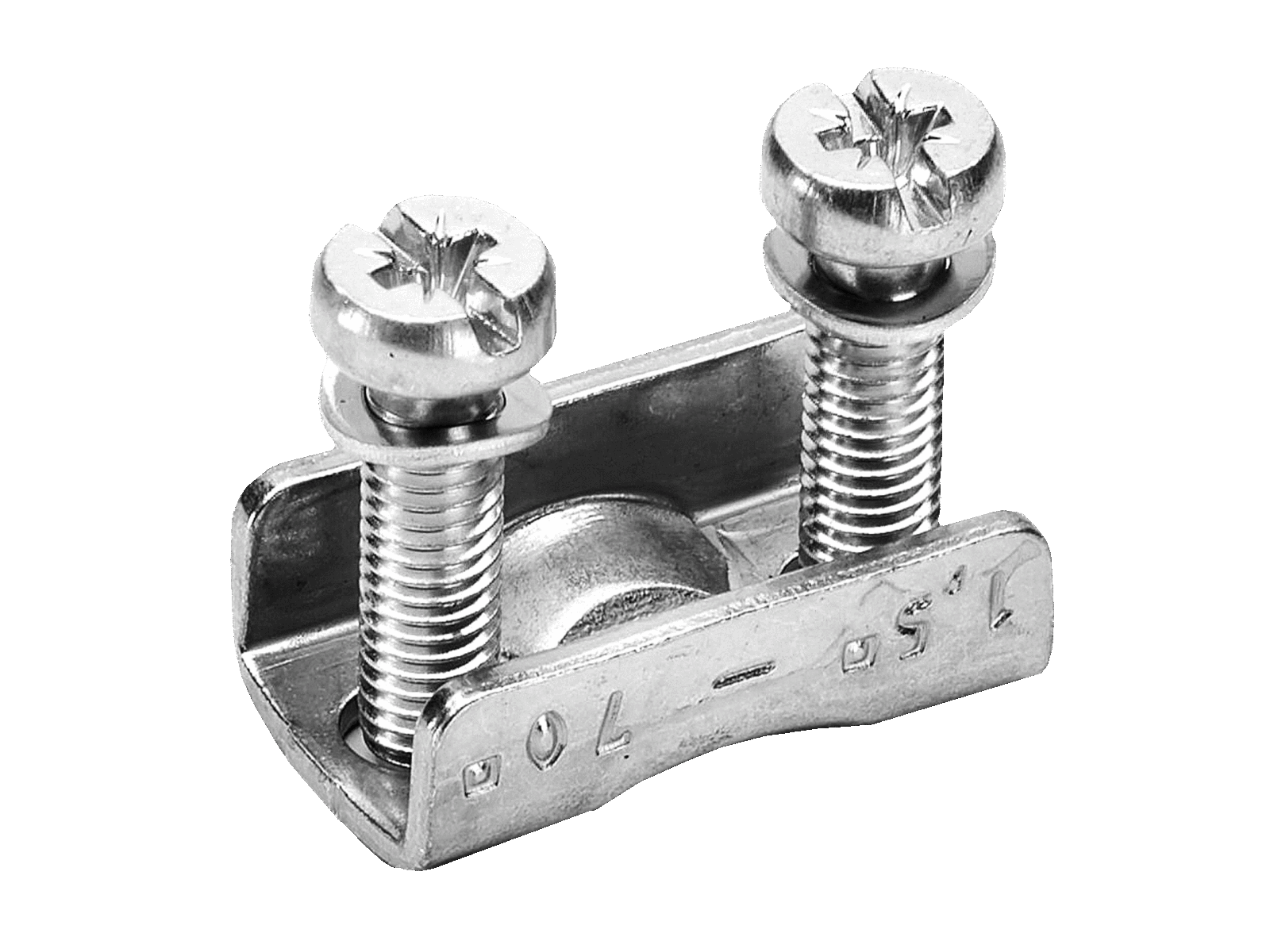

Obrázek může zobrazovat podobný produkt.
Part No.: 03727 000
třmenová svorka
1.5 - 70 mm²
velikost 00
System
60Classic
| Produktová skupina | 09 |
| Podskupina | 51 |
| velikost balení | 3 |
| EAN | 4021267037277 |
| ECLASS 14.0 | 27142190 |
| ETIM 5.0 | EC002498 |
| ETIM 8.0 | EC002498 |
| ETIM 10.0 | EC002498 |
Standardy
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
EAC Type: AC-A
| Detaily IEC | |
| Standardy | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
Elektrické údaje
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 0,0 W.
(The power dissipation at full load would be 0,0 W.)
| Mechanické údaje | |
| Š x V x H: | 26 x 15 x 8 |
| hmotnost: | 1,5 kg/100 |
| Terminal points | |
| min. cross-section: | 1,5 mm² |
| max. cross-section: | 70 mm² |
| rm: | 1.5 - 70 mm² |
| f + AE: | 1.5 - 70 mm² |
| (f + AE may not fit with max. cross-section) | |
| Md min.: | 2,4 Nm |
| Md max.: | 3,6 Nm |
| Not suitable for aluminium cables ! | |
| lam. Cu width: | 9 - 12 mm |
| lam. Cu thickness: | 1 - 10 mm |
| Vlastnosti materiálu | |
| halogen-free: | Yes |
| Not suitable for aluminium cables ! | |
|
determined by main product |
|
