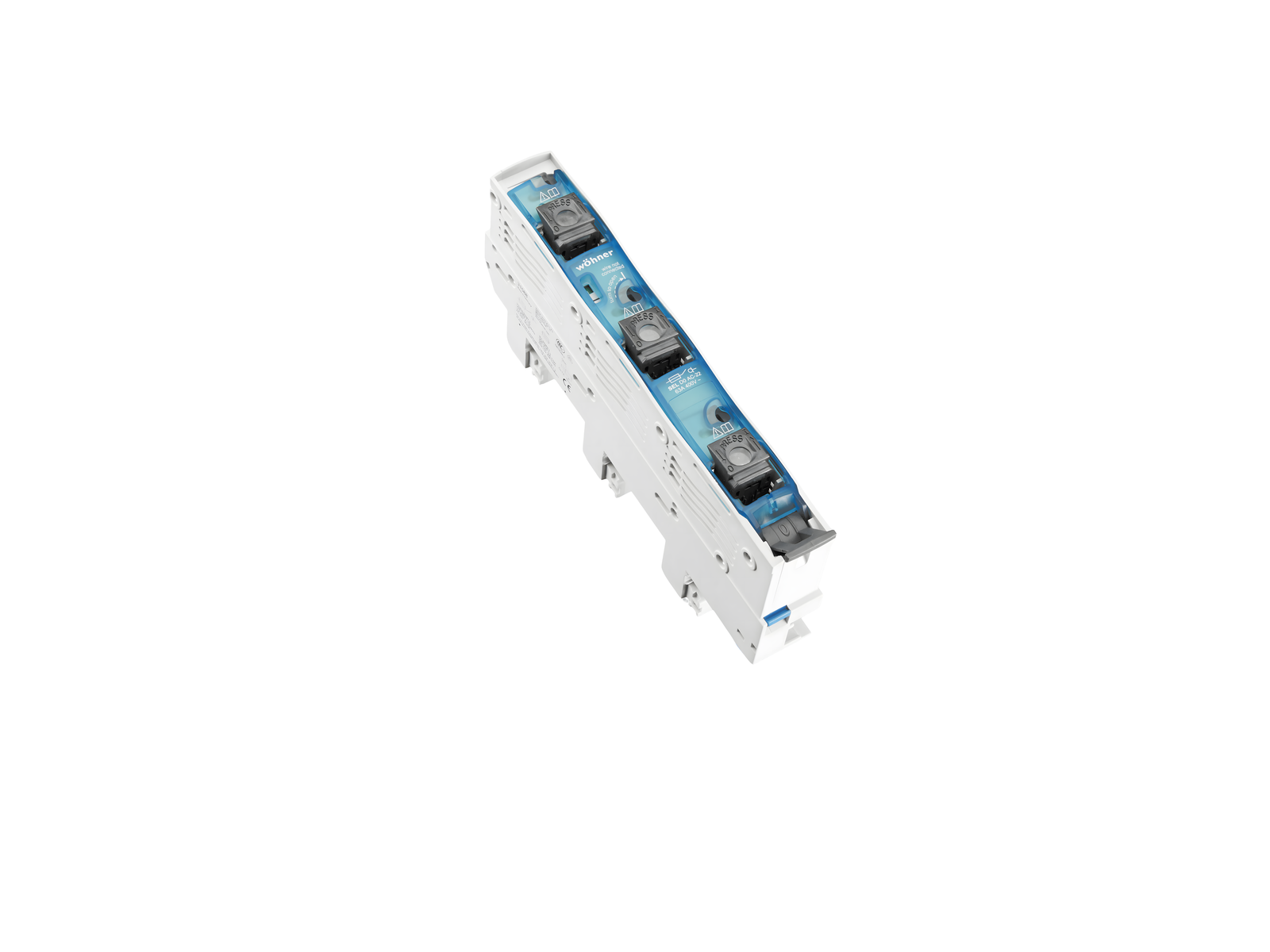

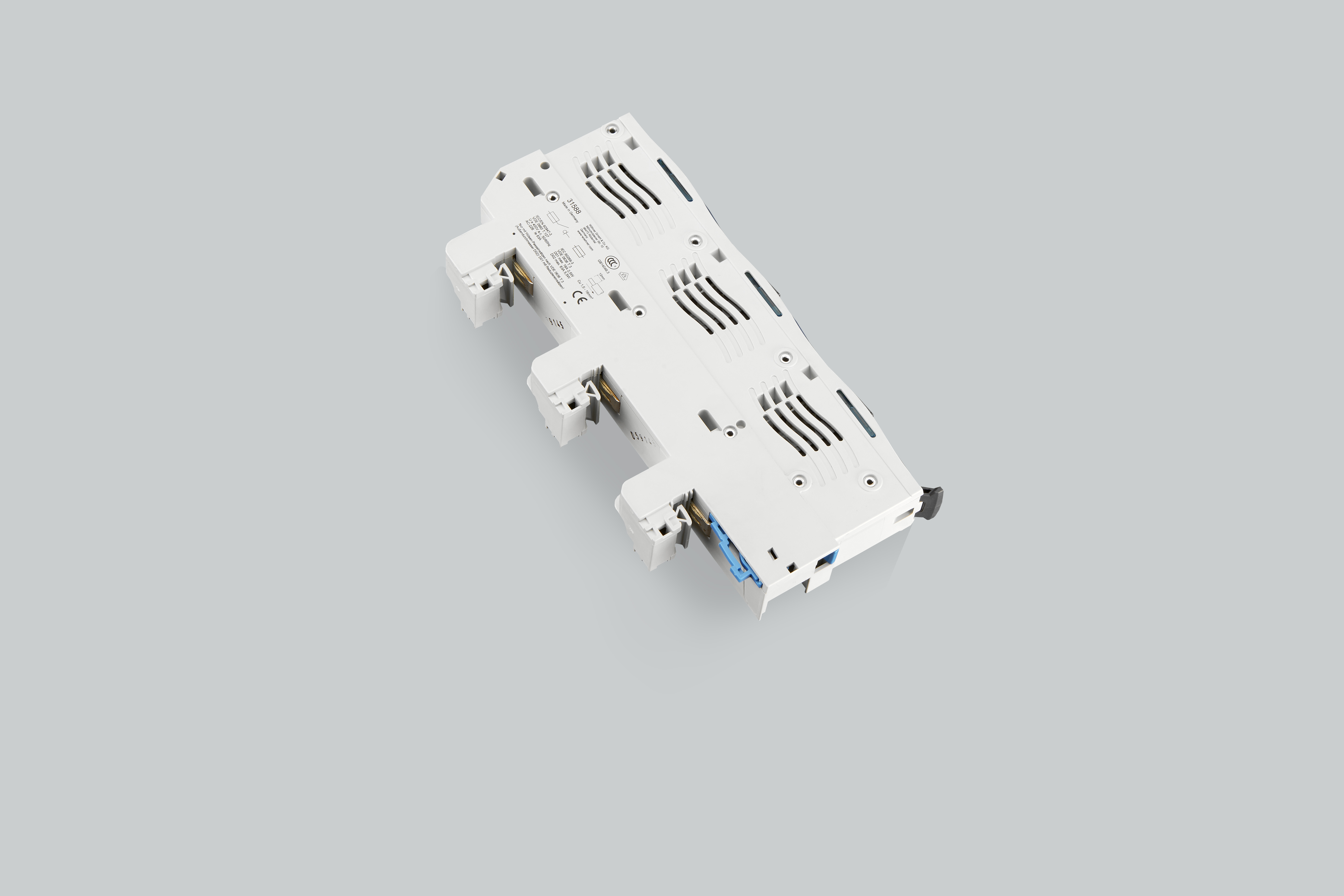

Obrázek může zobrazovat podobný produkt.
Part No.: 31588 000A
SECUR 60Classic EasyLiner
D0 pojistkový odpínač, pro 5-pólový systém
pro pojistky D01 a D02, pro systém přípojnic 250 A, 400 A a 630 A firmy Hensel
63 A / 3P
operator independent switching (snap-action mechanism)
připojení zdola
pro přípojnici 12, 20, 30 x 5, 10
System
60Classic
Advantages of the product
spring terminal enables connection without tools (at first installation)
| Produktová skupina | 01 |
| Podskupina | 42 |
| velikost balení | 1 |
| EAN | 4021267315887 |
| ECLASS 14.0 | 27142110 |
| ETIM 5.0 | EC000277 |
| ETIM 8.0 | EC000277 |
| ETIM 10.0 | EC000277 |
Standardy
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Schválení dle norem
IEC (CB) , VDE , CCC
typové číslo: SEL
EAC Type: D0
CCC certificate: 2014010302710123
| pro velikost pojistek: | D0 |
| pojistková vložka podle na standardu: | IEC / HD 60269-3 |
| povolené rozptylování energie pojistkové vložky: | 5,5 W |
| requirements for contact parts: | use fuse links with silver-plated contacts |
| Detaily IEC | |
| Standardy | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
| Elektrické údaje IEC | |
| Jmenovitý proud (IEC): | 63 A |
| jmenovité napětí (IEC) AC: | 400 V |
| jmenovitá frekvence (IEC): | 50 / 60 Hz |
| jmenovité izolační napětí Ui AC: | 500 V |
| jmenovité přepětí Uimp : | 6 kV |
| Utilisation category AC (IEC 60947-3) : | AC-22B (400 V) |
| kond. zkratový proud s pojistkami (AC): | 50 kA / 400 V |
| schváleno s pojistkovými vložkami dané třídy: | gG |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 4,5 W.
(The power dissipation at full load would be 7,0 W.)
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such. |
| min. permitted operation temperature | -25°C |
| max. permitted operation temperature | 55°C |
| min. permitted temperature for transport and storage | -25°C |
| reduction factor at ambient temperature: 35°C 1,0 45°C 0,9 55°C 0,8 |
|
| for fuse links and gauge elements acc. to IEC / HD 60269-3 use of D02 fuse links with silver plated caps is recommended |
|
The function of isolation between incoming and outgoing contacts is provided by the opening of the switching mechanism as required in the standard. |
| Mechanické údaje | |
| Š x V x H: | 27 x 200 x 80 |
| hmotnost: | 33,0 kg/100 |
| póly: | 3-pólový |
| pro přípojnici: | 12, 20, 30 x 5, 10 |
| čelní stupeň ochrany: | IP20 |
| Terminal points | |
| spring pulley connection | |
| screw drive: | PZ2 |
| wire stripping: | 12 mm |
| min. cross-section: | 1,5 mm² |
| max. cross-section: | 16 mm² |
| Md min.: | 2,5 Nm |
| Md max.: | 3,0 Nm |
| Not suitable for aluminium cables ! | |
|
1,5 - 16 mm² round stranded and flexible without wire-end ferrule |
|
| Vlastnosti materiálu | |
| Material: | Plastic |
| halogen-free: | Yes |
| Not suitable for aluminium cables ! | |
| A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such. | |
|
The devices have to be equipped with D0 gauge rings. Together with reducer part no. 31902 also suitable for fuse links D01. |
|
| povolené rozptylování energie pojistkové vložky: | 5,5 W |
| requirements for contact parts: | use fuse links with silver-plated contacts |
