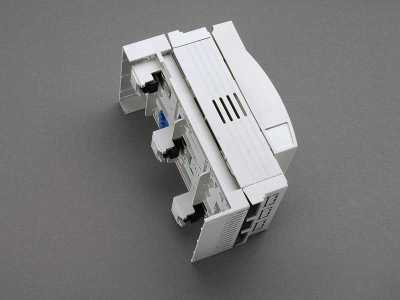

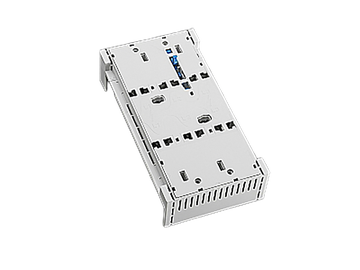

Obrázek může zobrazovat podobný produkt.
Part No.: 33398 000

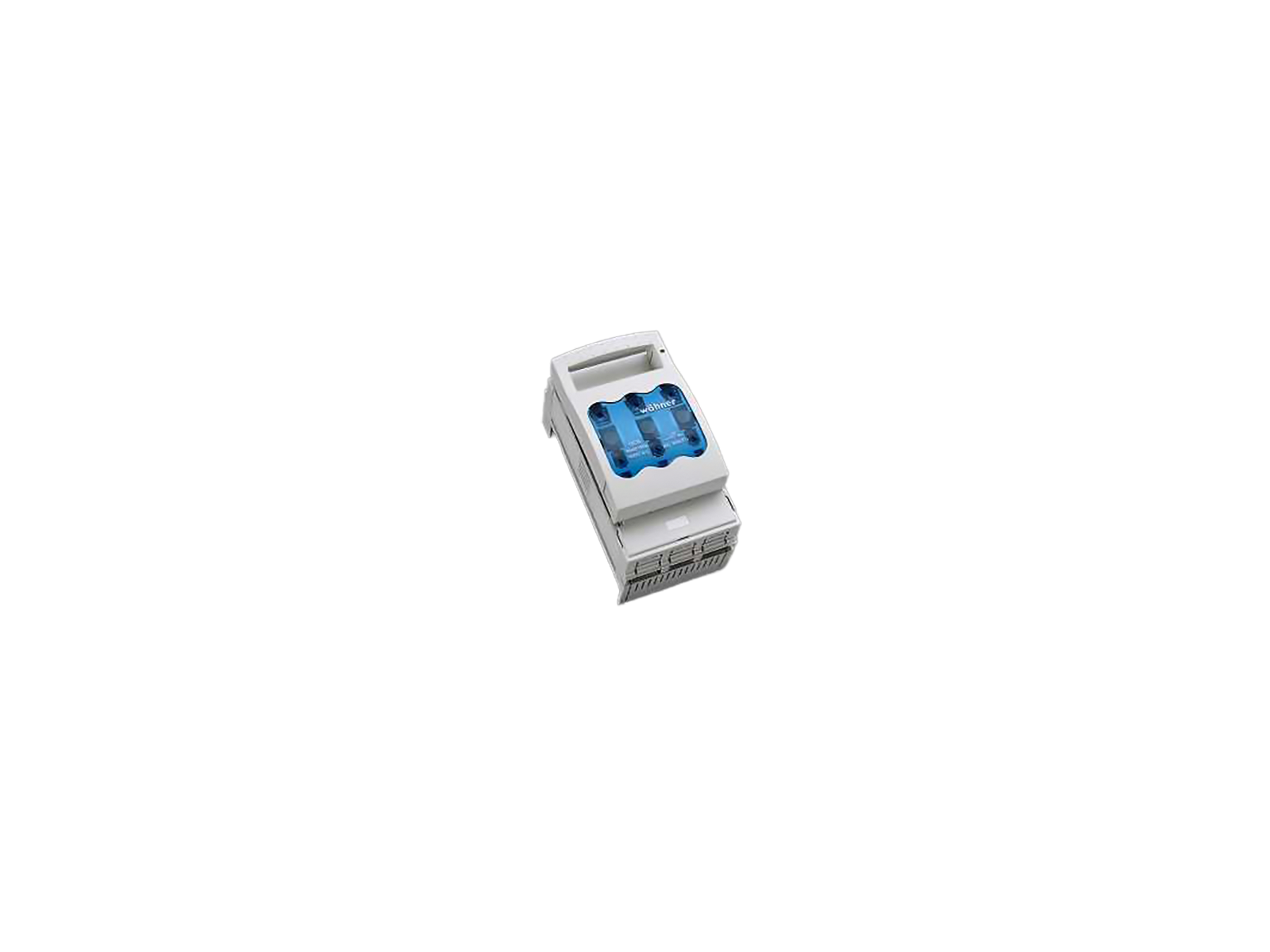

QUADRON 60Classic
NH pojistkový odpínač velikost 00, 160 A, montáž na přípojnici, připojení horní / spodní
šroub M8
připojení shora nebo zdola
pro přípojnici 12, 15, 20, 25, 30 x 5, 10 a profilové přípojnice
s CrossLink®Technology
System
60Classic
Advantages of the product
CrossLink® adapter technology
Fast and safe conversion of the connection for top or bottom; the parts under voltage remain shock protected
Simple and safe clicking into place and making contact
Safe connection through shock protection split into 2
Busbar supports for flat busbars can be mounted above each other
| Produktová skupina | 09 |
| Podskupina | 24 |
| velikost balení | 1 |
| EAN | 4021267333980 |
| ECLASS 14.0 | 27142108 |
| ETIM 5.0 | EC001040 |
| ETIM 8.0 | EC001040 |
| ETIM 10.0 | EC001040 |
Standardy
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
UL 4248-1
Schválení dle norem
IEC (CB) , UL , VDE , CCC , DNV GL
for UL feeder circuits >250V
typové číslo: QCB-NH00
EAC Type: NH
| pro velikost pojistek: | NH 000, NH 00 |
| pojistková vložka podle na standardu: | IEC / HD 60269-2 |
| povolené rozptylování energie pojistkové vložky: | 12 W |
| requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
| Detaily IEC | |
| Standardy | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
| Elektrické údaje IEC | |
| Jmenovitý proud (IEC): | 160 A |
| jmenovité napětí (IEC) AC: | 690 V |
| jmenovité napětí (IEC) DC: | 440 V |
| jmenovité izolační napětí Ui AC: | 800 V |
| jmenovité izolační napětí Ui DC: | 500 V |
| jmenovité přepětí Uimp : | 6 kV |
| Utilisation category AC (IEC 60947-3) : | AC-22B 500V 160A AC-22B 690V 125A AC-23B 500V 125A AC-23B 400V 160A |
| kond. zkratový proud s pojistkami (AC): | 50 kA / 690 V |
| 80 kA / 500 V (160 A) | |
| schváleno s pojistkovými vložkami dané třídy: | gG |
| jmenovitá krátkodobá výdrž proudu I cw (1,0 s) max.: | 5 kA |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 11,3 W.
(The power dissipation at full load would be 17,7 W.)
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| max. povolené napětí (IEC) DC: | 800 V |
| further utilisation category DC (IEC 60947-3): | DC specifications: 2 current paths (L1,L3) in series DC-21B (220V) DC-21B (440V/100A) DC-22B (220V/63A) DC-20B (1000V) at pollution degree 2 visible information required if used at more than 440V DC: do not switch under load |
| A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such. |
| min. permitted operation temperature | -40°C |
| max. permitted operation temperature | 55°C |
| In accordance with the specified AC and DC switching properties and in consideration of the overload conditions, certain distances to earthed metal parts are to be adhered to. detailed information upon inquiry When several devices are used side-by-side in continuous operation, the rated load factor specified in IEC / EN 61439-1, Table 1, must be observed. |
|
| System component: degree of protection IP30 at front as per DIN EN 60529, degree of protection near terminal depends on installation adapter module: front side degree of protection IP20 as per DIN EN 60529 (finger-safe) |
| Detaily UL | |
| Standardy | |
| UL 4248-1 |
| for UL feeder circuits >250V |
| Elektrické údaje UL | |
| jmenovitý proud (UL): | 160 A |
| jmenovité napětí (UL) AC: | 600 V |
| jmenovitá frekvence (UL): | 50 / 60 Hz |
| SCCR: | 100 kA |
| Mechanické údaje | |
| Š x V x H: | 106 x 200 x 97 |
| hmotnost: | 103,0 kg/100 |
| póly: | 3-pólový |
| pro přípojnici: | 12, 15, 20, 25, 30 x 5, 10 a profilové přípojnice |
| čelní stupeň ochrany: | IP30 |
Busbar connector: externally tensioned contacting, convenient click mechanism, simple conversion of the combination bases from 5 to 10mm-thick busbars
| Terminal points | |
| screw connection | |
| M8 | |
| screw drive: | SW13 |
| Md min.: | 8,0 Nm |
| Md max.: | 10,0 Nm |
|
Suitable for aluminium cables. When using aluminium cables, observe the maintenance instructions. |
|
| Vlastnosti materiálu | |
| halogen-free: | No |
| Suitable for aluminium cables. When using aluminium cables, observe the maintenance instructions. |
|
|
based on the AC and DC switching capacities and considering the overload conditions as given in the above mentioned standards the following distances to earthed metal parts have to be respected: |
|
| požadovaná mezera zhora: | 30 mm |
| požadované mezery po stranách: | 15 mm |
| A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such. | |
| povolené rozptylování energie pojistkové vložky: | 12 W |
| requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
| for UL feeder circuits >250V | |
