Référence 33398000
QUADRON®60Classic

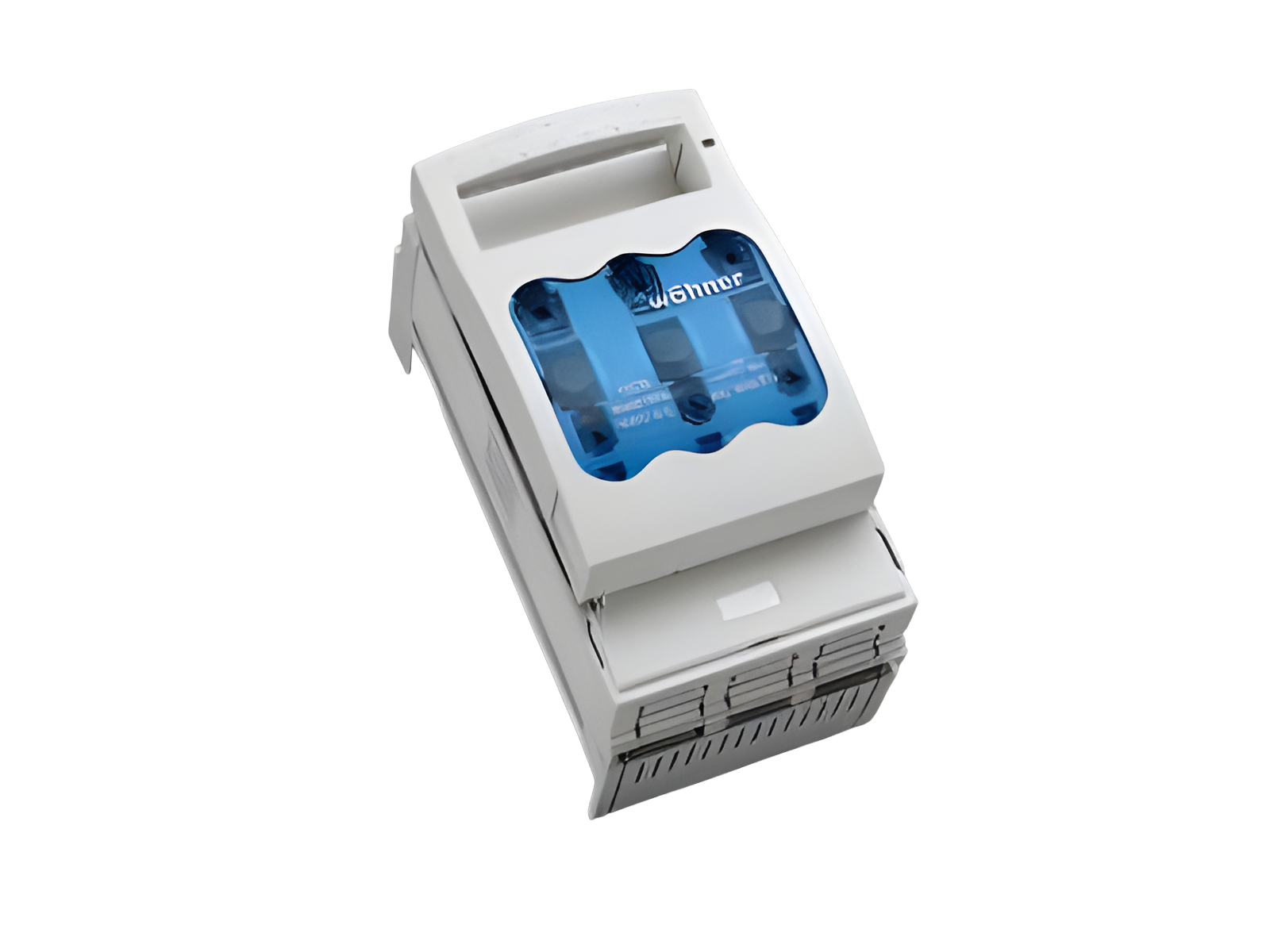

sectionneur à fusible NH taille 00, 160 A, monté sur rail, raccordement par le haut / par le bas
vis M8
raccordement par le haut ou par le bas
pour jeux de barres 12, 15, 20, 25, 30 x 5, 10 et barres profilées
avec CrossLink®Technology
Système
60Classic
Avantages produit
CrossLink® adapter technology
Fast and safe conversion of the connection for top or bottom; the parts under voltage remain shock protected
Simple and safe clicking into place and making contact
Safe connection through shock protection split into 2
Busbar supports for flat busbars can be mounted above each other
| Groupe de produits | 09 |
| Sous-groupe | 24 |
| Dimensions de l'emballage | 1 |
| EAN | 4021267333980 |
| ECLASS 6.1 | 27142108 |
| ECLASS 7.1 | 27142108 |
| ETIM 4.0 | EC001040 |
| ETIM 5.0 | EC001040 |
Normes
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
UL 4248-1
Approbations
IEC (CB) , UL , VDE , CCC , DNV GL
for UL feeder circuits >250V
Type: QCB-NH00
| for fuse links size: | NH 000, NH 00 |
| fuse links acc. to standard: | IEC / HD 60269-2 |
| permitted power dissipation of the fuse-link: | 12 W |
| requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
| Details IEC | |
| Normes | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
| Electrical data IEC | |
| Courant assigné (IEC): | 160 A |
| Tension assignée (IEC) CA: | 690 V |
| Tension assignée (IEC) CC: | 440 V |
| rated isolation voltage Ui AC: | 800 V |
| rated isolation voltage Ui DC: | 500 V |
| Tension assignée de tenue aux chocs Uimp: | 6 kV |
| Catégorie d'emploi CA: | AC-21B (690V) AC-22B (500V) AC-20B (1000V) at pollution degree 2 visible information required if used at more than 690V AC: do not switch under load |
| Catégorie d'emploi CC: | DC specifications: 2 current paths (L1,L3) in series DC-21B (220V) DC-21B (440V/100A) DC-22B (220V/63A) DC-20B (1000V) at pollution degree 2 visible information required if used at more than 440V DC: do not switch under load |
| cond. short-circuit current with fuses (AC): | 50 kA / 690 V |
| 80 kA / 500 V (160 A) | |
| approved wth fuse links of operation class: | gG |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 11,3 W.
(The power dissipation at full load would be 17,7 W.)
| Supplementary data IEC | |
|
Les valeurs suivantes ont été vérifiées par des tests sous certaines conditions. Veuillez demander ces conditions à Wöhner avant de concevoir votre armoire. |
| Tension maximale IEC CC: | 800 V |
| Les unités de commutation à fusibles conformes à la norme IEC 60947-3 ne peuvent fonctionner au-delà de la tension de service nominale que si elles sont utilisées comme sectionneurs à fusible sans fonction de commutation de charge et cela jusqu'à la tension d'isolement assignée et sont marquées en conséquence. |
| In accordance with the specified AC and DC switching properties and in consideration of the overload conditions, certain distances to earthed metal parts are to be adhered to. detailed information upon inquiry When several devices are used side-by-side in continuous operation, the rated load factor specified in IEC / EN 61439-1, Table 1, must be observed. |
|
| System component: degree of protection IP30 at front as per DIN EN 60529, degree of protection near terminal depends on installation adapter module: front side degree of protection IP20 as per DIN EN 60529 (finger-safe) |
| Details UL | |
| Normes | |
| UL 4248-1 |
| for UL feeder circuits >250V |
| Electrical data UL | |
| rated current (UL): | 160 A |
| rated voltage (UL) AC: | 600 V |
| rated frequency (UL): | 50 / 60 Hz |
| Icc: | 100 kA |
| Charactéristiques mécaniques | |
| L x H x P: | 106 x 200 x 97 |
| Poids: | 103,0 kg/100 |
| Pôles: | 3 pôles |
| pour jeux de barres: | 12, 15, 20, 25, 30 x 5, 10 et barres profilées |
| front degree of protection: | IP30 |
Busbar connector: externally tensioned contacting, convenient click mechanism, simple conversion of the combination bases from 5 to 10mm-thick busbars
| Points de raccordement | |
| screw connection | |
| M8 | |
| screw drive: | SW13 |
| Md min.: | 8,0 Nm |
| Md max.: | 10,0 Nm |
| Not suitable for aluminium cables ! | |
| Not suitable for aluminium cables ! | |
| Les unités de commutation à fusibles conformes à la norme IEC 60947-3 ne peuvent fonctionner au-delà de la tension de service nominale que si elles sont utilisées comme sectionneurs à fusible sans fonction de commutation de charge et cela jusqu'à la tension d'isolement assignée et sont marquées en conséquence. | |
| permitted power dissipation of the fuse-link: | 12 W |
| requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
| for UL feeder circuits >250V | |
