for UL feeder circuits >250V
Obrázek může zobrazovat podobný produkt.
Part No.: 01593 000A

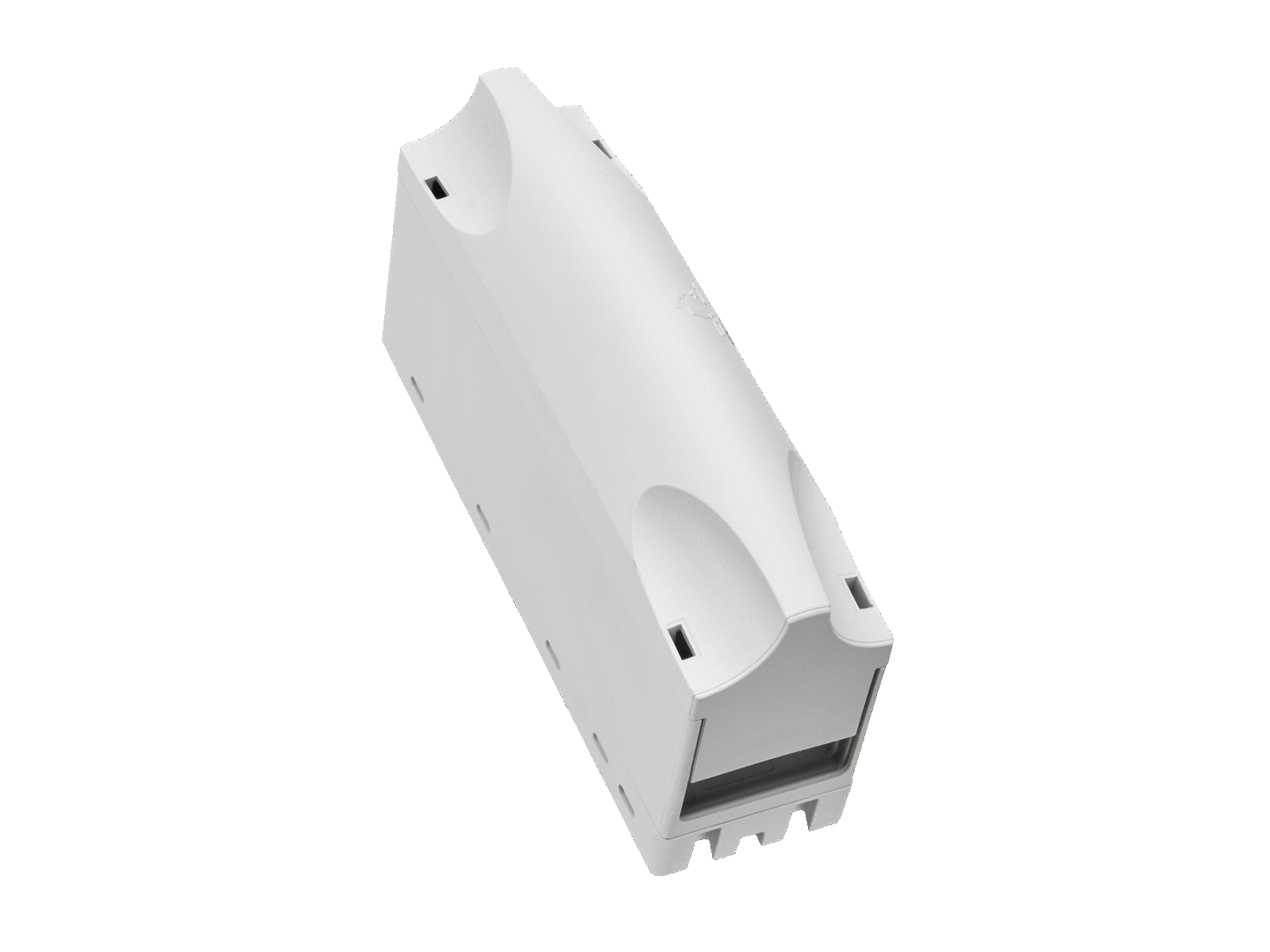

CRITO CrossBoard
přípojovací modul
s rámovou svorkou 6 - 50 mm² / AWG 10 - AWG 1
3-pólová
System
CrossBoard 125A / 250A, CrossBoard 800 A
Advantages of the product
direct connection to the CrossBoard, cover included
capable of feeding (up to 125 A) 1 or 2 CrossBoards simultaneously with balanced or unbalanced load on the boards.
can be used without cables as a bridge connection between 2 CrossBoards up to 125 A. Feeding a third CrossBoard with cables is acceptable, but the total current cannot exceed 125 A.
touch-safe
CRITO® unlockable from top or bottom
| Produktová skupina | 07 |
| Podskupina | 42 |
| velikost balení | 1 |
| EAN | 4021267015930 |
| ECLASS 14.0 | 27250116 |
| ETIM 5.0 | EC000001 |
| ETIM 8.0 | EC000001 |
| ETIM 10.0 | EC000001 |
Standardy
IEC 61439-1:2020
IEC 60999-1:1999
IEC 60999-2:2003
UL 508
Schválení dle norem
UL
for UL feeder circuits >250V
typové číslo: CR45-A
EAC Type: TE-M
UL file: E123577, UL category (for USA): NMTR https://www.ul.com
UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
CCC schválení: certifikace není vyžadována
| Detaily IEC | |
| Standardy | |
|
IEC 61439-1:2020 IEC 60999-1:1999 IEC 60999-2:2003 |
| Elektrické údaje IEC | |
| Jmenovitý proud (IEC): | 125 A |
| jmenovité napětí (IEC) AC: | 690 V |
| jmenovité izolační napětí Ui AC: | 800 V |
| jmenovitá proudová špičková výdrž Ipk max.: | 15 kA |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 6,0 W.
(The power dissipation at full load would be 9,3 W.)
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| max. povolené napětí (IEC) AC: | 800 V |
| max. povolené napětí (IEC) DC: | 800 V |
| current capacity (IEC) max. of the terminal: | 125 A |
| Detaily UL | |
| Standardy | |
| UL 508 |
| for UL feeder circuits >250V | |
| suitable for field-installed conductors |
| Elektrické údaje UL | |
| jmenovitý proud (UL): | 100 A |
| jmenovité napětí (UL) AC: | 600 V |
| jmenovitá frekvence (UL): | 50 / 60 Hz |
| SCCR unprotected max.: | 10 kA |
| 3 cycles (without OPD) @ 600 V AC | |
| SCCR protected max.: | 100 kA |
| SCCR: |
65 kA with any DIVQ/7 circuit breaker 125 A / 600 V AC
100 kA with JDDZ fuse Class J 175 A / 600 V AC 100 kA with any DIVQ/7 circuit breaker 125 A / 480 V AC |
| Mechanické údaje | |
| Š x V x H: | 45 x 160 x 92 |
| hmotnost: | 31,7 kg/100 |
| póly: | 3-pólový |
| čelní stupeň ochrany: | IP20 |
| Terminal points | |
| cage clamp connection | |
| screw drive: | S4 |
| wire stripping: | 17 mm |
| min. cross-section: | 6 mm² |
| max. cross-section: | 50 mm² |
| Md min.: | 5,0 Nm |
| Md max.: | 6,0 Nm |
| min. cross-section UL: | AWG 10 |
| max. cross-section UL: | AWG 1 |
| točivý moment (UL): | 44 - 53 lb-in |
|
6 - 50 mm² / AWG 10 - AWG 1 (feindrähtig mit Aderendhülse eventuell nicht mit maximalen Querschnitt möglich) |
|
| Vlastnosti materiálu | |
| halogen-free: | Yes |
| The insulation performance of the article depends on the installation conditions. | |
| for UL feeder circuits >250V |
01604
000A
dotykový ochranný kryt IP20
for connection module 01593
